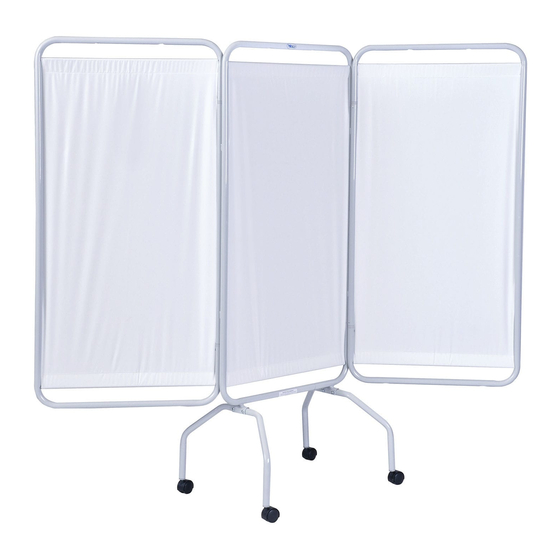

Winco Privess Basic 3130 Customer Instructions

PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions, contact your dealer or Winco customer support at
(800) 237-3377 before attempting to use this product; otherwise injury may occur.
Winco assumes no responsibility for damage or injury caused by the improper assembly, installation
TO REDUCE THE RISK OF SEVERE INJURY OR DEATH TO PERSONS:
1. READ AND FOLLOW ALL DIRECTIONS.
2. NEVER place screen on a cart, table, stand or other objects; Screen could fall and SERIOUS INJURY MAY
OCCUR.
3. NEVER place screen near open flame or over a radiator or heat register.
4. NEVER place screen in front of a door; In case of emergency screen could block or hinder evacuation.
5. SUFFOCATION DANGER to children if vinyl is not attached to screen; Screen could block nose and mouth and
prevent breathing. VINYL SCREEN IS NOT A TOY.
6. DO NOT allow children to play with screen; Screen could fall and SERIOUS INJURY MAY OCCUR.
7. Periodically, recheck tightness of all nuts, bolts and screws.
8. Screen should ALWAYS be positioned on level surface.
9. NEVER stand or ride on screen legs; SERIOUS INJURY MAY OCCUR.
10. DO NOT use screen in or with ANY type of vehicle or trailer.
11. DO NOT attach objects to screen frame; Screen can tip over and SERIOUS INJURY MAY OCCUR.
12. Immediately remove from service; Any screen with broken or missing parts, torn vinyl, or other visible damage.
13. USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
14. SAVE THESE INSTRUCTIONS for future reference and training.
Tools needed:
•
Phillips-Head Screwdriver
•
7/16" wrench, adjustable wrench, or 7/16" socket & ratchet wrench
•
Scissors or box cutter
•
If using powered tools always start hardware together by hand first
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
1. Insert caster inserts into ends of screen legs. (This is done for crutch tip or caster installation)
2. You must choose either casters or crutch tips for your screen – both are provided to you. Casters must be inserted
into the caster inserts. Crutch tips (only available with 3130 model) must be installed over the ends of the legs.
LEG INSTALLATION
3. Install legs on mainframe using (4) ¼" x 1-1/2" Phillips head screws and locknuts.
NOTE: Make sure the legs are installed so that the bends of the legs face the outside of the frame. This is
necessary to provide the maximum footprint.
4. Use your Phillips head screwdriver and 7/16" wrench to tighten. Bolts must fit snugly into holes for secure leg mount.
5. Verify that your screen is level and straight. If necessary, the legs can be slightly bent so that all legs touch the floor
and screen stands straight.
or use of these products.
Page 1 of 4
