C300HD Installation Guide

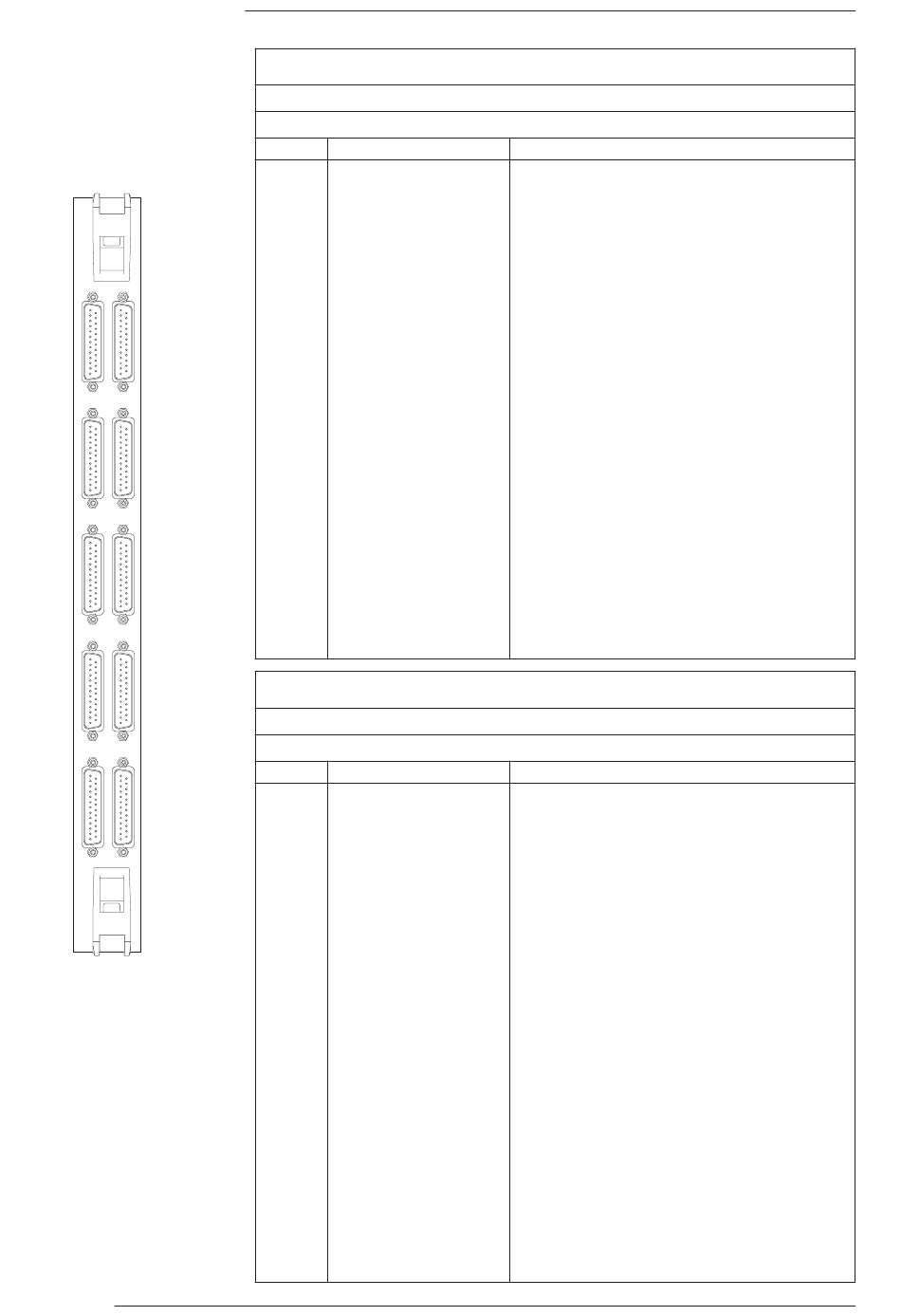

GPI I/O Card ('907)
IN GPI OUT
49 - 60 49 - 60
37 - 48 37 - 48
25 - 36 25 - 36
13 - 24 13 - 24
1 - 12 1 - 12
Page 60
GPI Inputs 1–12 (13–24, 25–36, 37–48, 49–60)
Location:
Connector Type:
pin Description
1 Input
14 Input
2 Input
15 Input
3 Input
16 Input
4 Input
17 Input
5 Input
18 Input
6 Input
19 Input
7 Input
20 Input
8 Input
21 Input
9 Input
22 Input
10 Input
23 Input
11 Input
24 Input
12 Input
25 Input
13 0V
GPI Outputs 1–12 (13–24, 25–36, 37–48, 49–60)
Location:
Connector Type:
pin Description
1 Output
14 Output
2 Output
15 Output
3 Output
16 Output
4 Output
17 Output
5 Output
18 Output
6 Output
19 Output
7 Output
20 Output
8 Output
21 Output
9 Output
22 Output
10 Output
23 Output
11 Output
24 Output
12 Output
25 Output
13 +15V
Centuri – Relay card
25-way D-type male
Notes:
1A
1B
2A
2B
3A
3B
4A
4B
5A
5B
6A
6B
7A
7B
8A
8B
9A
9B
10A
10B
11A
11B
12A
12B
Centuri – Relay card
25-way D-type female
Notes:
1A
1B
2A
2B
3A
3B
4A
4B
5A
5B
6A
6B
7A
7B
8A
8B
9A
9B
10A
10B
11A
11B
12A
12B
450mA across all connectors
