C300HD Installation Guide
Centuri
CPU Card
E T H E R N E T
V ID E O 1
V ID E O 2
V ID E O 3
S Y N C
'TTY-E'
S E R IA L
NetBridge
Maintenance
Access
Page 38
NetBridge Installation
C300HD Console
SERIAL 1 - 8
TERMINAL SERIAL 9
SSL TCP/IP
TESTED
D A T E IN IT IA L S
Model
Solid State Logic
626755X4 Oxford • England
Serial No.
Ratings: AC ~ 50/60Hz
FUSE risk of fire, use sam e type
Volts Am ps and rating (IEC 127)
250V
90-125 1.2-0.9 10A(T)
250V
195-255 0.6-0.5 5A(T)

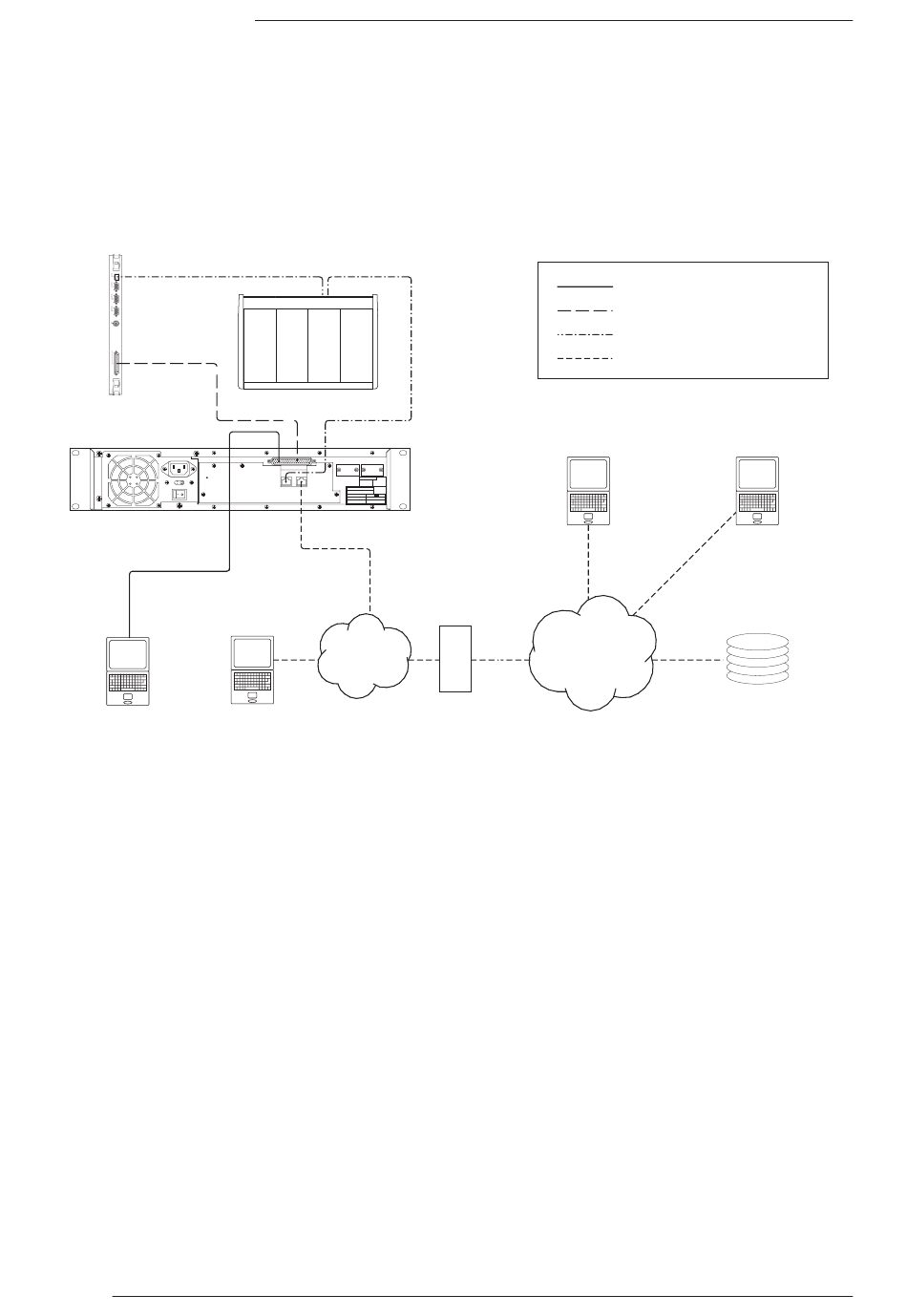

TCP/IP
network
Operational
Access
Internal Network
SSL
Service
Internet
Firewall
External Network
RS232 Terminal Cable
RS232 Diagnostics Cable
SSL Network
TCP/IP Network
Freelance
Engineer
Central
File
Server
