C300HD Installation Guide
MACHINE
TIME
CONTROL
CODE
CONTROL
SURFACE 1
CONTROL
SURFACE 2
CONTROL
SURFACE 3
Page 56
Timecode
Location:
Connector Type:
pin
Description
1
in 1 +
14 in 1 -
2
in 1 gnd
15 in 2 +
3
in 2 -
16 in 2 gnd
4
in 3 +
17 in 3 -
5
in 3 gnd
18 in 4 +
6
in 4 -
19 in 4 gnd
7
unused
20 out 1 +
8
out 1 -
21 out 1 gnd
9
out 2 +
22 out 2 -
10
out 2 gnd
23 out 3 +
11
out 3 -
24 out 3 gnd
12
out 4 +
25 out 4 -
13
out 4 gnd
Machine Control
Location:
Connector Type:
pin
Description
1
n/c
14 n/c
2
Tally common
15 Switch common
3
Rewind switch
16 Rewind tally
4
Forward switch
17 Forward tally
5
Stop switch
18 Stop tally
6
Play switch
19 Play tally
7
Skip back switch
20 Skip back tally
8
Record switch
21 Record tally
9
Tach 1
22 Tach 2
10
Dir 1
23 Dir 2
11
n/c
24 n/c
12
n/c
25 n/c
13
n/c

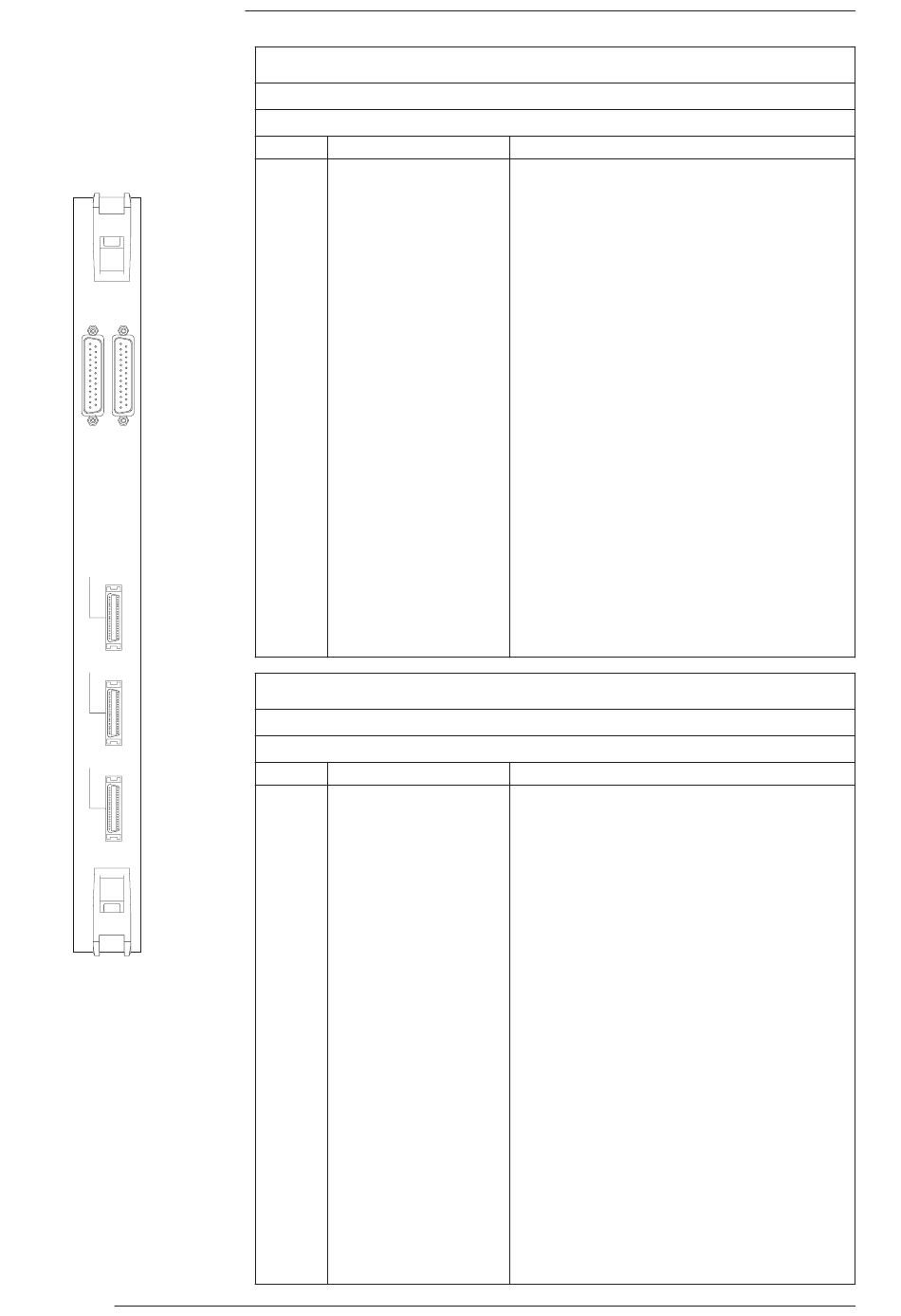

Centuri – Console interface card
25-way D-type male
Notes:
Centuri – Console interface card
25-way D-type female
Notes:
Tally voltage can be AC or DC 4V to 30V.
