Solid State Logic C300 HD Installation Manual page 59

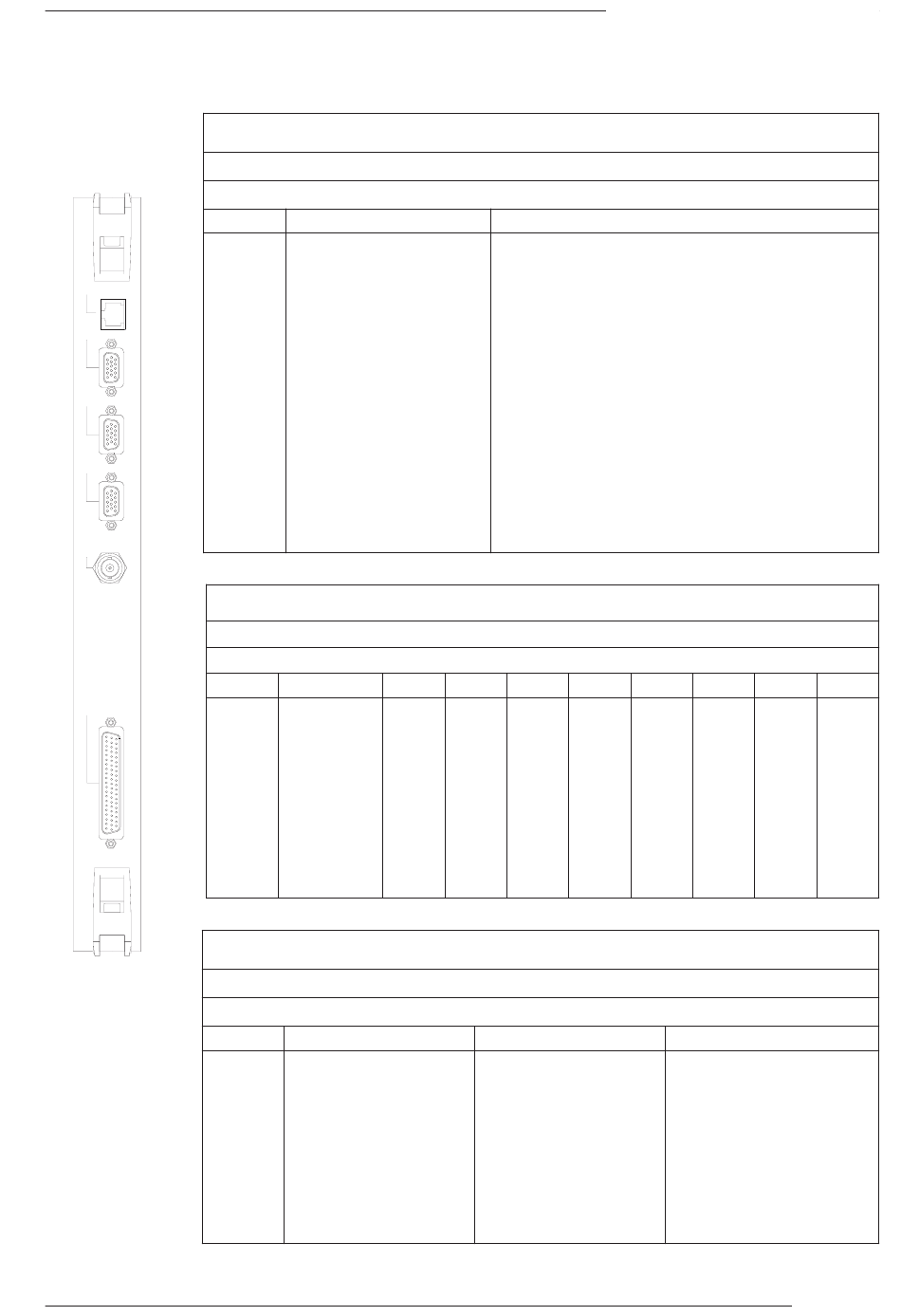

Connector Pinouts – Centuri Processor
Video
Location:
Connector Type:
ETHERNET
VIDEO 1
VIDEO 2
VIDEO 3
SYNC
Serial
Location:
Connector Type:
SERIAL
TTY A – H
Location:
Connector Type:
Centuri – CPU Card
HD15 female
pin Description
1 Red
2 Green
3 Blue
4 ID bit
5 n/c
6 Red screen
7 Green screen
8 Blue screen
9 n/c
10 Ground
11 ID bit
12 ID bit
13 H sync
14 V sync
15 n/c
(62pin to 8 off 9-pin breakout lead)
Centuri – CPU card
62-way high-density D-type female
D9-pin Description
1 0V
6 0V
2 Rx Data L
7 Rx Data H
3 Tx Data H
8 Tx Data L
4 0V
9 n/c
5 0V
Centuri CPU serial breakout adapter lead
9-way D-type male (8 off)
pin Con. A–E, F–H (RS422)
1 0V
6 0V
2 Rx Data L
7 Rx Data H
3 Tx Data H
8 Tx Data L
4 0V
9 n/c
5 0V
Notes:
TTY-A TTY-B TTY-C
7 28 14
5 26 12
2 23 9
3 24 10
2 22 8
4 25 11
6 27 13
- - -
43 45 44
Con. E (RS232)
0V
0V
Tx Data
0V
Rx Data
n/c
n/c
n/c
0V
Appendix C – Connector Pinouts
TTY-D TTY-E TTY-F
52 21 42
50 19 40
47 16 37
48 17 38
46 15 36
49 18 39
51 20 41
- - -
44 62 61
Notes:
TTY-G TTY-H
35 59
33 57
30 54
31 55
29 53
32 56
34 58
- -
60 61
