Stuart Turner MONSOON EXTRA S1.4 bar SINGLE Installation Instructions Manual page 9

•
DISASSEMBLY
•
Isolate electrical supply before fitting replacement part.
•
Replacing the reed switch components should only be carried out by a
competent person.
•
The supply cord and internal wiring within the terminal box are routed
and secured to ensure compliance with the electrical standard
wiring, all cable routing and securing details are carefully noted to
ensure reassembly to the same factory pattern is always maintained.

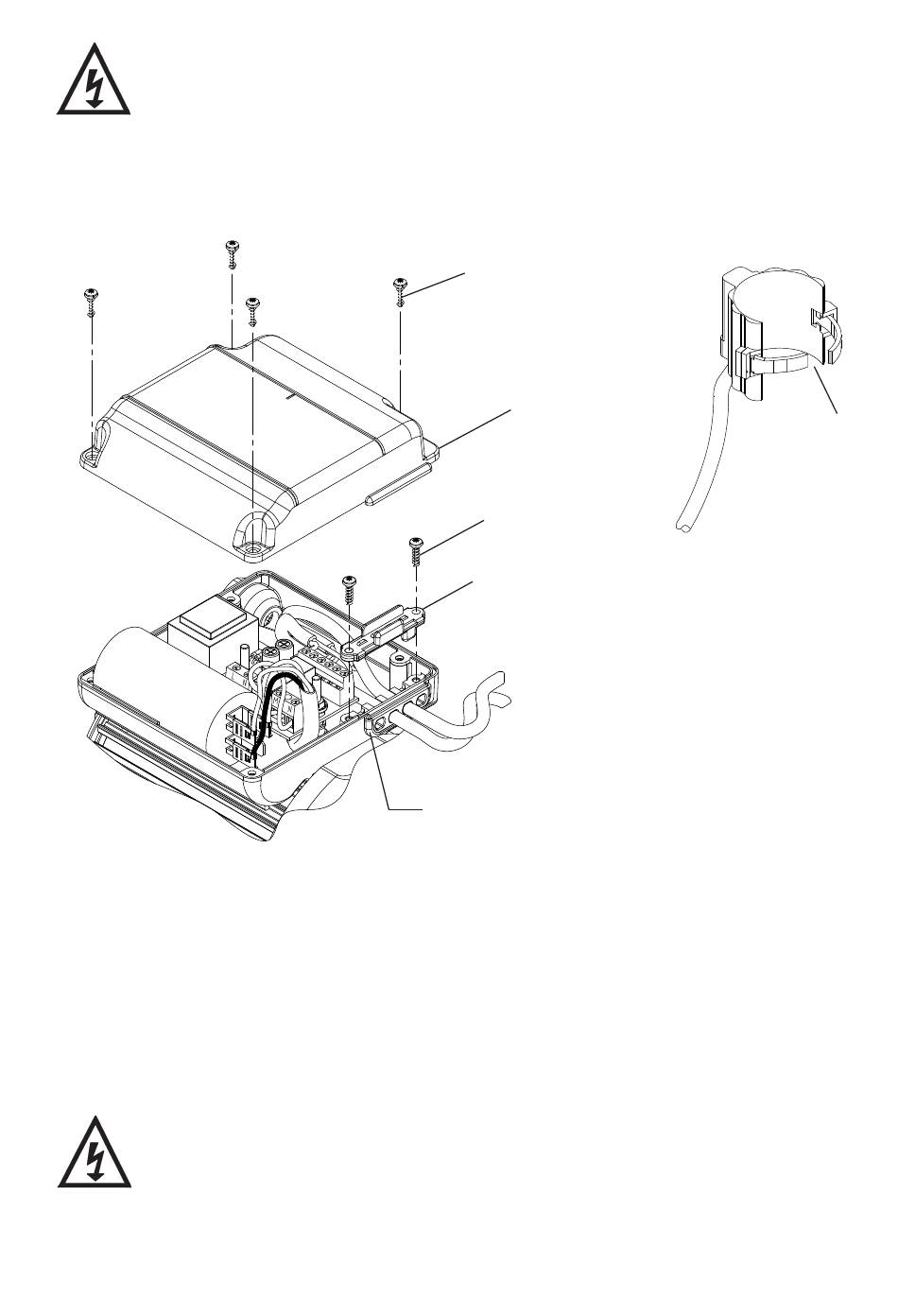

Fig. 13
•
Remove four screws and carefully remove terminal box lid (item 26).
•
Note the cable routing within the terminal box (Figs. 11 or 12).
•
Identify, disconnect and remove the reed switch wiring from the terminal block (Figs. 11 or
12).
•
IMPORTANT – take note of the cable clamp orientation before removal, as reassembly in
the original factory orientation is essential. Remove two screws and cable clamp, this
allows any reed or pressure switch cables to be removed from the terminal box (Fig. 13).
•
Remove the reed switch cable from the terminal box by gently sliding the cable out
through the grommet, ensuring no damage to the grommet sealing area (Figs. 11 or 12).
•
Remove the existing reed switch by cutting the securing tie wrap and pulling away from
the body Fig. 14.
Damaged components must be replaced. Contact Stuart Turner for advice
on replacements not supplied with kit.
EN 60335-1. It is essential that prior to any disturbance of this internal
26
Terminal box lid
Cable clamp screws
Cable clamp
Cable Grommet
- 9 -
Cut tie
wrap
Fig. 14
Cont ...
