Stuart Turner MONSOON EXTRA S1.4 bar SINGLE Installation Instructions Manual page 7

•

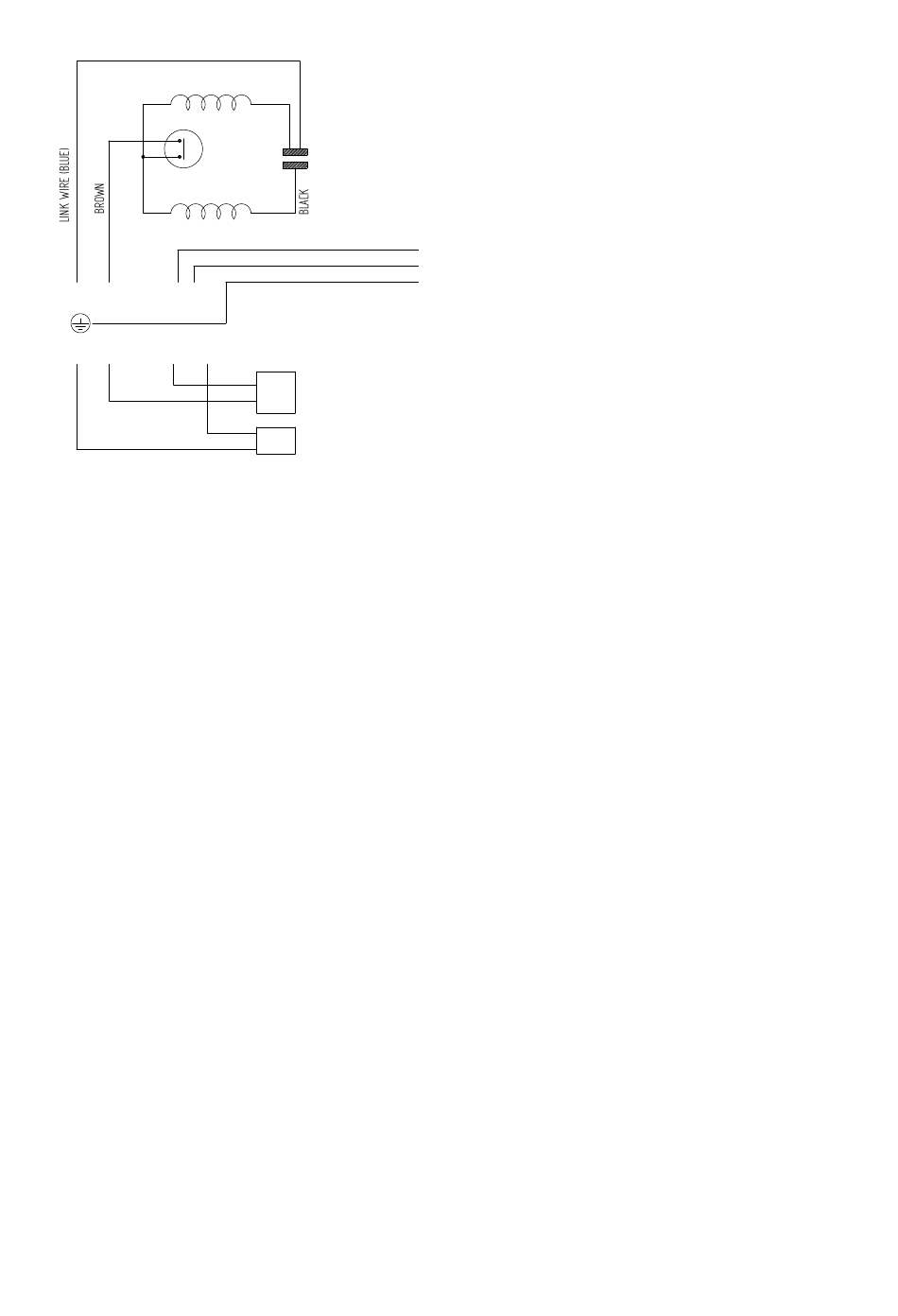

WIRING DIAGRAM
MAIN WINDING
START WINDING
N L
N M
S1
S3 S3
Fig. 10
•
INITIAL OPERATING INSTRUCTIONS
1. Turn on water supply, prime and vent the pump via the vent plug. Unscrew slowly until
liquid emerges, then re-tighten.
Note: DO NOT RUN PUMP DRY.
2. Turn power supply to pump 'on' - pump will start, pressurise the system then stop.
3. Open and close all outlets in turn associated with the pump, (including w/c systems)
allowing water to flow from each outlet until all air is purged. As each outlet is opened
and closed, the pump will stop and start respectively.
Note: After closing the outlet there will be a small delay time before the pump stops, which
is normal.
4. Any tap or control valve within the system when opened and closed will now turn the pump
on/off. Providing this is the case the system is now operating correctly.
5. Carefully check pump and pipework for leaks whilst pump running and stationary before
leaving the installation unattended.
BLUE
THERMOTRIP
CAPACITOR
BLUE
BROWN
GREEN / YELLOW
S1
FLOWSWITCH
REED (S3)
PRESSURE
SWITCH (S1)
N
230 VAC/1PH/50Hz
L
SUPPLY
E
- 7 -
Cont ...
