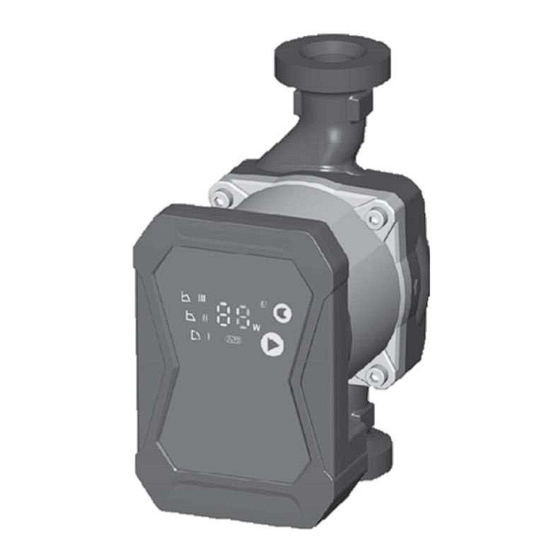

Stuart Turner Pulse Trade 25-60/130 Installation, Operation & Maintenance Instructions Manual

Stuart Turner Pulse Trade 25-60/130 Installation, Operation & Maintenance Instructions Manual

Advertisement

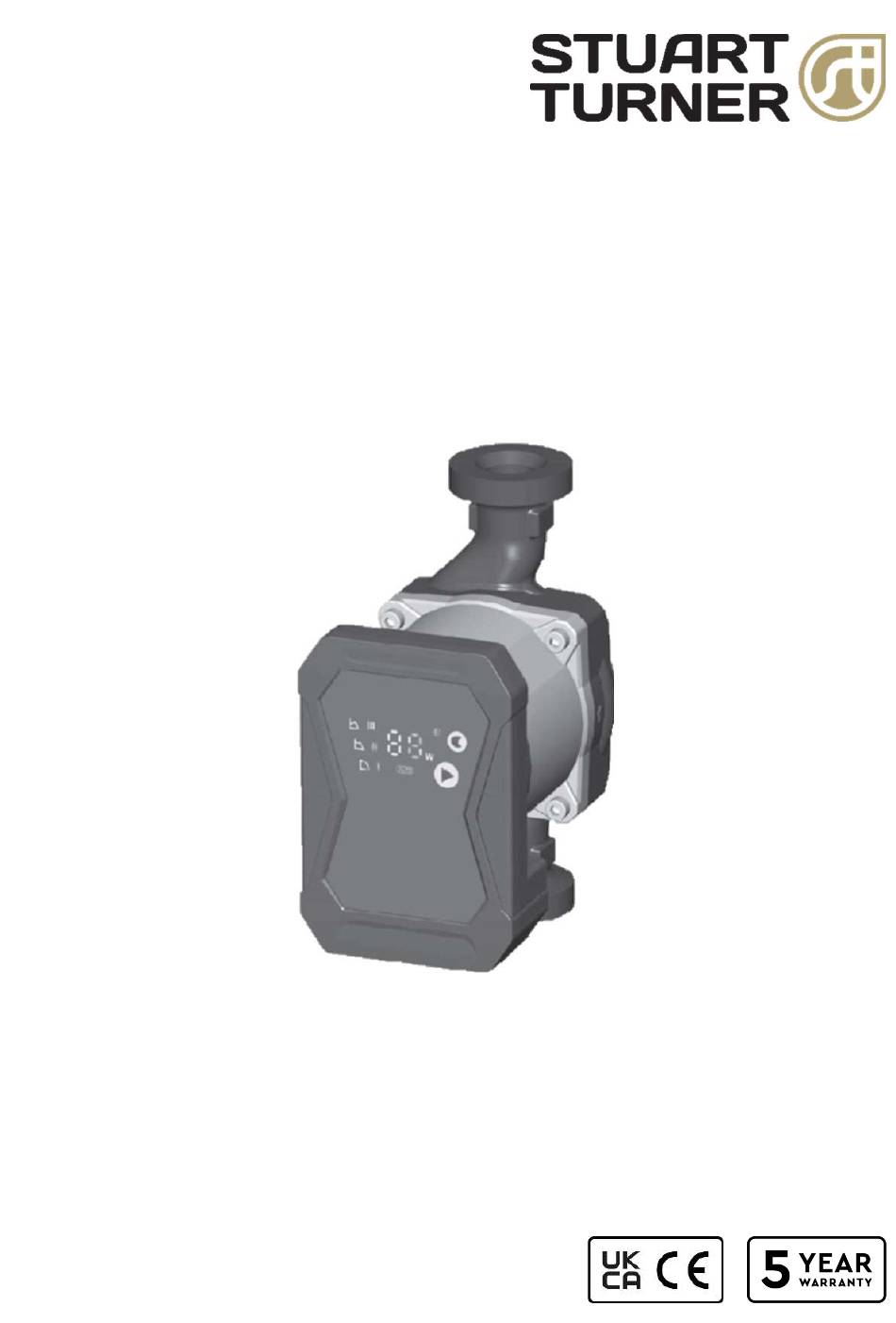

STUART
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the end user as it contains
important warranty, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
Pulse Trade 25-60/130
Pt. No. 47505

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse Trade 25-60/130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stuart Turner Pulse Trade 25-60/130

  • Page 1 Installation, Operation & Maintenance Instructions Please leave this instruction booklet with the end user as it contains important warranty, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Pulse Trade 25-60/130 Pt. No. 47505...
  • Page 2: Table Of Contents

    Unauthorised conversion and production of spare parts ..7 Unpermitted operation ..............7 Transport and storage ..............7 Intended Use ..................7 Product information ................. 8 Technical data Pulse Trade 25-60/130 ........8 Delivery range ................9 Pump description ................9 Pump settings and capacity ............9 Buttons ..................9 6.1.1...
  • Page 3 Capacity characteristics ..............14 Installation ..................15 Electrical Installation/Earthing ............17 Maintenance/service ..............19 Malfunctions, causes and elimination ..........19 Disposal ..................20 Warranty ..................21...
  • Page 4 WARNINGS:  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5: Safety Instructions

    Safety Instructions General These installation and operating instructions are a part of the product and contain basic information that must be observed during installation, operation and maintenance. For this reason, the installer and specialist personnel or operators must read these instructions prior to set-up. Please observe both the general safety instructions listed under section 2 and the special safety instructions detailed in the other sections.
  • Page 6: Danger Of Not Observing Safety Instructions

    understand the hazards arising from its use. Children may not play with the device. Cleaning and maintenance operations may not be conducted by children without supervision. 1.4 Danger of not observing safety instructions Not observing the safety information can endanger persons, the environment and the system.
  • Page 7: Unauthorised Conversion And Production Of Spare Parts

    Disconnect the device plug to achieve this. Prescribed instructions for shutting down the device can be found in the operating instructions. All protective mechanisms, such as a touch guard, must be correctly reattached after work. 1.8 Unauthorised conversion and production of spare parts Modification or conversion of the product is only permitted after prior consultation with the manufacturer.
  • Page 8: Product Information

    Product information 4.1 Technical data Pulse Trade 25-60/130 Pulse Trade 25-60/130 | 47505 Maximum elevation height 6.0 m Maximum flow rate 3600 l/h Power consumption P1 (W) 4.5 - 38 Supply voltage 1 x 230V 50Hz Sound pressure level <43 dB(A)
  • Page 9: Delivery Range

    In an average household, 10 to 20% of electricity consumption is used by conventional standard pumps. We have developed a circulation pump with an energy efficiency index ≤ 0.20. By using Pulse Trade 25-60/130, energy consumption can be reduced by up to approx. 80% compared to a conventional circulation pump.
  • Page 10: Control Panel And Led Display

    The setting process is now complete. The pump is now running in the selected capacity range. If necessary, the pump setting can be readjusted at any time. 6.2 Control panel and LED display Display of energy consumption in watts. Automatic night reduction display. Button for activating the automatic night reduction.
  • Page 11 interrupted, the pump remembers the last setting and resumes adjusting as soon as power is restored. Upon delivery, the pump is set to the AUTO Smartadapt operating level. Multiple brief presses of the select button will continuously toggle between the constant speed, constant pressure, proportional pressure and AUTO Smartadapt modes.
  • Page 12: Recommendations For Selecting A Degree Of Work

    8.1 Recommendations for selecting a degree of work Factory configuration = AUTO Smartadapt 8.2 Automatic night reduction of power Conditions for automatic night reduction: Pumps installed in gas boilers with low water capacity must never be set to automatic night reduction. If the heating system does not supply enough heat to the radiators, check whether the automatic night reduction function is active.
  • Page 13: Filling And Venting The Installation

    How automatic night reduction works Press the button to activate the night reduction function. If the adjacent highlighted field is lit, the night reduction is activated and the pump automatically switches between normal operation and night reduction. Switching depends on the flow temperature. The pump automatically switches to night temperature reduction if the flow temperature drops by more than 10°-15°C in 1 hour.
  • Page 14: Relationship Between Pump Setting And Capacity

    10 Relationship between pump setting and capacity The characteristic curves show the relationship between pump settings and pump capacity. 11 Capacity characteristics Pulse Trade 25-60/130 | 47505...
  • Page 15: Installation

    12 Installation Correct installation position of the pump. A voltage-free installation must be conducted with the pump motor in a horizontal position (the direction arrow on the pump body shows the direction of flow – ensure inlets/outlets fitted correctly). When performing thermal insulation, make sure that the pump and the electronics body are not insulated.
  • Page 16 System dimensions Dimensional sketch and dimension table. Dimensions Technical Data Pump Weight G (“) Elevation Type (mm) (mm) (mm) (mm) Current (A) height (without cable) Trade 25-60/130 1 ½ 2.12 0.04-0.25/0.04-0.31 0-4/0-6...
  • Page 17: Electrical Installation/Earthing

    13 Electrical Installation/Earthing 13.1 Regulations: The electrical installation must be carried out in accordance with the current local regulations by a qualified person. 13.2 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. not supplied) should be installed in the supply circuit. This may be part of a consumer unit or a separate unit.
  • Page 18  The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. Fuse: The pump MUST use a 5 Amp fuse. Connect the power cord to the pump as shown in the below picture. Caution mains voltage! Always observe the necessary safety measures, VDE regulations and local regulations.
  • Page 19: Maintenance/Service

    14 Maintenance/service Before carrying out maintenance, cleaning and repair work, disconnect the system from the power supply and secure it against being switched on again by unauthorized persons. At high water temperatures and system pressures, wait for the pump to cool down beforehand. There is a risk of burns! 15 Malfunctions, causes and elimination Maintenance work or repair attempts may only be performed by qualified personnel.
  • Page 20: Disposal

    If the defect cannot be eliminated, contact a specialized dealer. After 10 seconds without pressing a button, the display turns off. Pressing one of the two buttons turns it back on. 16 Disposal The pump and its individual parts must not be disposed of with the municipal waste but must be disposed of in an environmentally friendly manner! To do this, use the services of public or private waste disposal companies.
  • Page 21: Warranty

    ‘proof of purchase’ provided during registration will be reviewed. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please make a note for your own reference: PRODUCT MODEL SERIAL NO.
  • Page 23 Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND Tel: +44 (0) 1491 572655, Fax: +44 (0) 1491 573704 info@stuart-turner.co.uk www.stuart-turner.co.uk Issue No. 4622-01-01 Pt. No.72310...
