Stuart Turner MONSOON EXTRA S1.4 bar SINGLE Installation Instructions Manual page 15

MAIN WINDING
THERMOTRIP
START WINDING
N M N L
S1 S3 S3 S1

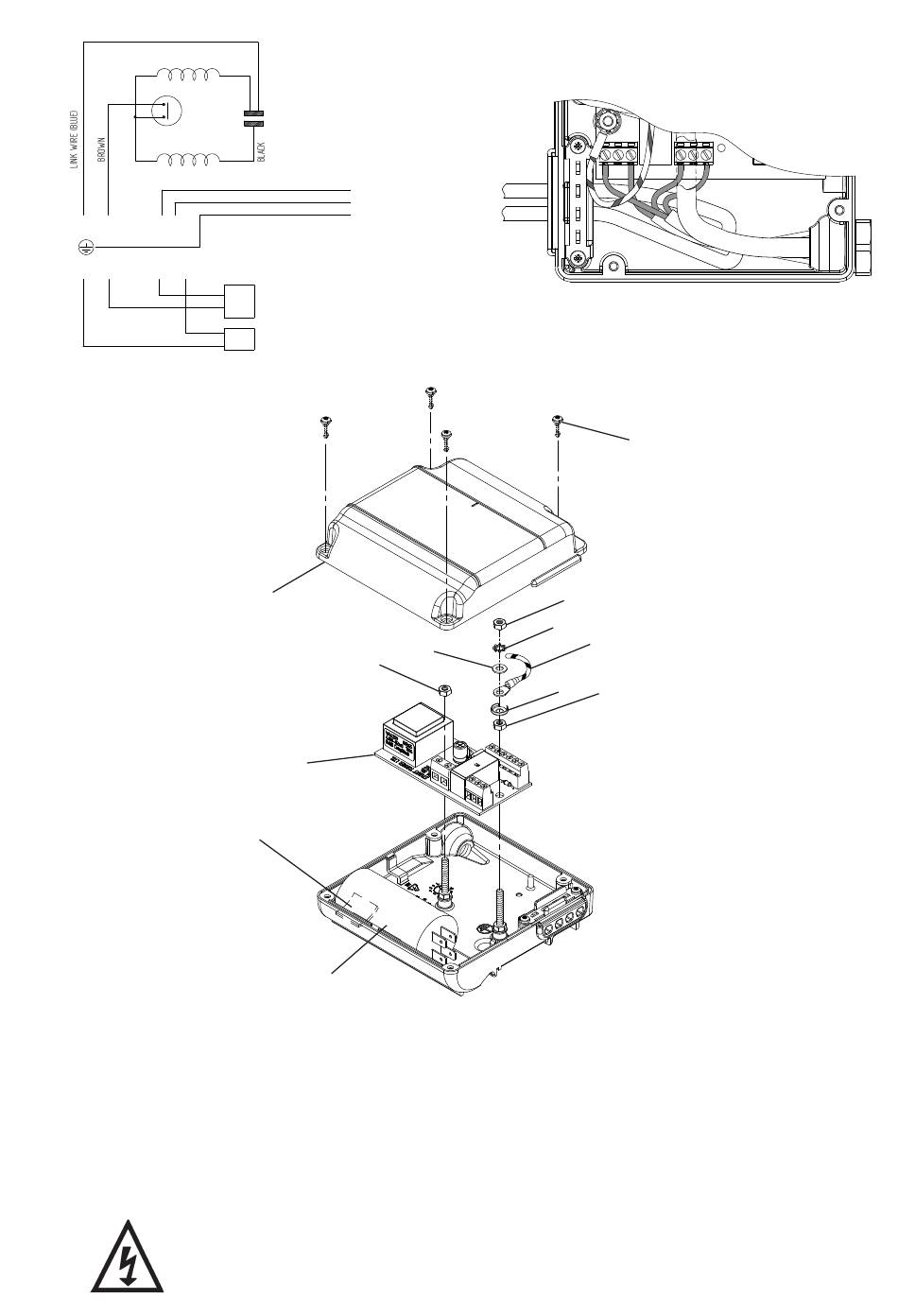

Fig. 25
Reference Fig 25.
•
Remove four screws (item 26) and carefully remove terminal box lid (item A).
•
IMPORTANT: Take note of capacitor wiring connection and colours before removal.
•
Disconnect and remove capacitor (item 23), and foam securing pad (item 25) make note of
pad fitted position.
•
Remove M4 nut (item B) then M4 lock washer (item C) and plain washer (item D), this allows
removal of earth wire and cup washer (item E).
•
Disconnect all wiring from terminal blocks on printed circuit board (PCB item 29).
•
Remove two M4 nuts (item B) and carefully lift PCB (item 29) away from terminal box.
Damaged components must be replaced. Contact Stuart Turner for
advice on replacements not supplied with kit.
BLUE
CAPACITOR
BLUE
BROWN N 230 VAC/1PH/50Hz
L
GREEN / YELLOW
SUPPLY
E
FLOWSWITCH
REED (S3)
PRESSURE
SWITCH (S1)
A
B
29
25
Capacitor (item 23)
PRESSURE
SWITCH (S1)
FLOWSWITCH
REED (S3)
Fig. 24
B
C
D
E
- 15 -
S1 S2 S3 S3 S2 S1
26
Earth wire
B
Cont ...
