REASSEMBLY
Reassembly is the reverse of the disassembly instructions with the new replacement parts
fitted as required.
Secure cable clamp screws and terminal box lid, to a torque of 0.8 Nm.

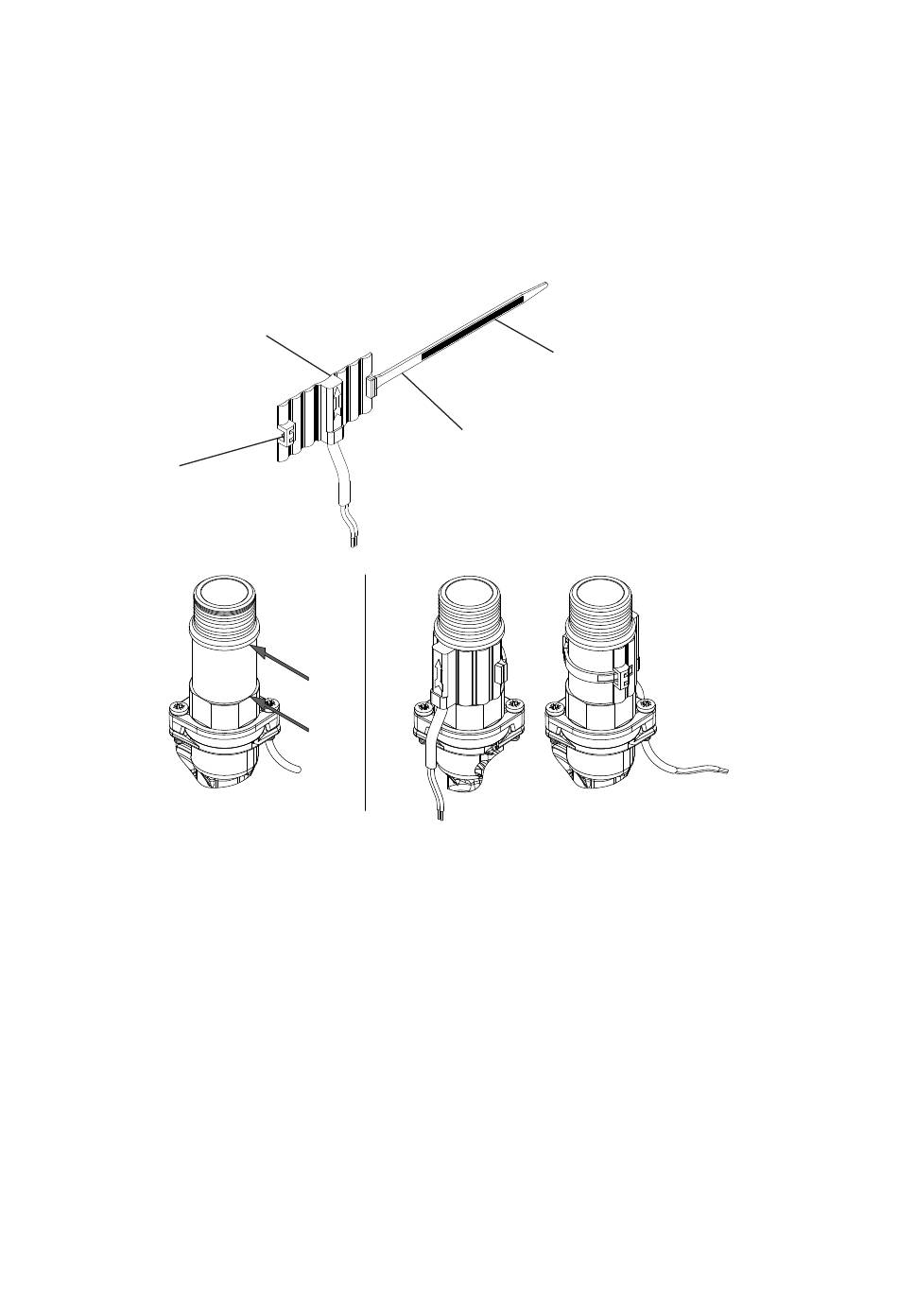

Note: For correct operation of the flow switch, the reed must be secured to the body as
detailed below.
Firstly feed the tie wrap through the retainer on the reed switch, ensuring that the tie wrap
serrations are facing outward (Fig 15).
Now locate the reed switch within the body groove as highlighted X-X (Fig. 16), and feed
the tie wrap through the second catch.
The tie wrap can now be pulled tight to secure the reed and the excess cut to length (Fig. 17).
Catch
•
INITIAL OPERATING INSTRUCTIONS
•
Consult instruction manual for commissioning instructions.
•
Do not run pump dry. Allow the water to be pumped to enter the pump body thus ensuring
the seal is lubricated before switching the pump on. Failure to do this will damage the seal.
•
Carefully check pump and pipework for leaks whilst pump running and stationary before
leaving the installation unattended.
24
X
X
Fig. 16
Serrations
11
Fig. 15
Fig. 17
