Stuart Turner MONSOON EXTRA S1.4 bar SINGLE Installation Instructions Manual page 16

•
REASSEMBLY
The replacement PCB supplied with this kit maybe of a different design to the PCB being
replaced. The new PCB is interchangeable with the existing, however, the following steps
must be adhered to.
Reassembly is the reverse of the disassembly instructions with the new replacement parts
fitted as required.

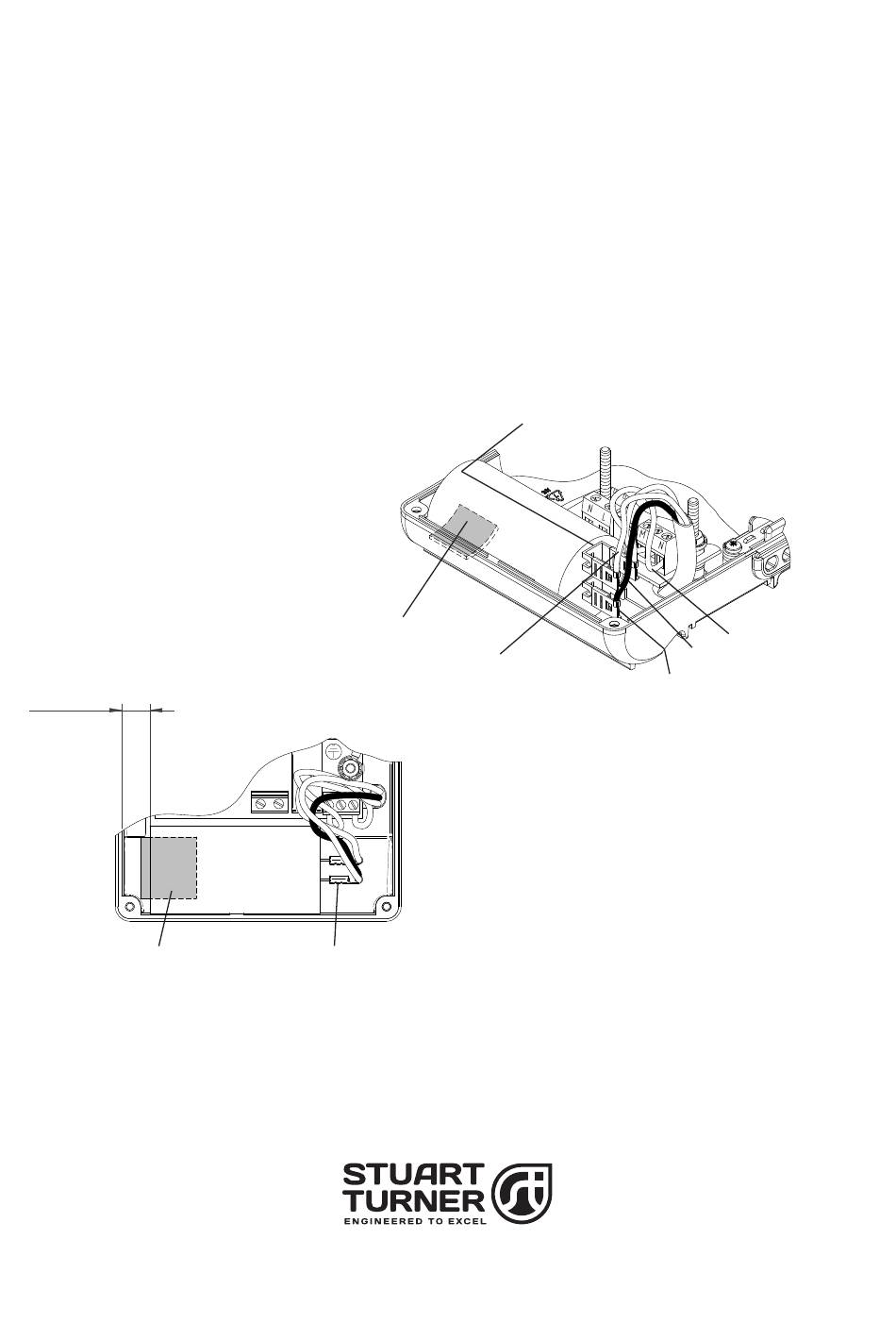

Note: For correct operation the capacitor must be secured and positioned as detailed in
Figs. 26 & 27.
The replacement PCB's mains supply cord must be routed and secured as shown in Figs. 23 or
24.
Re-connect all internal wiring as detailed in appropriate wiring diagram and ensure the
internal wiring is routed and secured to the same pattern as noted in disassembly section
(except mains supply cord, see Figs. 23 or 24).
Secure PCB nuts to a torque of 1.5 Nm (item B).
Secure terminal box lid screws to a torque of 0.8 Nm (item 26).
IMPORTANT NOTE: For correct pump rotation, ensure both blue wires are connected to the
linked capacitor terminals as shown.
10.5 mm
9.5 mm
Fig. 27
25
•
INITIAL OPERATING INSTRUCTIONS
•
Consult instruction manual for commissioning instructions.
•
Do not run pump dry. Allow the water to be pumped to enter the pump body thus ensuring
the seal is lubricated before switching the pump on. Failure to do this will damage the seal.
•
Carefully check pump and pipework for leaks whilst pump running and stationary before
leaving the installation unattended.
Stuart Turner Limited reserves the right to amend specifications without notice.
Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND
Pt. No. 20002
Fig. 26
Receptacles Upright
Tel: +44 (0) 1491 572655,
info@stpumps.co.uk
Linked Terminal
25
Blue
Fax: +44 (0) 1491 573704
www.stuart-turner.co.uk
Blue
Black
Receptacles Upright
Issue No: 1616/1-03
