To view the light the following procedure must be followed:-
•
Isolate the mains electrical power supply from the pump.
•
Remove the four screws (item 26) retaining the terminal box lid (Fig. 22).
•
Lift the terminal box lid off.
•
IMPORTANT – Ensure there is no contact with any of the internal parts of the terminal box.
•
Briefly reconnect the mains power supply to the pump – the indicator light should illuminate if
the pump has been correctly wired.
•
Isolate the mains electrical power supply from the pump.
•
Re fit the terminal box lid ensuring no cables are trapped.
•
Re fit the four terminal box lid retaining screws, tighten to 0.8 Nm.

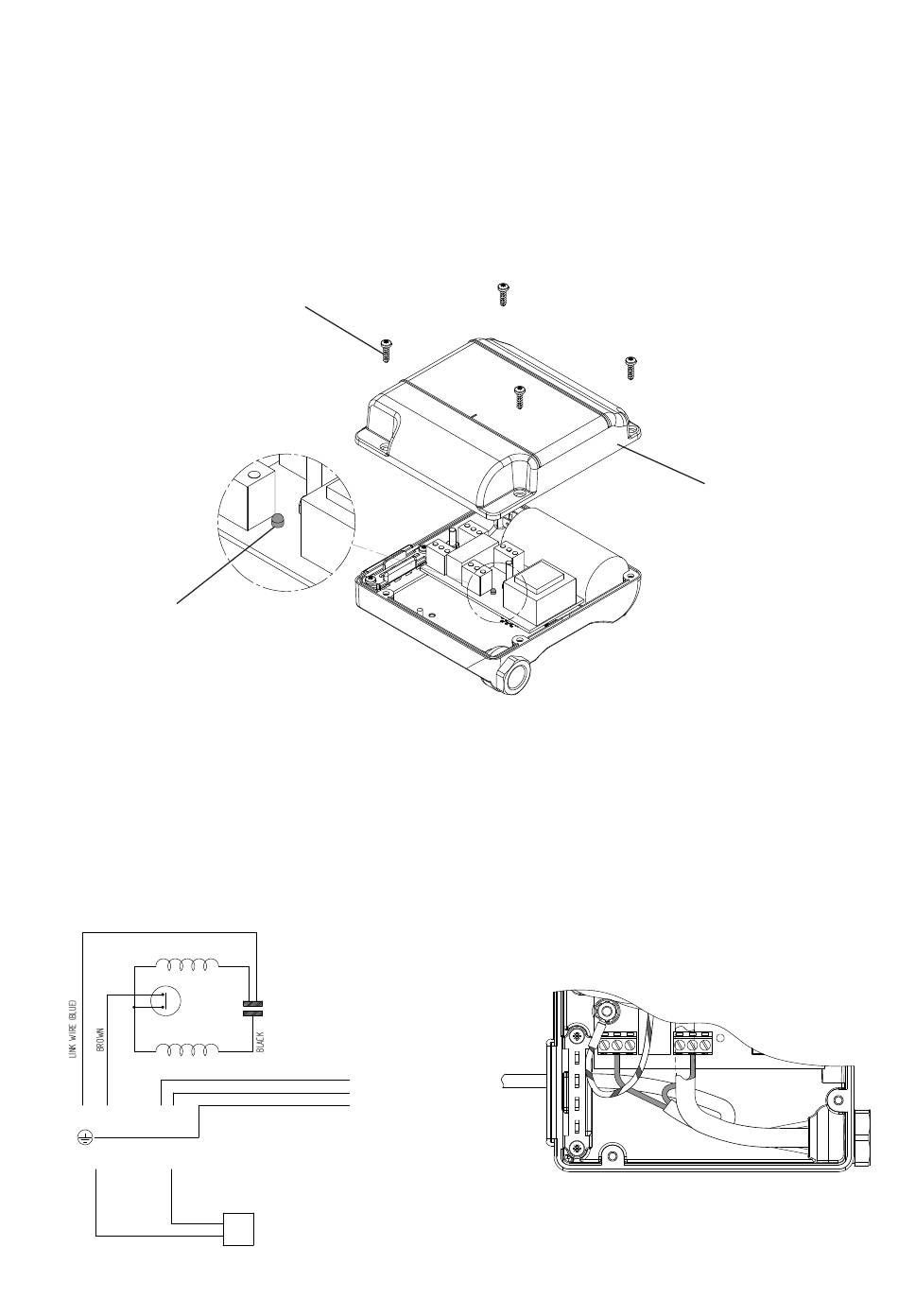

Indication light
Fig. 22 Wiring removed for clarity
•
DISASSEMBLY
•
Isolate electrical supply before fitting replacement part.
•
Replacing the PCB should only be carried out by a competent person.
•
The supply cord and internal wiring within the terminal box are routed
and secured to ensure compliance with the electrical standard
wiring, all cable routing and securing details are carefully noted to
ensure reassembly to the same factory pattern is always maintained.
MAIN WINDING
THERMOTRIP
START WINDING
M
N N L
S2
S2
26
EN 60335-1. It is essential that prior to any disturbance of this internal
BLUE
CAPACITOR
BLUE
BROWN
N 230 VAC/1PH/50Hz
L
GREEN / YELLOW
E
FLOWSWITCH
REED (S2)
FLOWSWITCH
REED (S2)
SUPPLY
Fig. 23
- 14 -
Terminal box lid
S1 S2 S3 S3 S2 S1
Cont ...
