STUART
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet in a safe place as it contains
important warranty, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:

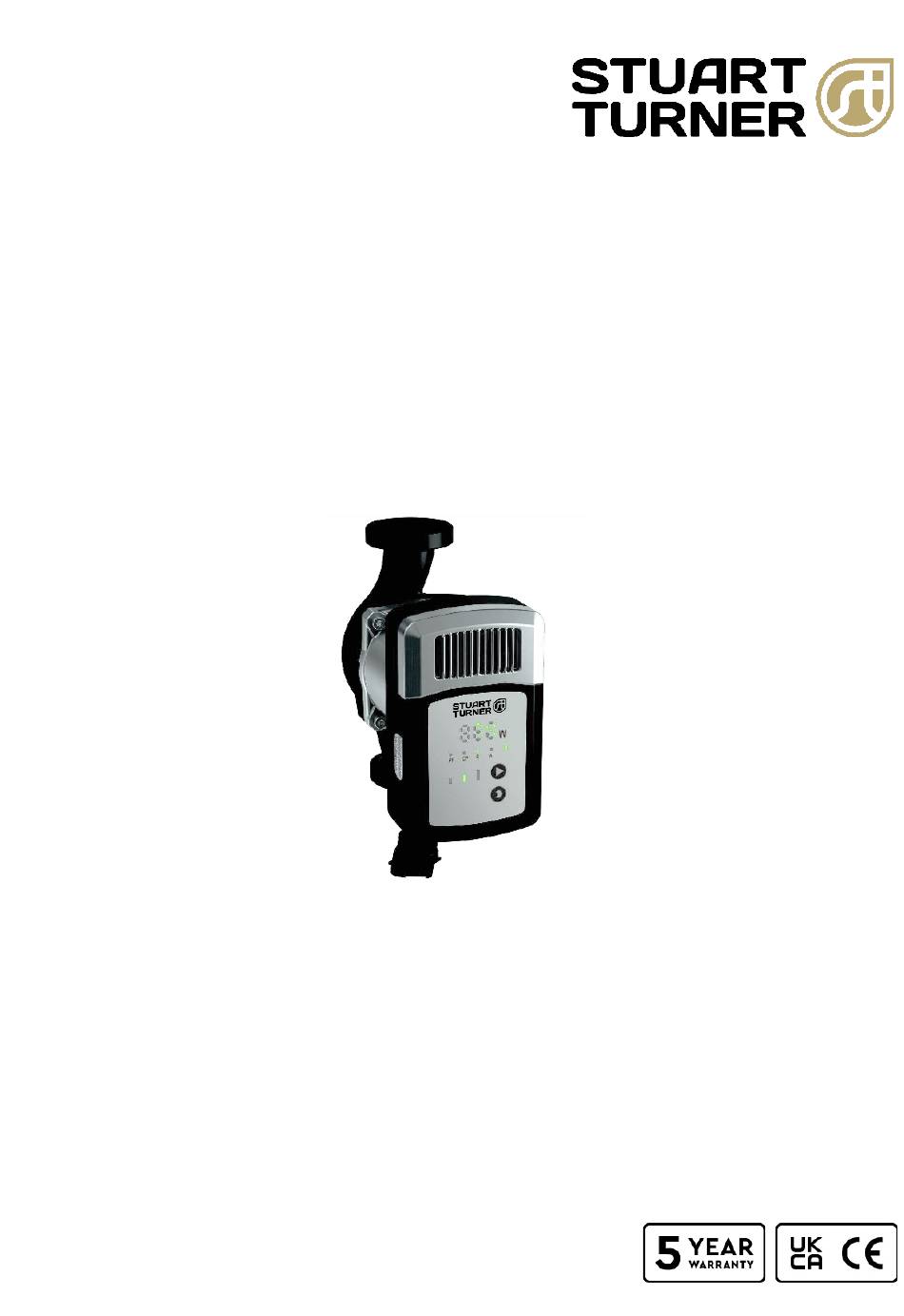

Stuart Pulse Trade 25/80-180 Circulator | Part No. 47540
Stuart Pulse Trade 25/100-180 Circulator | Part No. 47542
Stuart Pulse Trade 25/120-180 Circulator | Part No. 47544
Please note images are representative only and may not portray your model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse Trade 25/80-180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stuart Turner Pulse Trade 25/80-180

  • Page 1 Read this manual carefully before commencing installation. This manual covers the following products: Stuart Pulse Trade 25/80-180 Circulator | Part No. 47540 Stuart Pulse Trade 25/100-180 Circulator | Part No. 47542 Stuart Pulse Trade 25/120-180 Circulator | Part No. 47544...
  • Page 2: Table Of Contents

    CONTENTS PRODUCT OVERVIEW ....................3 2 SAFETY INSTRUCTIONS .................... 4 3 CHECKLIST ........................ 7 4 TRANSPORT AND STORAGE ..................8 5 KEY FEATURES ......................9 6 PUMP SETTINGS ...................... 10 7 PWM FUNCTION ...................... 14 8 FILLING AND VENTING THE SYSTEM ..............21 9 RELATION BETWEEN PUMP SETTING AND CAPACITY ..........
  • Page 3: Product Overview

    PRODUCT OVERVIEW Product Description Our Stuart Pulse Trade Circulators features a robust cast iron pump housing and is ideal for the transfer of liquid within systems for hot-water heating, air- conditioning and ventilation. This circulator features variable speed controls to constantly measure pressure and flow and adjust the speed according to the set operating mode.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS General These operating instructions are part of the product and contain basic information that must be observed during assembly, installation, operation and maintenance. For this reason it must be read by the installer and the responsible qualified personnel or the operator before performing assembly works.
  • Page 5 Dangers, if the safety instructions are not observed Failure to observe the safety instructions may endanger persons, the environment and the system. Failure to comply with the safety instructions will result in the loss of any claims for damages. Potential dangers include: •...
  • Page 6 Safety instructions for assembly and maintenance works The system operator is responsible for ensuring that all assembly and maintenance works are carried out by qualified personnel. They must have previously familiarised themselves with the product, using the operting isntructions. Conducting of works on the pump is only permitted when the system is shut down.
  • Page 7: Checklist

    CHECKLIST IMPORTANT: With the appliance removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Item Description Instruction guide Pulse Trade Circulator Flat gaskets Mains cable Insulation Your product may vary slightly from the photo above.
  • Page 8: Transport And Storage

    TRANSPORT AND STORAGE After receiving the product, inspect it immediately for damage caused in transport. If any transport damage is found, this must be claimed by the carrier. Improper transport and storage can lead to personal injuries or damages to the product. •...
  • Page 9: Key Features

    KEY FEATURES Technical data Pulse Circulator Model 25/80-180 25/100-180 25/120-180 Maximum delivery head 8.0 m 10.0 m 12.0 m Maximum flow rate 8000 l/h 9000 l/h 10000 l/h Power consumption P1 (W) 80 W 120 W 180 W Supply voltage 1 x 230V 50Hz Emission sound pressure level <43 dB(A)
  • Page 10: Pump Settings

    PUMP SETTINGS Button All pump functions can be controlled with just two buttons. The button switches the night reduction function on and off. The button controls the operating modes. The selected operating mode is shown in the clear field of the LED indicator.
  • Page 11 delivery, the pump ist set to the AUTO Smart Adapt operating level. By repeatedly briefly pressing of the selection button, the operating modes: constant speed, constant pressure, proportional pressure and AUTO Smart Adapt are switched through continously. The selected operating mode is indicated by the corresponding LED with characteristic symbols.
  • Page 12 Automatic night reduction display Display of means that automatic night reduction is activated. Button for activating automatic night reduction • By pressing the buton in section 3, automatic night reduction is switched on or off. • When the automatic night reduction is activated, the symbol lights up in the display field 2.
  • Page 13 Recommendations for the selection of the operating level Factory setting = AUTO Smart Adapt...
  • Page 14: Pwm Function

    PWM FUNCTION Optional special function PWM input This function allows the pump speed to be controlled by an external controller. To use this function, the pump must have the appropriate input. This external input can be recognized by an additional 3-pole connection cable to which a suitable external control can be connected.
  • Page 15 Second side connected: • Must reliably prevent direct contact with the cable conductors when installed, i.e. the terminals must be touch-proof and the terminal connections must be protected against unintentional contact by a fixed cover. • Must meet the requirements of protection class I (connection to protective earthing).
  • Page 16 The PWM control signal is a digital signal in which the rotational speed information is included in the pulse width. The control signal must meet the following requirements: Example of a PWM signal with a value of 40%: PWM % = 100 * t / T PWM % = 100 * 0.4 / 1 = 40 % For T, frequencies between 200 Hz and 4 kHz are acceptable.
  • Page 17 Heating characteristics P1 In the range from 0 to 10% of the PWM signal, the pump runs at maximum speed for safety reasons. (The prerequisite is that the pump is set to constant rotatioinal speed adjustment III when selecting the operating level (chapter 6.3)). In the event of a disturbance in the PWM adjustment or damage to the cable, this ensures that the heat generated by the heat generator is transferred.
  • Page 18 Solar characteristics P2 In the range from 0 to 5% of the PWM, the pump stops for safety reasons. If the PWM signal is switched off, e.g. due to a fault in the controller or an interruption in the signal cable, the pump stops. This is to prevent overheating of the solar system.
  • Page 19 PWM feedback signal (power consumption) By means of a PWM feedback signal, it is possible to send information about the operating status of the pump to an external control. It contains information about the actual power consumption and errors of the pump. The output signal has a constant frequency of 75 Hz and is galvanically insulated from the rest of the pump electronics.
  • Page 20 PWM input QT * Pump feedback DT * Priority* signal (%) Standby (Stopp) Error, pump rotor blocked Alarm, stop: electronics 0-30 1-12 error Warning 8m: 0-80W (slope of 7/8 %PWM/W) 10m: 0-140W 0-70 (slope of 7/12 %PWM/W) 12m: 0-180W (slope of 7/18 %PWM/W) The output 75Hz +/- 5% frequency...
  • Page 21: Filling And Venting The System

    FILLING AND VENTING THE SYSTEM Fill and vent the system properly. To vent the pump, the electronics should be set to level III and operated in this position for at least 20 minutes. Caution After this procedure, you can set the pump to the desired control mode. Incomplete venting will result in increased noise during operation of the pump and the system.
  • Page 22: Relation Between Pump Setting And Capacity

    RELATION BETWEEN PUMP SETTING AND CAPACITY The characteristic curves show the relationship between pump settings and pump capacity.
  • Page 23: Capacity Characteristics

    CAPACITY CHARACTERISTICS...
  • Page 24: Assembly

    ASSEMBLY Correct assembly position of the motor A voltage-free assembly must be carried out with the pump motor in a horizontal position (the direction arrow on the pump body indicates the flow direction). When carrying out the thermal insulation works, make sure that the pump motor and the electronics housing are not insulated.
  • Page 25 11.1 Assembly dimensions Dimensional sketch...
  • Page 26: Electrical Connection

    ELECTRICAL CONNECTION Connect the mains cable to the pump as shown in the figure. Caution! Mains voltage! Always observe the necessary safety measures, VDE regulations and local regulations. The cross-section of the cable must not be smaller than 0.75 mm2. When using fine-wire cables, use wire-end ferrules.
  • Page 27: Maintenance And Service

    MAINTENANCE AND SERVICE Before carrying out maintenance, cleaning and repair works, disconnect the system from the power supply and secure it against being switched on again by unauthorized persons. At high water temperatures and system pressures, wait for the pump to cool down beforehand. There is a danger of burns!
  • Page 28: Faults, Causes And Remedies

    FAULTS, CAUSES AND REMEDIES Maintenance works or repair attempts may only be performed by qualified personnel. Before carrying out maintenance, cleaning and repair works, disconnect the system from the power supply and secure it against being switched on again by unauthorized persons. At high water temperatures and system pressures, wait for the pump to cool down beforehand.
  • Page 29 Error pattern or Possible cause Remedy pump error code Rotor block Disconnect the pump from the power supply and secure it against being switched on again. If possible, close the shut-off valve upstream and downstream of the pump or drain the water. Depending on the operating state of the system, hot water may escape! There is danger of burns! Unscrew the motor head...
  • Page 30: Disposal

    DISPOSAL The pump and its individual parts does not belong in household waste, but must be disposed of in an environmentally friendly manner! Please use the services of public or private waste management companies for this purpose. Notes: All illustrations in these operating instructions are schematic represantations. Please understand that the electric pump and accessories you purchase, may differ from the illustrations in these operating instructions.
  • Page 31: Notes

    NOTES...
  • Page 33: Product Warranty

    This warranty is in addition to your statutory rights as a consumer. If you are in any doubt as to these rights, please contact your local Trading Standards Department. In the event of a claim please telephone Stuart Turner Ltd with proof of purchase and product serial number.
  • Page 34: Declaration Of Conformity

    DECLARATION OF CONFORMITY Issue: 0323-01-01 Part No: 72265...
