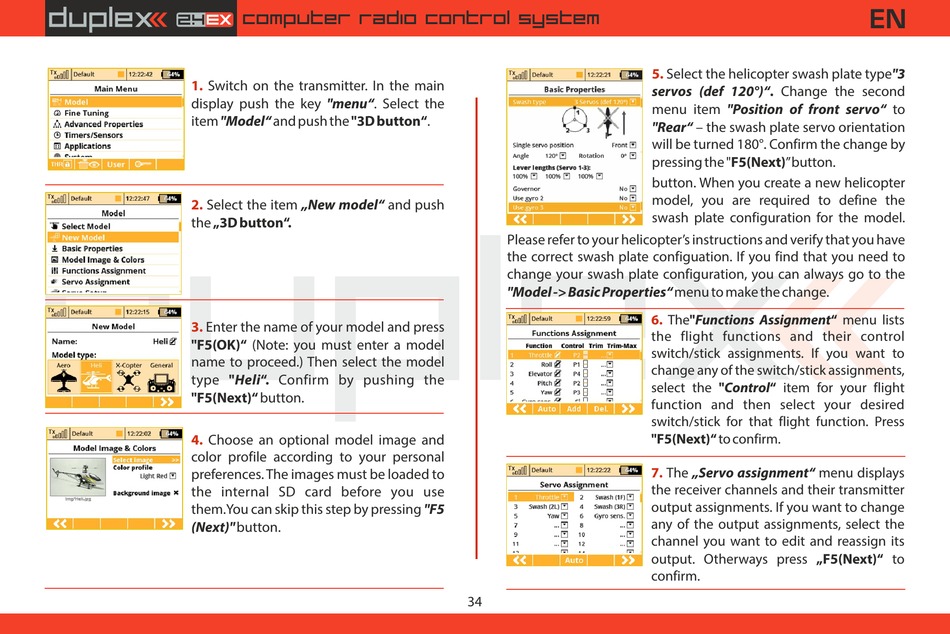

JETI model Duplex DC-16 II User Manual page 34

computer radio control system
1. Switch on the transmitter. In the main
display push the key "menu". Select the
item "Model" and push the "3D button".
2. Select the item „New model" and push
the „3D button".
3. Enter the name of your model and press
"F5(OK)" (Note: you must enter a model
name to proceed.) Then select the model
type "Heli". Confirm by pushing the
"F5(Next)" button.
4. Choose an optional model image and
color profile according to your personal
preferences. The images must be loaded to
the internal SD card before you use
them.You can skip this step by pressing "F5
(Next)" button.
Please refer to your helicopter's instructions and verify that you have
the correct swash plate configuation. If you find that you need to
change your swash plate configuration, you can always go to the
"Model -> Basic Properties" menu to make the change.
34
5. Select the helicopter swash plate type"3
servos (def 120°)". Change the second
menu item "Position of front servo" to
"Rear" – the swash plate servo orientation
will be turned 180°. Confirm the change by
pressing the "F5(Next)" button.
button. When you create a new helicopter
model, you are required to define the
swash plate configuration for the model.
6. The"Functions Assignment" menu lists
the flight functions and their control
switch/stick assignments. If you want to
change any of the switch/stick assignments,
select the "Control" item for your flight
function and then select your desired
switch/stick for that flight function. Press
"F5(Next)" to confirm.
7. The „Servo assignment" menu displays
the receiver channels and their transmitter
output assignments. If you want to change
any of the output assignments, select the
channel you want to edit and reassign its
output. Otherways press „F5(Next)" to
confirm.
