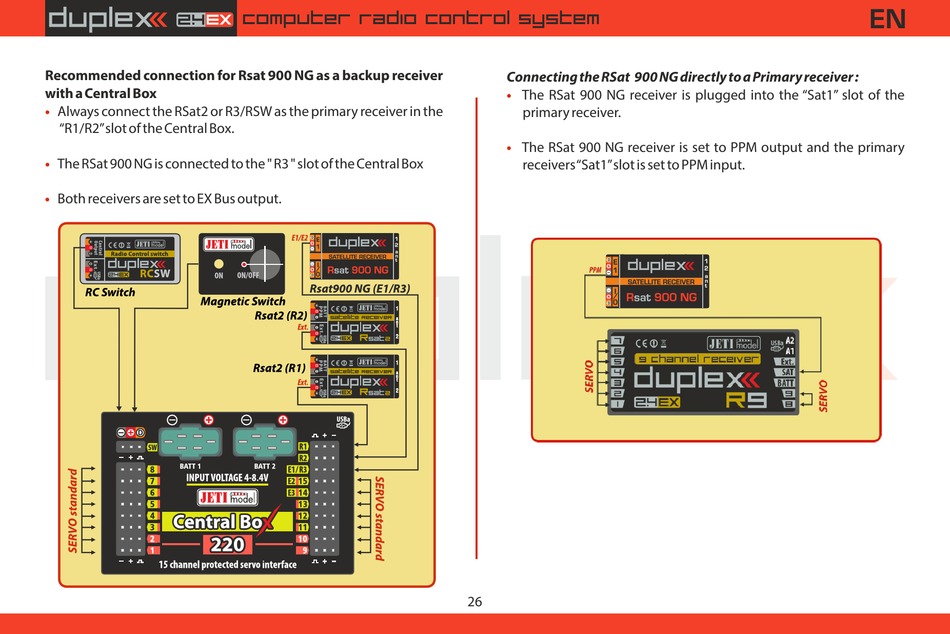

Recommended connection for Rsat 900 NG as a backup receiver
with a Central Box
• Always connect the RSat2 or R3/RSW as the primary receiver in the
"R1/R2" slot of the Central Box.
• The RSat 900 NG is connected to the " R3 " slot of the Central Box
• Both receivers are set to EX Bus output.
computer radio control system
Connecting the RSat 900 NG directly to a Primary receiver :
• The RSat 900 NG receiver is plugged into the "Sat1" slot of the
primary receiver.
• The RSat 900 NG receiver is set to PPM output and the primary
receivers "Sat1" slot is set to PPM input.
