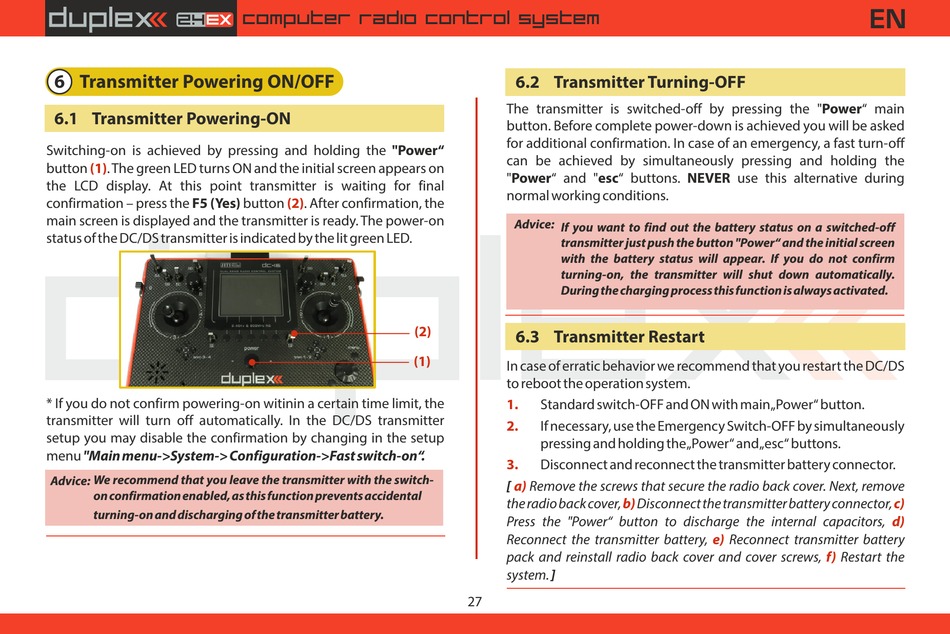

6 Transmitter Powering ON/OFF

6.1 Transmitter Powering-ON

Switching-on is achieved by pressing and holding the "Power"
button (1) . The green LED turns ON and the initial screen appears on
the LCD display. At this point transmitter is waiting for final
confirmation – press the F5 (Yes) button
main screen is displayed and the transmitter is ready. The power-on
status of the DC/DS transmitter is indicated by the lit green LED.
* If you do not confirm powering-on witinin a certain time limit, the
transmitter will turn off automatically. In the DC/DS transmitter
setup you may disable the confirmation by changing in the setup
menu "Main menu->System-> Configuration->Fast switch-on".
We recommend that you leave the transmitter with the switch-
Advice:
on confirmation enabled, as this function prevents accidental
turning-on and discharging of the transmitter battery.
computer radio control system
(2) . After confirmation, the
(2)
(1)

6.2 Transmitter Turning-OFF

The transmitter is switched-off by pressing the "Power" main
button. Before complete power-down is achieved you will be asked
for additional confirmation. In case of an emergency, a fast turn-off
can be achieved by simultaneously pressing and holding the
"Power" and "esc" buttons. NEVER use this alternative during
normal working conditions.
Advice:
If you want to find out the battery status on a switched-off
transmitter just push the button "Power" and the initial screen
with the battery status will appear. If you do not confirm
turning-on, the transmitter will shut down automatically.
During the charging process this function is always activated.

6.3 Transmitter Restart

In case of erratic behavior we recommend that you restart the DC/DS
to reboot the operation system.
1. Standard switch-OFF and ON with main „Power" button.
2. If necessary, use the Emergency Switch-OFF by simultaneously
pressing and holding the „Power" and „esc" buttons.
3. Disconnect and reconnect the transmitter battery connector.
[ a) Remove the screws that secure the radio back cover. Next, remove
the radio back cover, b) Disconnect the transmitter battery connector,
Press the "Power" button to discharge the internal capacitors,
Reconnect the transmitter battery,
pack and reinstall radio back cover and cover screws,
system. ]
27
EN
e) Reconnect transmitter battery
f) Restart the
c)
d)
