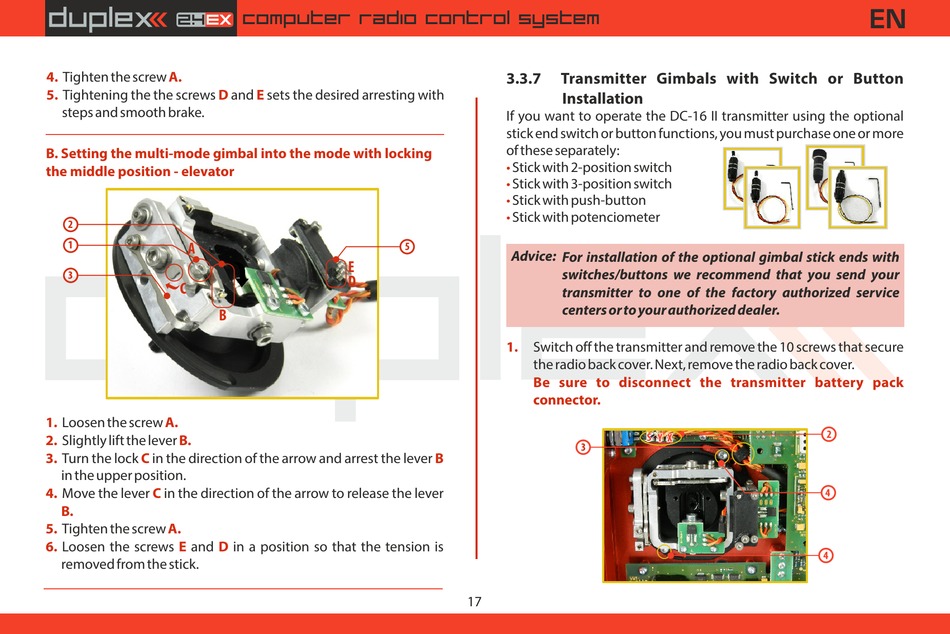

Transmitter Gimbals With Switch Or Button Installation - JETI model Duplex DC-16 II User Manual

4. Tighten the screw A.
5. Tightening the the screws D
steps and smooth brake.
B. Setting the multi-mode gimbal into the mode with locking
the middle position - elevator
2
1
A
3
C
B
1. Loosen the screw A.
2. Slightly lift the lever B.
3. Turn the lock in the direction of the arrow and arrest the lever C
in the upper position.
4. Move the lever in the direction of the arrow to release the lever C
B.
5. Tighten the screw A.
6. Loosen the screws E and D
removed from the stick.
computer radio control system
and sets the desired arresting with E
5
E
D
in a position so that the tension is
3.3.7 Transmitter Gimbals with Switch or Button
Installation
If you want to operate the DC-16 II transmitter using the optional
stick end switch or button functions, you must purchase one or more
of these separately:
• Stick with 2-position switch
• Stick with 3-position switch
• Stick with push-button
• Stick with potenciometer
Advice:
For installation of the optional gimbal stick ends with
switches/buttons we recommend that you send your
transmitter to one of the factory authorized service
centers or to your authorized dealer.
1. Switch off the transmitter and remove the 10 screws that secure
the radio back cover. Next, remove the radio back cover.
Be sure to disconnect the transmitter battery pack
connector.
3
B
17
S S S Y Y Y X X X
4
4
EN
2
