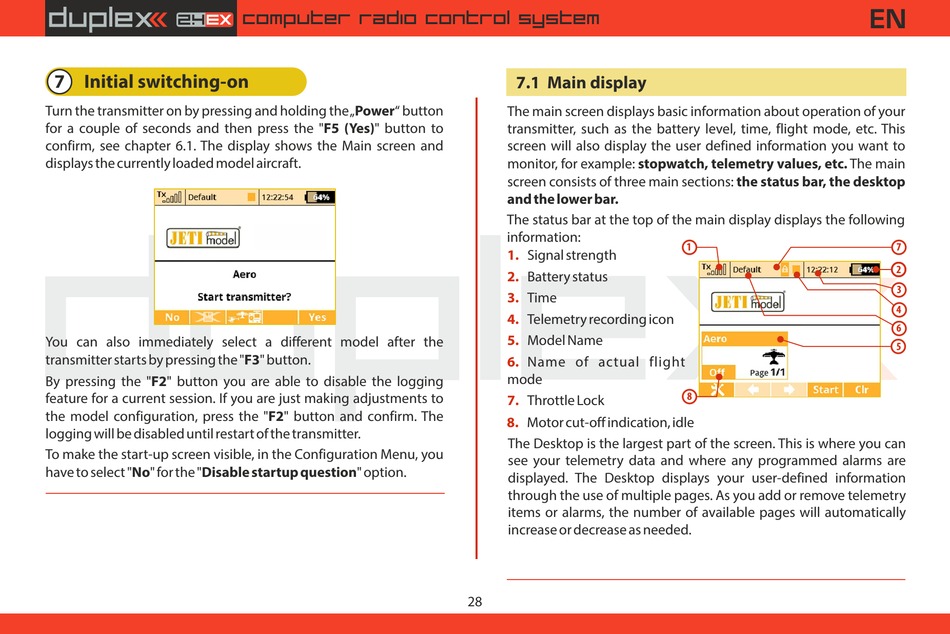

7 Initial switching-on
Turn the transmitter on by pressing and holding the „Power" button
for a couple of seconds and then press the "F5 (Yes)" button to
confirm, see chapter 6.1. The display shows the Main screen and
displays the currently loaded model aircraft.
You can also immediately select a different model after the
transmitter starts by pressing the "F3" button.
By pressing the "F2" button you are able to disable the logging
feature for a current session. If you are just making adjustments to
the model configuration, press the "F2" button and confirm. The
logging will be disabled until restart of the transmitter.
To make the start-up screen visible, in the Configuration Menu, you
have to select "No" for the "Disable startup question" option.
computer radio control system
7.1 Main display
The main screen displays basic information about operation of your
transmitter, such as the battery level, time, flight mode, etc. This
screen will also display the user defined information you want to
monitor, for example: stopwatch, telemetry values, etc. The main
screen consists of three main sections: the status bar, the desktop
and the lower bar.
The status bar at the top of the main display displays the following
information:
1.
Signal strength
2.
Battery status
3.
Time
4.
Telemetry recording icon
5.
Model Name
6.
Name of actual flight
mode
7.
Throttle Lock
8.
Motor cut-off indication, idle
The Desktop is the largest part of the screen. This is where you can
see your telemetry data and where any programmed alarms are
displayed. The Desktop displays your user-defined information
through the use of multiple pages. As you add or remove telemetry
items or alarms, the number of available pages will automatically
increase or decrease as needed.
28
1
8
EN
7
2
3
4
6
5
