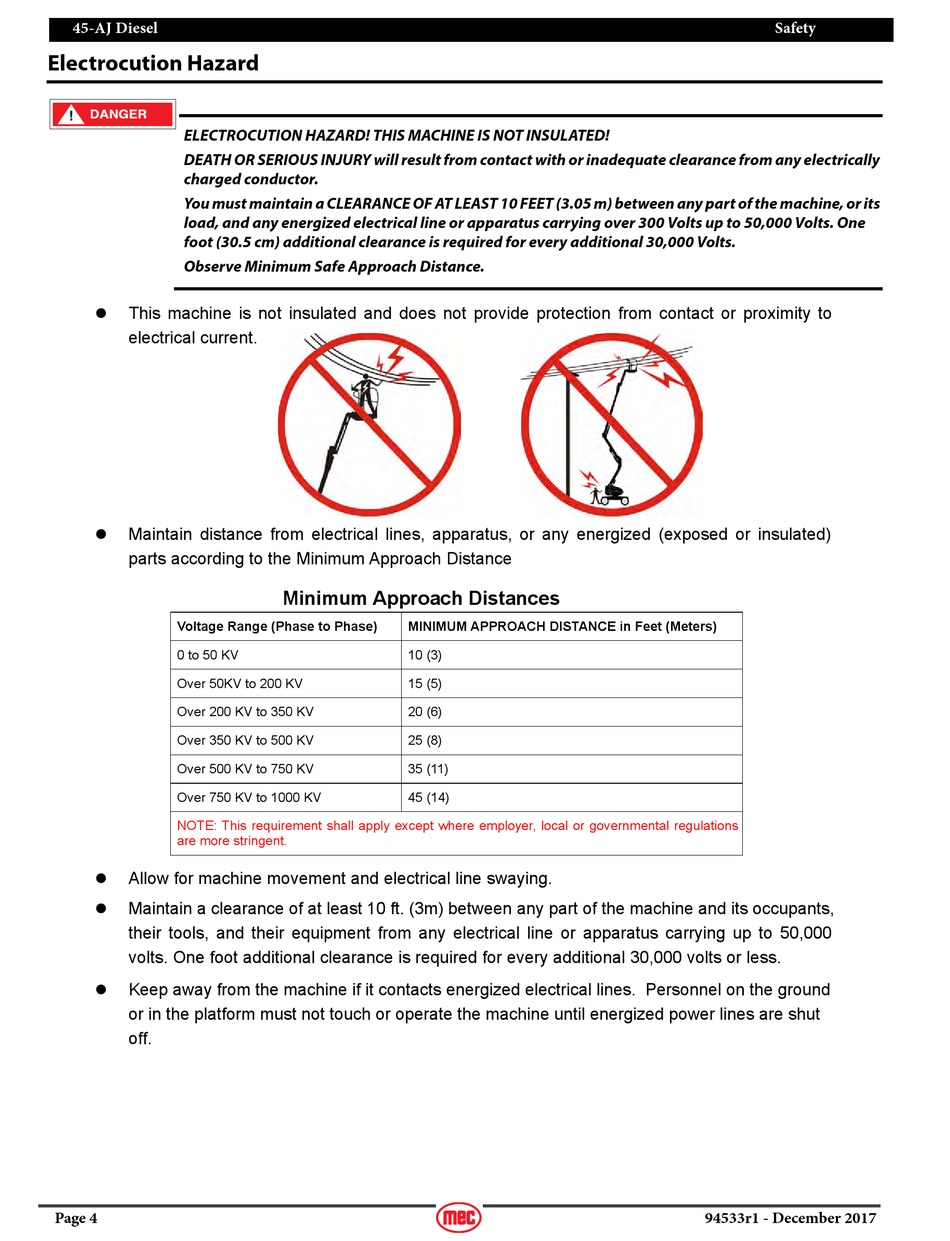

Electrocution Hazard

ELECTROCUTION HAZARD! THIS MACHINE IS NOT INSULATED!
DEATH OR SERIOUS INJURY will result from contact with or inadequate clearance from any electrically
charged conductor.
You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m) between any part of the machine, or its
load, and any energized electrical line or apparatus carrying over 300 Volts up to 50,000 Volts. One
foot (30.5 cm) additional clearance is required for every additional 30,000 Volts.
Observe Minimum Safe Approach Distance.
This machine is not insulated and does not provide protection from contact or proximity to

electrical current.
Maintain distance from electrical lines, apparatus, or any energized (exposed or insulated)

parts according to the Minimum Approach Distance
Voltage Range (Phase to Phase)
0 to 50 KV
Over 50KV to 200 KV
Over 200 KV to 350 KV
Over 350 KV to 500 KV
Over 500 KV to 750 KV
Over 750 KV to 1000 KV
NOTE: This requirement shall apply except where employer, local or governmental regulations
are more stringent.
Allow for machine movement and electrical line swaying.

Maintain a clearance of at least 10 ft. (3m) between any part of the machine and its occupants,

their tools, and their equipment from any electrical line or apparatus carrying up to 50,000
volts. One foot additional clearance is required for every additional 30,000 volts or less.
Keep away from the machine if it contacts energized electrical lines. Personnel on the ground

or in the platform must not touch or operate the machine until energized power lines are shut
off.
Page 4
Minimum Approach Distances
MINIMUM APPROACH DISTANCE in Feet (Meters)
10 (3)
15 (5)
20 (6)
25 (8)
35 (11)
45 (14)
