If a standard 19-inch rack is not available, you can place the device on a clean, flat workbench.
To mount the device on a workbench:
Unpack the device and its accessories.
1.
Place the device with bottom up. Clean the recessed areas on the chassis bottom with a dry
2.
cloth.
Attach the four rubber feet to the recessed areas on the chassis bottom.
3.
Place the device with upside up on the workbench.
4.

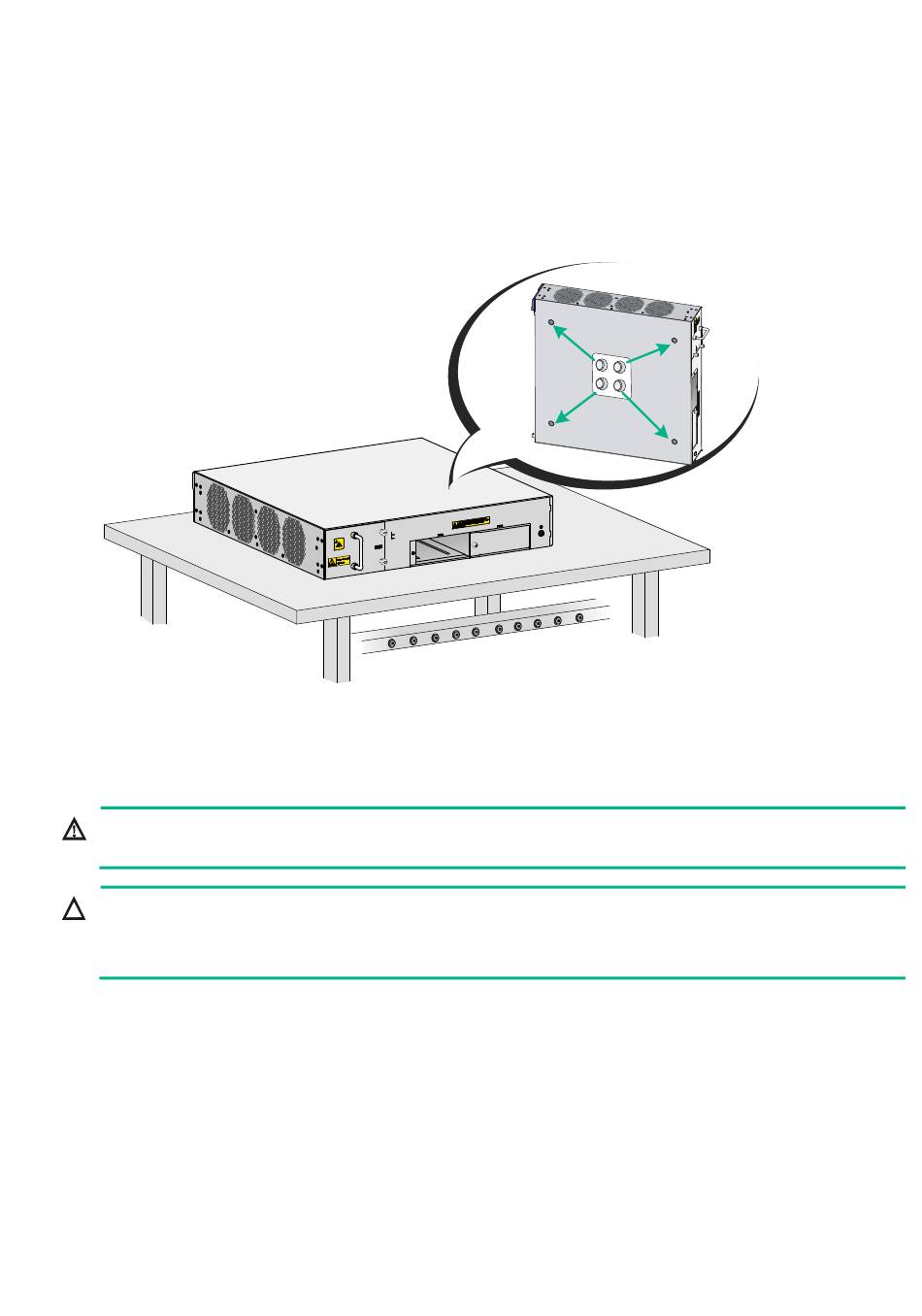

Figure 6 Mounting the device on a workbench

Installing the device in a standard 19-inch rack

WARNING!
To avoid bodily injury and device damage, use a minimum of two persons to install the device.
CAUTION:
• Ensure a clearance of 1 RU (44.45 mm/1.75 in) between devices in the rack for heat dissipation.
• The device is heavy. Use mounting brackets together with a rack shelf to rack-mount the device.
To install the device in a standard 19-inch rack:
Wear an ESD wrist strap and make sure the wrist strap makes good skin contact and is reliably
1.
grounded.
Unpack the device and accessories.
2.
Use a mounting bracket to mark cage nut installation positions on the front rack posts and install
3.
cage nuts.
