PC CONFIGURATOR
With configurator software, settings shown below are available.
Refer to the software manual of R3CON for detailed operation.
■ NETWORK MODULE SETTING
PARAMETER
Time (no communication time)
IP Address
Subnet Mask
Default Gateway

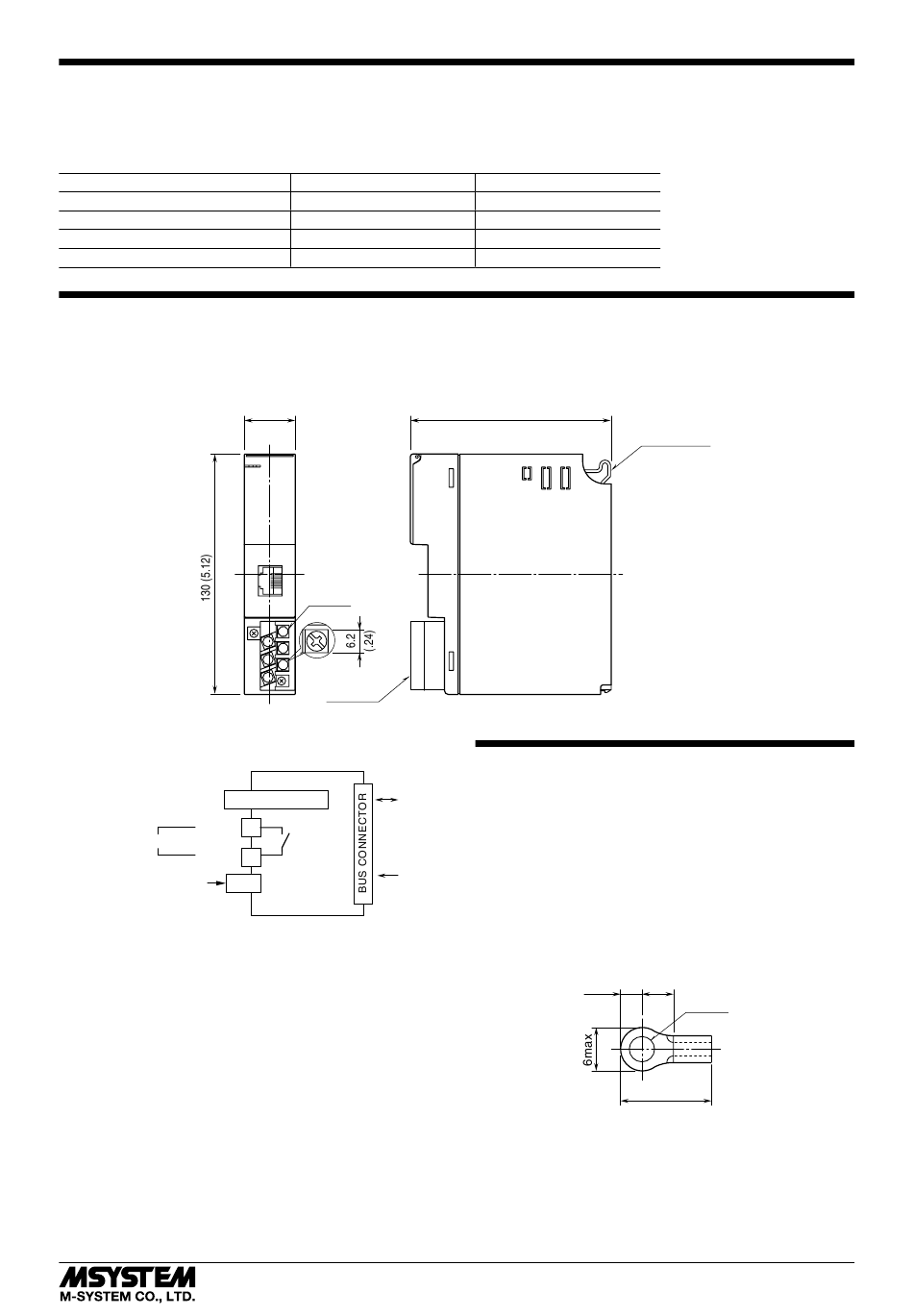

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.
■ EXTERNAL DIMENSIONS unit: mm (inch)
■ CONNECTION DIAGRAM
RJ-45 MODULAR JACK
EtherNet/IP
+
RUN
RUN CONTACT OUTPUT
RUN
JACK
CONFIGURATION JACK

AVAILABLE RANGE

0.2 – 3200.0 (sec.)
0.0.0.0 – 255.255.255.255
0.0.0.0 – 255.255.255.255
0.0.0.0 – 255.255.255.255
27.5 (1.08)
6–M3
SCREW
1
4
2
5
3
TERMINAL
6
COVER
INTERNAL
BUS
1
4
INTERNAL
POWER
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

DEFAULT SETTING

3.0 (sec.)
192.168.0.1
255.255.255.0
192.168.0.1
109 (4.29)
POSITIONING
GUIDE

WIRING INSTRUCTIONS

■ M3 SCREW TERMINAL
Torque: 0.5 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable. Solder-
less terminals with insulation sleeve do not fit.
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
Applicable wire size: 0.75 to 1.25 mm
3max
4min
12max
R3-NEIP1
2
3.2 dia.
(mm)
