M-system R3-NMW1F Instruction Manual

INSTRUCTION MANUAL
MODBUS INTERFACE MODULE
(Modbus Wired Communication, Modbus-RTU Transparent 900 MHz Band Devices Use)

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Modbus interface module....................................................(1)
Antenna ...............................................................................(1)
Terminating resistor (110 Ω, 0.25 W) .................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
For information on the introduction of wireless device, refer
to the 900 MHz band wireless device users manual (EM-
9085).
POINTS OF CAUTION
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
100 – 240V AC rating: 85 – 264V, 47 – 66 Hz,
approx. 15VA at 100V AC
approx. 20VA at 200V AC
approx. 21.5VA at 240V AC
24V DC rating: 24V ±10%, approx. 8.5W
■ HOT-SWAPPABLE MODULES
• The module can be replaced while the power is ON. Be
sure to replace it when the module is not communicat-
ing with a host, as it may affect the system. Replacing
multiple modules at once may greatly change line voltage
levels. We highly recommend to replace them one by one.
■ ENVIRONMENT
• Indoor use.
• Attach the antenna to the unit.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.

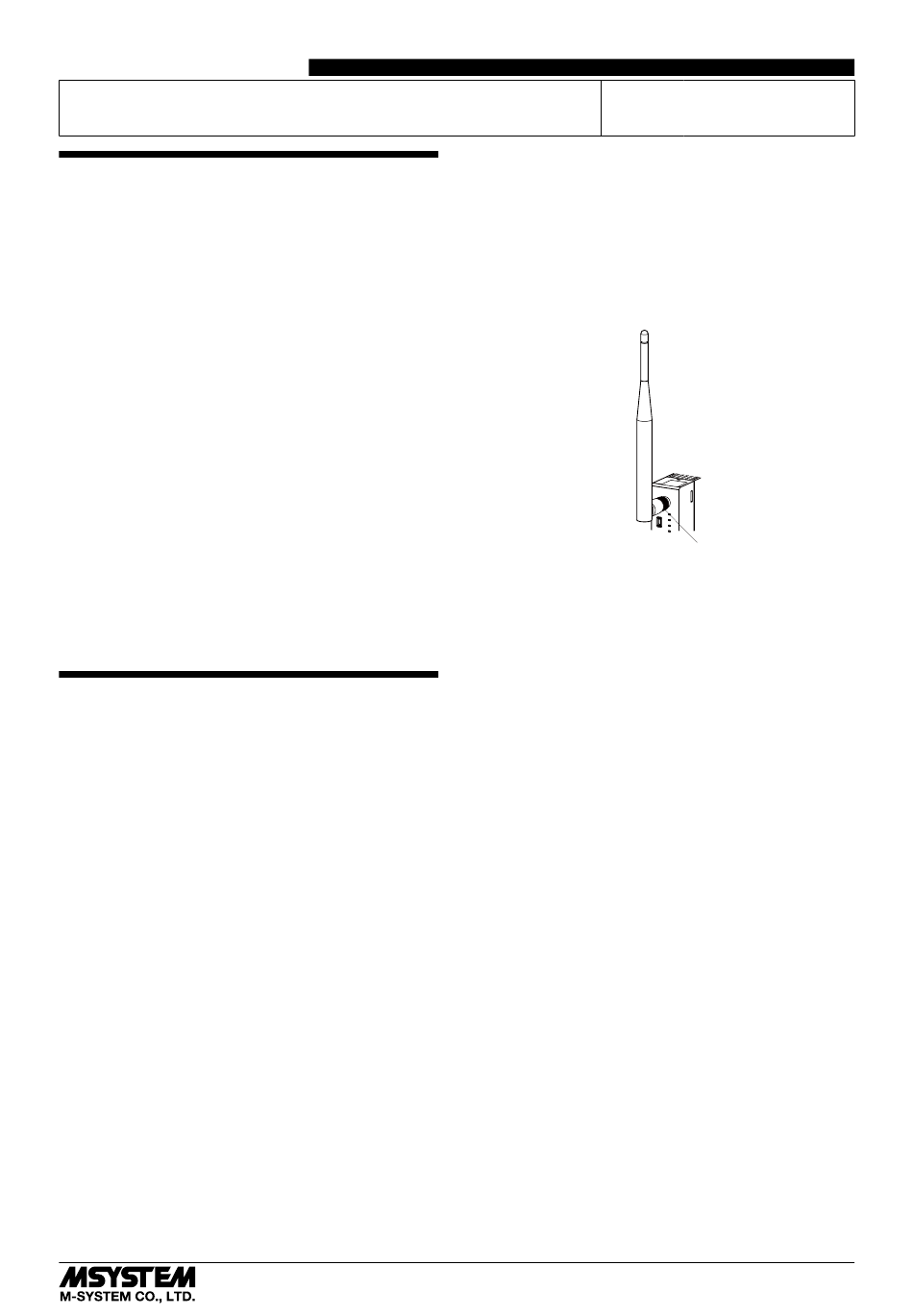

• Attachment and adjustment of sleeve antenna: Loosen
the connector (See the below figure), and rotate the an-
tenna. Holding the antenna vertically, tighten the connec-
tor by hand. Make sure to fix the antenna firmly.
• Attachment of rooftop antenna: The magnet on the bottom
face allows the antenna to be attached on a metal box and
such. To obtain optimum performance from the antenna,
attach it on a metal plate (recommended dimension: 500
mm × 500 mm or more). However, in the case of connect-
ing FE1 or FG of the power supply module to a metal
plate, the isolation between FE1 or FG and the internal
bus or internal power or antenna connector will be lost.
Tighten the connector with a specified torque (0.9 N∙m).
As a guide, finger-tighten the connector until it stops, and
then rotate it 10 to 15 degrees with a wrench. Do not force
the cable to bend beyond the acceptable bending radius
of 3 cm.
• Please note that using 7.5 m coaxial cable (model: CX-
SAC0SAD0Q0750) (OKI) for extension decreases trans-
mission distance.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
R3-NMW1F
Connector
EM-8286 P. 1 / 10
