the GND. The reference circuit about 6 pins SIM card illustrate as following figure.

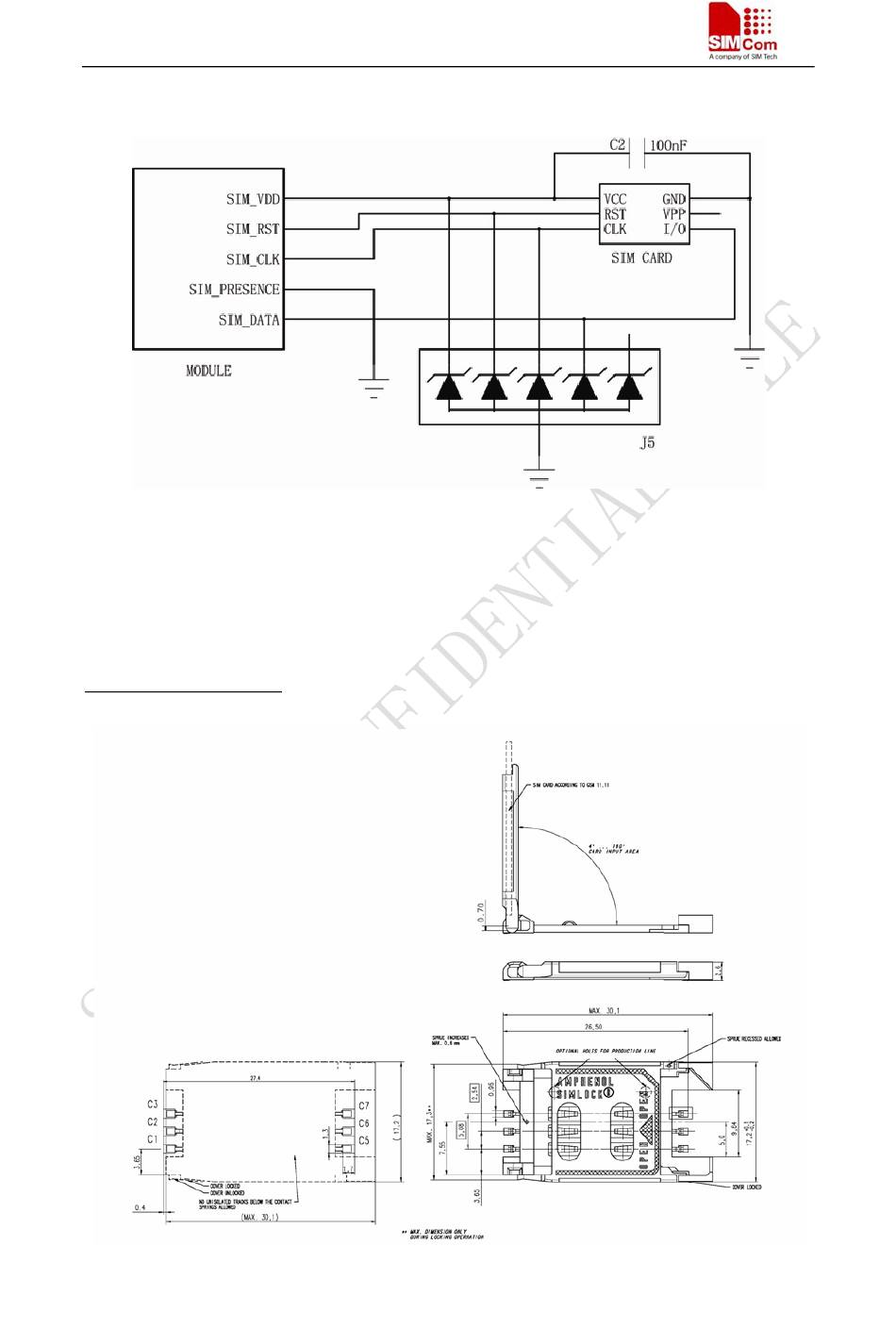

Figure 26: SIM interface reference circuit with 6-pin SIM card
3.11.2 Design considerations for SIM card holder
For 6-pin SIM card holder, we recommend to use Amphenol C707-10M006 512 2 .You can visit
http://www.amphenol.com for more information about the holder.
Figure 27: Amphenol C707-10M006 512 2 SIM card holder
55
SIM548C_HD_V1.01
09.05.2008
