6.4.2.1 Power down Mode

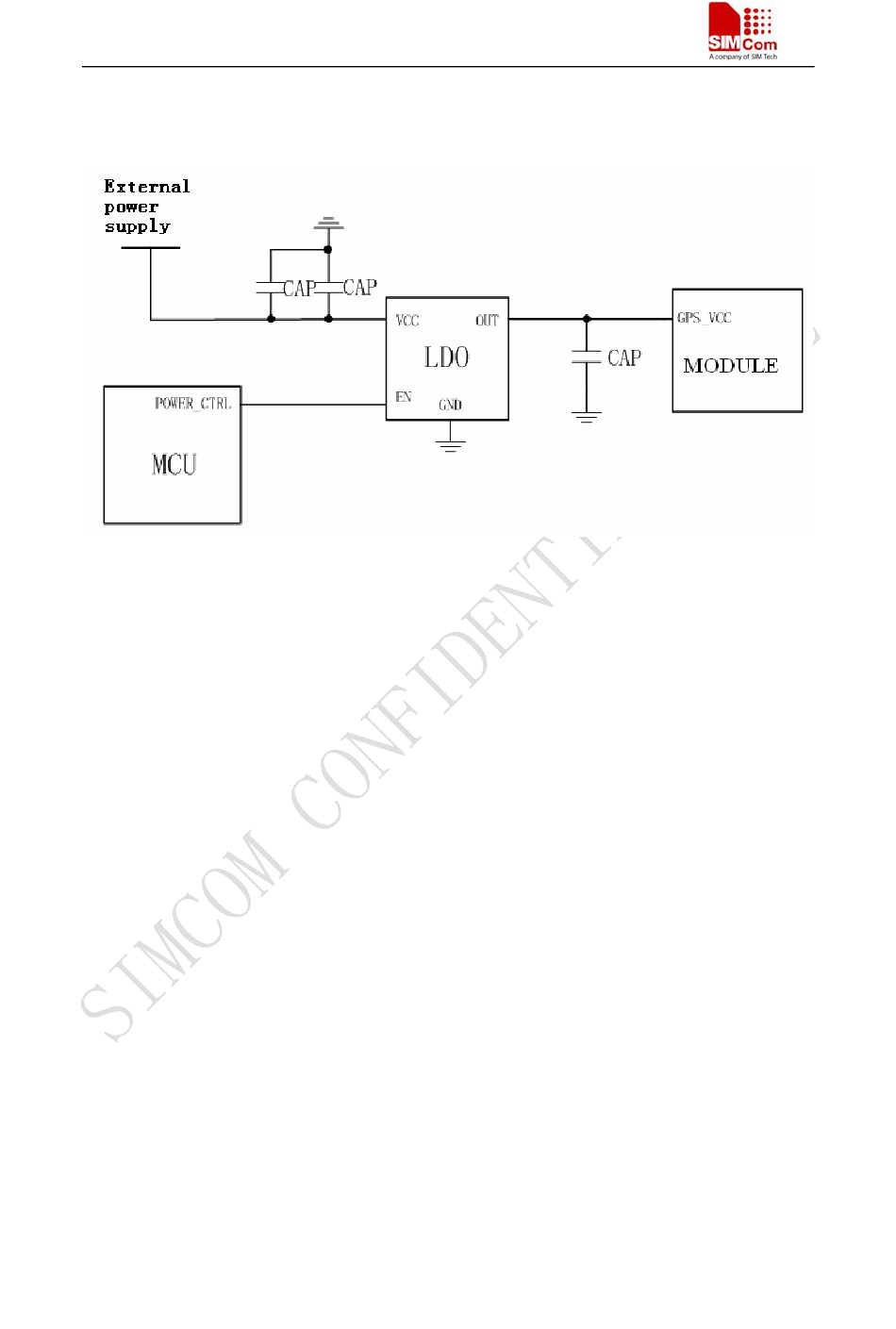

The circuit of this mode is shown in the figure:

Figure 39: Power Down mode

When the user wants to save more current consumption of the GPS part, he can pull down the
POWER_CTRL of the MCU to stop the LDO outputting. And this operation will cut off the
power of the GPS part. Note that the GPS_VRTC must be kept on.
6.4.2.2 Push-To-Fix mode
The circuit of this mode is shown in figure 40.
