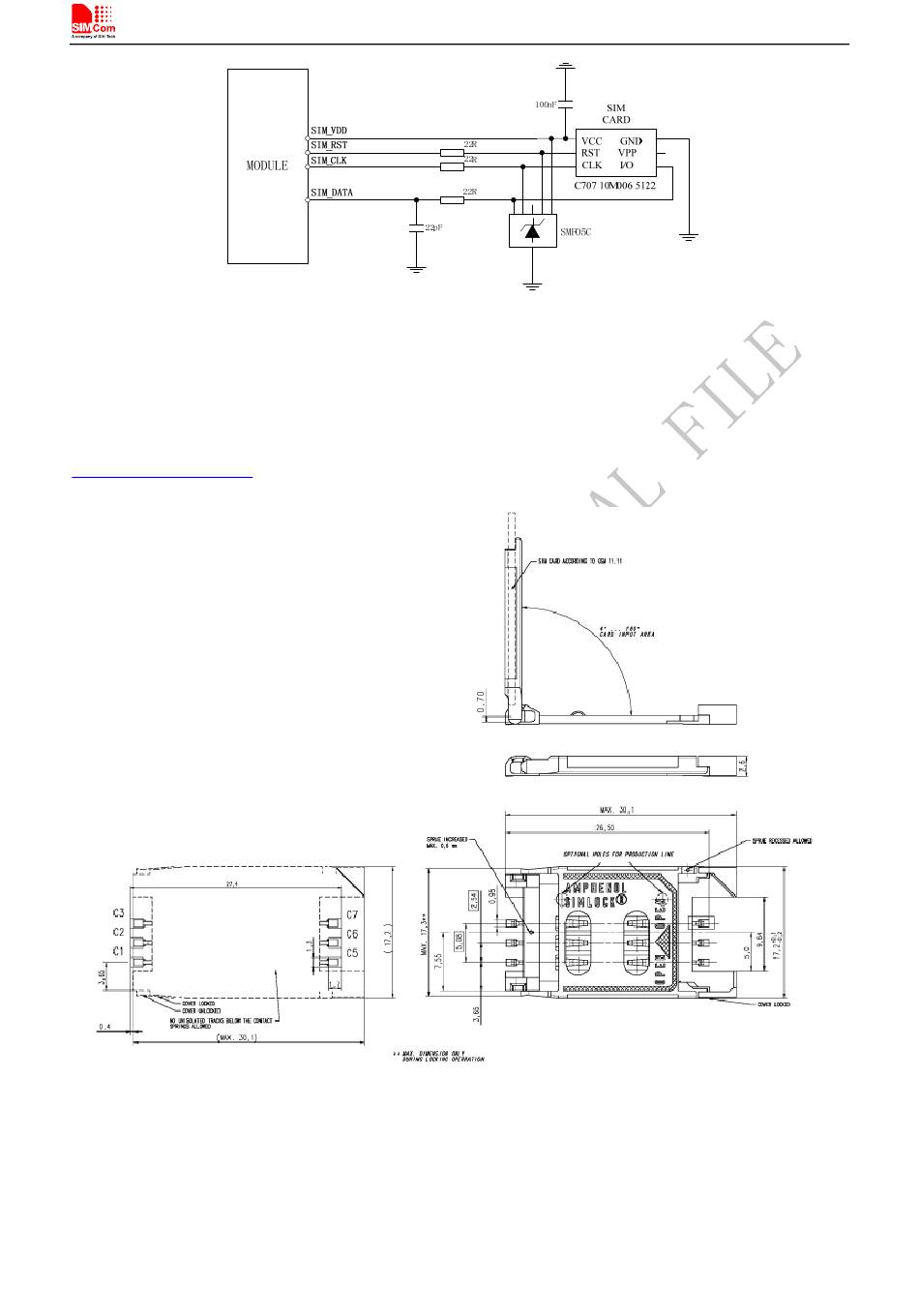

Figure 29: Reference circuit of the 6-pin SIM card holder
4.8.2
Design Considerations for SIM Card Holder
For 6-pin SIM card holder, SIMCom recommends to use Amphenol C707 10M006 5122 .User can visit
http://www.amphenol.com
for more information about the holder.
Figure 30: Amphenol C707 10M006 5122 SIM card holder
35
SIM900D_Hardware Design_V2.02
2012-05-07
