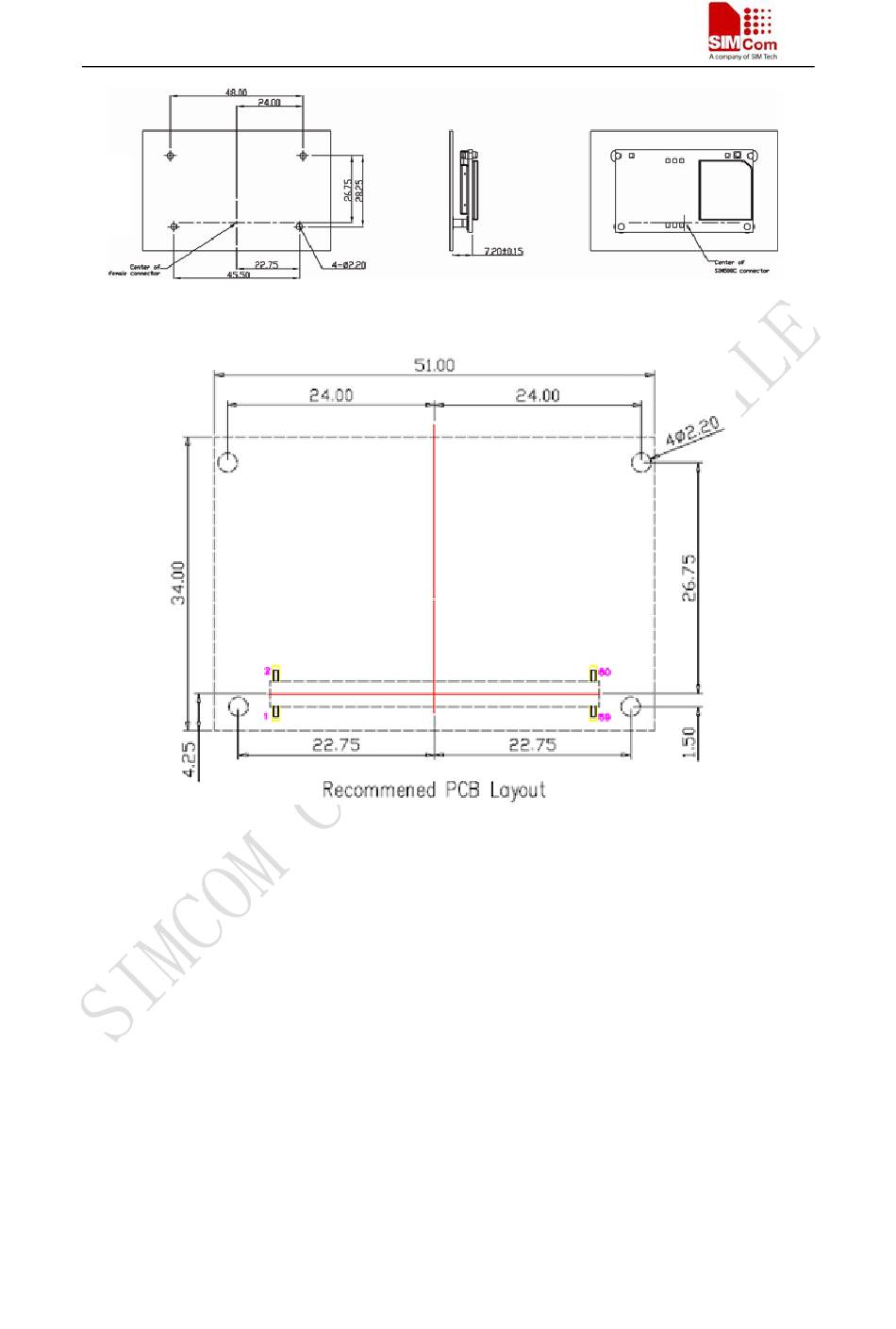

Figure 43: Mount the module（Unit: mm）
Figure 44: Mechanical dimensions of module PCB decal（Unit: mm）

7.2 Mounting the module onto the application platform

Use the connector ASTRON1491060-09T-R and four pads to fix the SIM548C onto customer
platform.

7.3 Board-to-board connector

We recommend ASTRON Company's1491060-09T-R and 1590060-09T-R as the board-to-board
connector. These high density SMT connectors are designed for parallel PCB-to-PCB
applications.
