The circuit design of the power supply depends strongly on the power source where this power is
drained. The following figure is the reference design of +5V input source power supply. The
designed output for the power supply is 4V, thus a linear regulator can be used. If there's a big
difference between the input source and the desired output (VBAT), a switching converter power
supply will be preferable because of its better efficiency especially with the 2A peak current in
burst mode of the module.
The single 3.6V Li-Ion cell battery type can be connected to the power supply of the module
VBAT directly. But the Ni_Cd or Ni_MH battery types must be used carefully, since their
maximum voltage can rise over the absolute maximum voltage for the module and damage it.

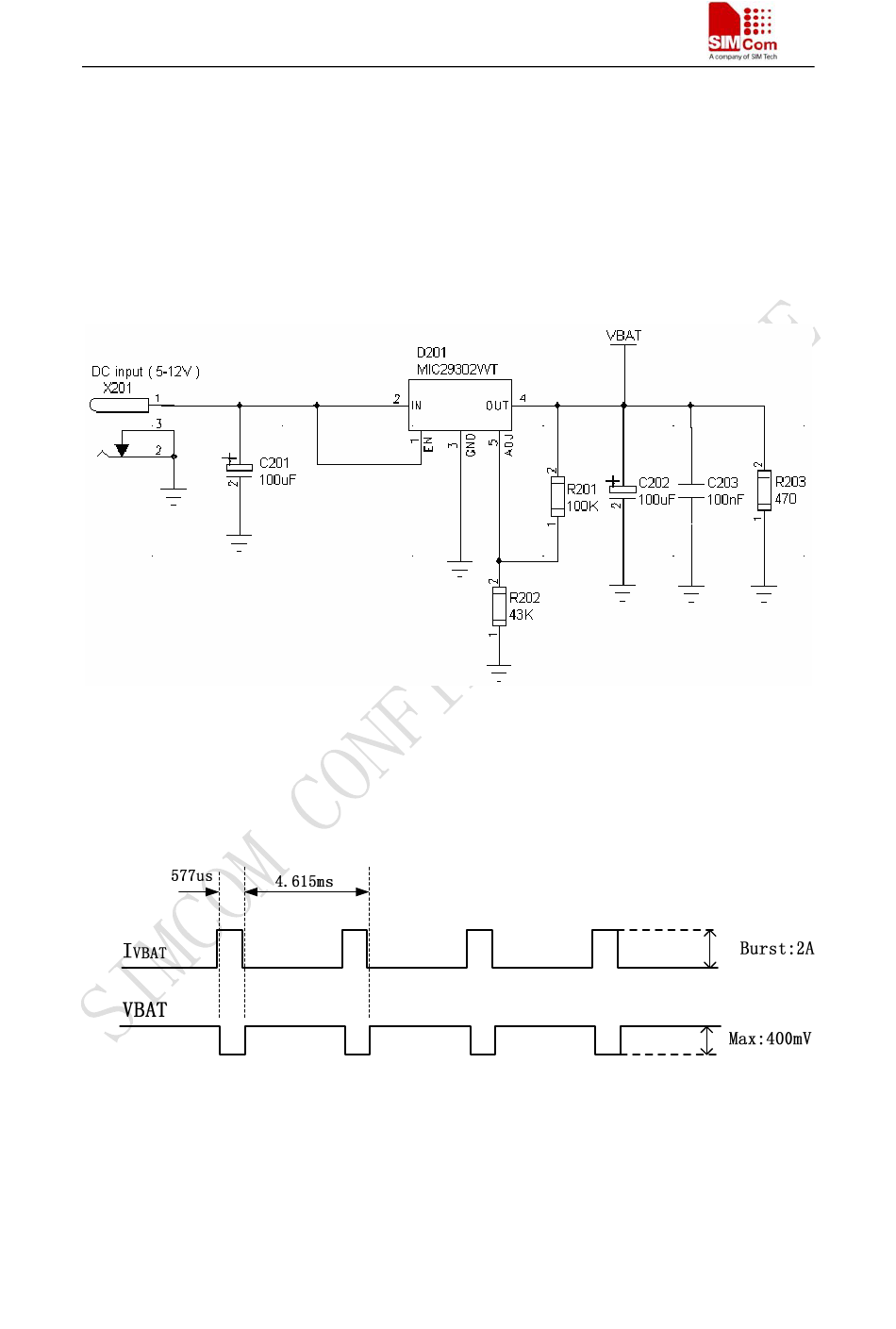

Figure 3: Reference circuit of the source power supply input

The following figure is the VBAT voltage ripple wave at the maximum power transmit phase, the
test condition is VBAT=4.0V, VBAT maximum output current =2A, C =100µF tantalum
A
capacitor (ESR=0.7Ω) and C =1µF.
B
Figure 4: VBAT voltage drop during transmit burst
