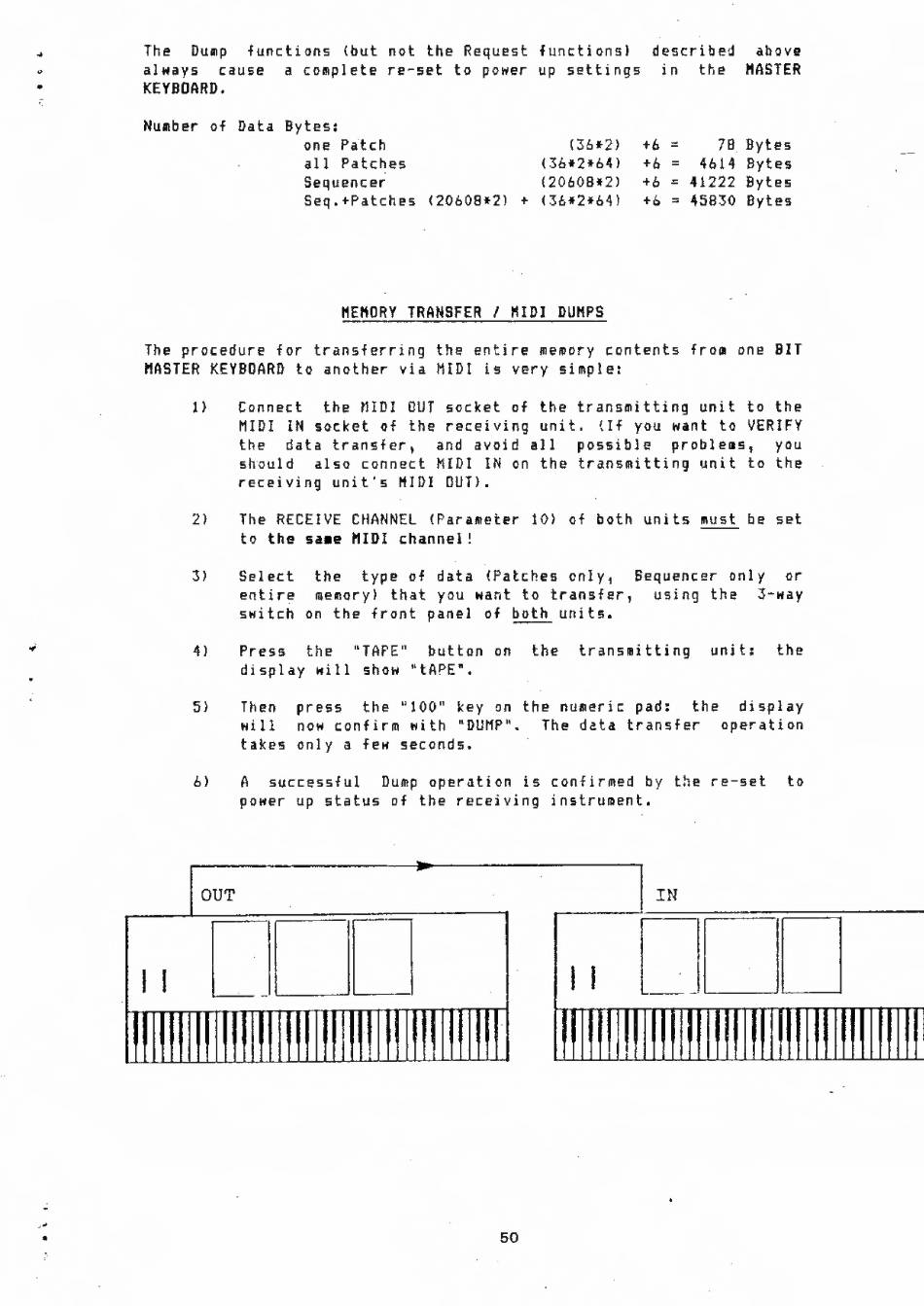

Appendix Ca He•Ory Transfers - bit MIDI MASTER KEYBOARD Owner's Manual

..• The
Du11p functions (but not the Request functions)
described above
always
cause
a complete re-set to power up settings in the
NASTER
•
KEYBOARD,
Number of Data Bytes:
one Patch {36*2)
+6
=
78 Bytes
all Patches (3b*2*64) +b
=
4614 Bytes
Sequencer
(20608 .•. 2)
+6
=
41222 Bytes
Seq.+Patches
(20608 .•.
21 +
( 36*2*64)
+b:: 45830 Bytes
HENORY TRANSFER
I
MIDI DUHPS
The procedure for transferring the entire memory contents fro~ one BIT
MASTER KEYBOARD to another via MIDI is very simple:
1) Connect the ~IDI OUT socket of the transmitting unit to the
MIDI IN socket of the receiving unit. {If you want to VERIFY
the data
transfer
1
and
avoid all possible problems, you
sh~uld also connect MIDI IN on the transmitting unit to
the
receiving unit's
HIDI DUT).
21 The RECEIVE CHANNEL {Parameter 10) of both units must be set
to the sa•e HIDI channel!
3) Select the
type
of data (Patches cnly
1
Sequencer only or
entire memory) that you want to transfer, using the 3-way
switch on the front panel of both units.
4)
Press the "TAPE" button on the transmitting unit: the
display will show
"tAPEw,
5)
Then press the "100" key on the numeric pad: the display
will now confirm with "DUMP".
The
data transfer operation
takes only a few seconds.
6) A successful Dump operation is confirmed
by
the re-set to
power up status of the receiving instru~ent •
•••
I
OUT
Il
[D[J
I I
r
I
I
IN
[IDD
,
. .
•
50
