PSP-Nx-v4 Connectivity Guide
Note: All information in this section comes directly from the PSP-Nx-v4 User Guide.
Trouble Shooting PSP-Nx-v4 and Joystick Connectivity
This procedure assumes DreamGEAR MagnaForce Joystick. If you have a
different joystick, the details may vary.
Before you begin this procedure, ensure that you have downloaded and
reviewed the User Guide from following location:
http://mindsensors.com/pdfs/PSP-Nx-v4-User-Guide.pdf
Ensure that you have inserted
batteries in the Joystick. And
the power switch on your
joystick is in ON position.

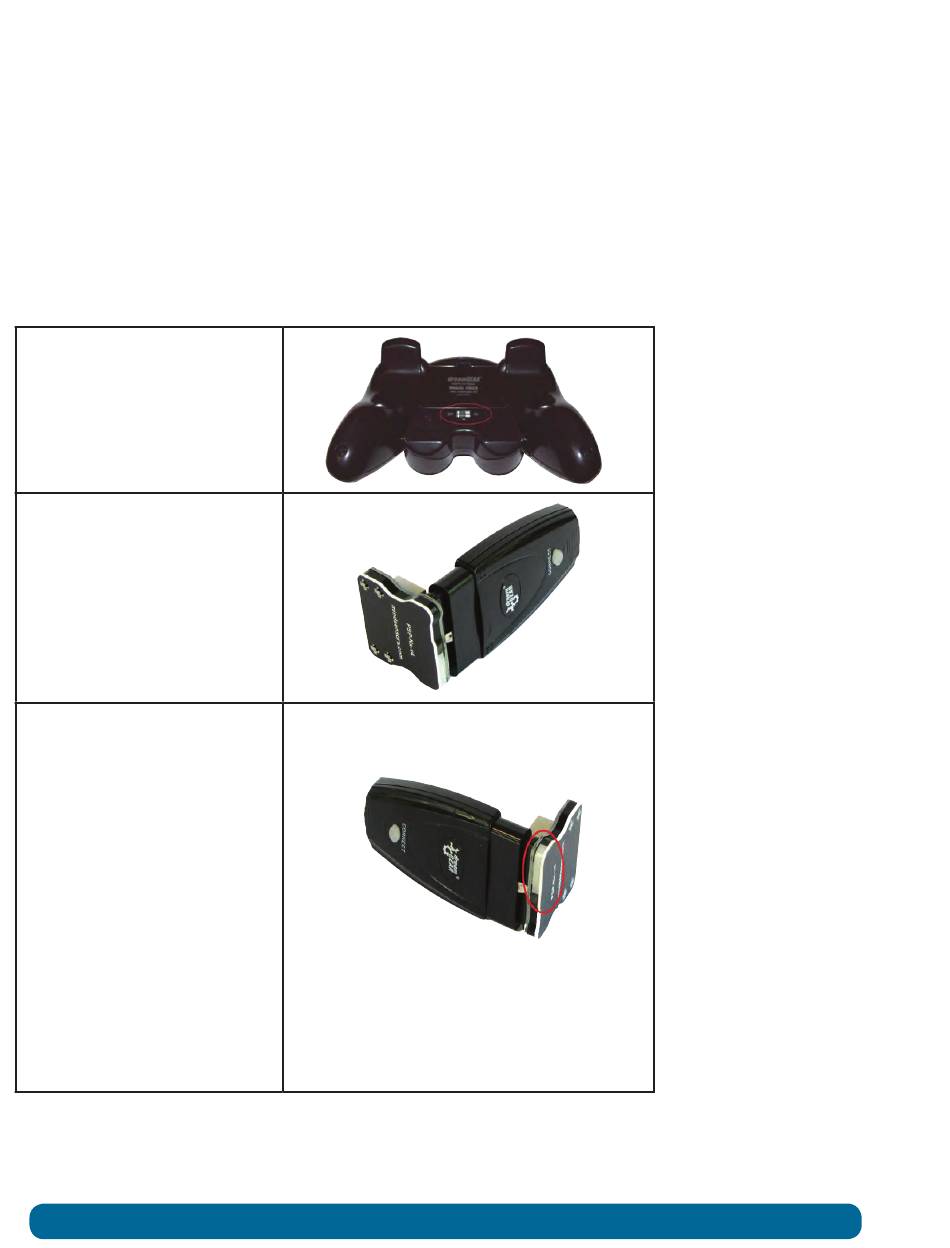

Adjacent picture will show
you the location of the power
switch.
Adjacent picture shows
how to connect PSP-Nx-v4
to the receiver. Ensure that
the receiver is engaged in
correct orientation, and is
fully inserted in the PSP-Nx-v4
socket.
PSP-Nx-v4 light
Connect PSP-Nx-v4 to NXT/
EV3 and connect the Receiver
to PSP-Nx. Power on the NXT/
EV3 (do not run any program
yet). A blinking Blue light on
PSP-Nx means, the receiver
is not connected properly
to PSP-Nx. If the receiver is
connected properly to PSP-
Nx, and NXT/EV3 is powered
ON (without running any
program), PSP-Nx will have no
lights. Adjacent picture shows
location of the light on PSP-
Nx-v4.
