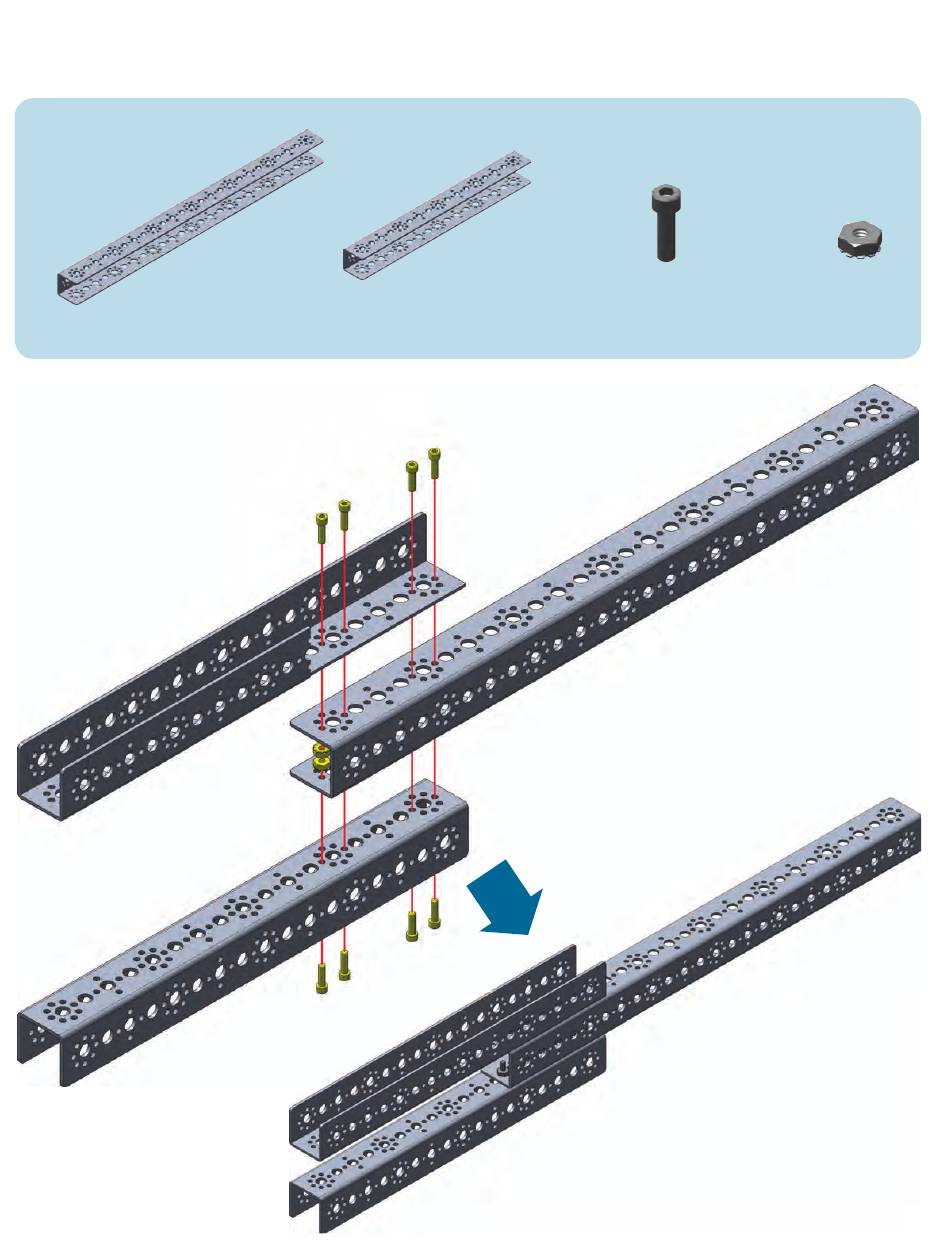

Right Leg Step 2
Parts Needed
1x
416 mm Channel
Cutaway section on 288 mm
Channel is only illustrated to
show detail. This part is not
meant to be cut.
Nuts & Bolts used in this
step are highlighted in
YELLOW
22
22
2x
288 mm Channel
8x
1/2" Socket
Head Cap Screw
8x
Kep Nut
