Target Windham Assembly Instructions Manual page 12

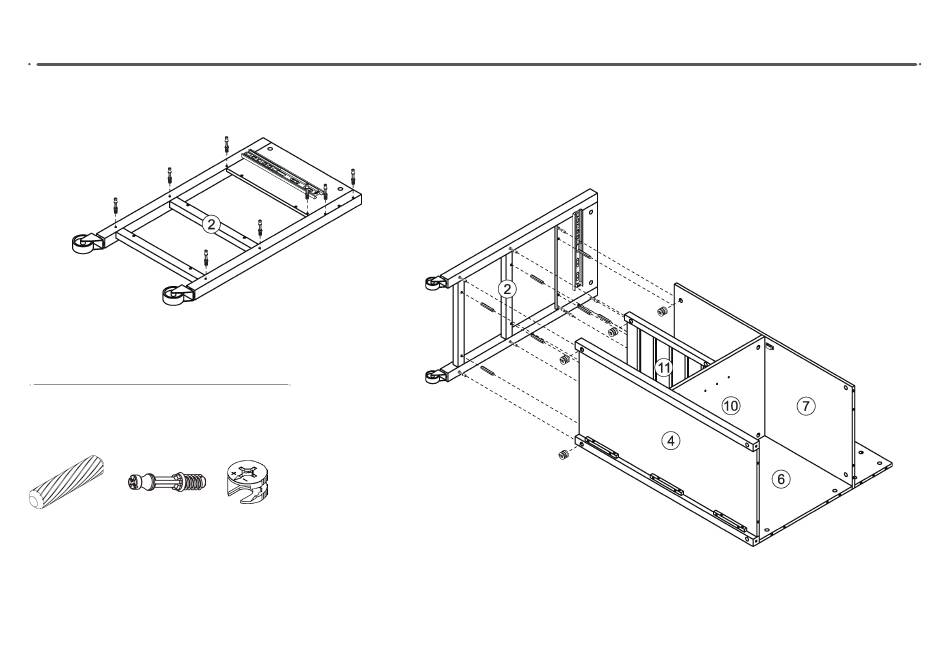

step 6: attach left side frame
(H1) x 7 (H2) x 8
wooden dowel cam bolt
6.1. Carefully tap small wooden dowels into place. Leave 1/2" of the dowels sticking out. Carefully tap small wooden dowels into place. Leave 1/2" of the dowels sticking out.
6.2. Screw-In cam bolts must be screwed down flush.
6.3. Refer to page 6 for instructions on how to use the cam lock system.
6.4. Gently press casters into place, a hammer may be used to tap the casters into place.
12
(H3) x 8
cam
