Commissioning - SOMFY White LED Receiver io Instructions Manual

White LED Receiver io
1) Switch off the mains power supply.

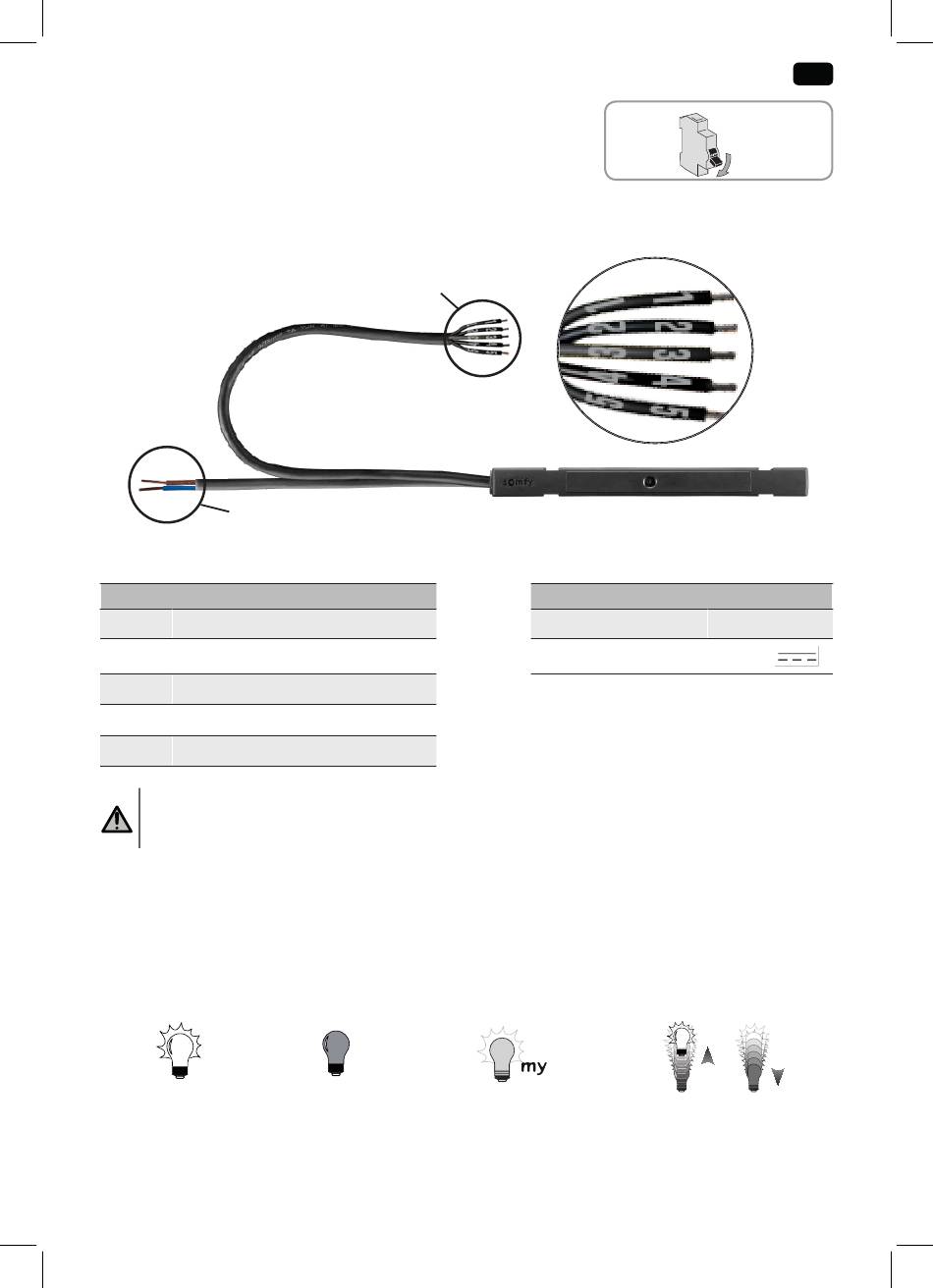

2) Connect the white LED receiver io to one or more white LED lights (A) and to the power supply
unit (B), observing the proper polarity in accordance with the table and illustration below.
mm
2
Ø ≥ 1
B
A
Wire 1 LED light no.1
Wire 2 LED light no.2
Wire 3 LED light no.3
Wire 4 LED light no.4
Wire 5 V+
Warning
If fewer than 4 LED lights are connected, insulate the unconnected wires of the
white LED receiver io using individual
3) Secure the white LED receiver io (using cable retainers, for example).
4) Connect the 12 V or 24 V power supply unit to the mains.

2.2. COMMISSIONING

This guide only describes commissioning using a 1W io control point.
For commissioning using any other io control point, refer to the corresponding guide.
LED on
