SOMFY Axroll Installation Manual

GB
Installation Manual
Axroll NS

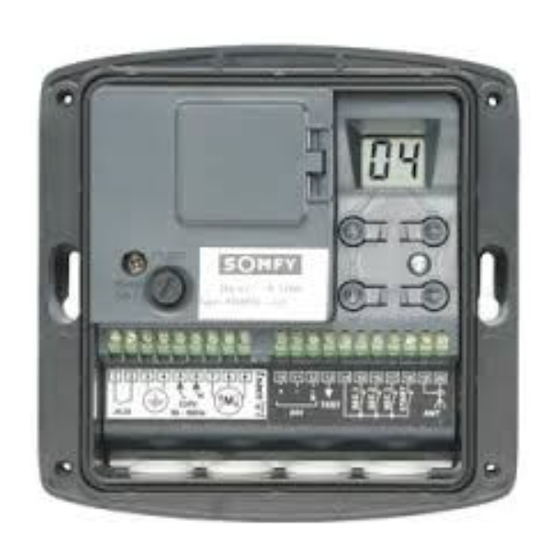

Radio receiver for rolling garage door
The AXROLL receiver is used to control a rolling garage door fitted with
a 230V motor with mechanical built-in endstops using Keytis
Telis 1/4 RTS, and radio wall switch.
Different safety and signaling systems can be connected to the AXROLL
(resistive, OSE Fraba type or ultrasonic safety edge, photocells, flashlights,
area lighting).
This product complies with the standard EN 60335-2-95.
When installed as recommended in this instruction manual and in accordance with regulations in
force, Axroll allows the installation to comply with EN 13241 and EN 12453 standards. Axroll must
be installed inside the garage with a motor equipped by a manual override system.
Power supply voltage : 230Vac 50-60 Hz.
Max motor power : 230Vac 750W.
Protection rating : IP 55.
Ambient operating T° : -15°C to +55°C.
Radio frequency : 433.42MHz
Accessory power supply : 24Vcc (direct).
Resistance values for resistive sensor
150 mm
Maximum current for accessories : 0.33A i.e. 8W max.
(cells, keypads, loops, sensor bar, etc...)
150 mm 40 mm
Area lighting : 230Vac, 500W.
Auxiliary output : Contact NO, 250Vac 500W.
Hereby, SOMFY, declares that this product (AXROLL) is in compliance with the
Operating class : 1, the ground must be connected.
essential requirements and other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity is available at the web address www.somfy.com/CE. Number of maximum channels : 32
CH
Usable in EU,
Ref. N1841034E V1
SOMFY SAS, capital 20 000 000 Euros, RCS Bonneville 303 970 230
2
Checking the motor's rotation direction
NB: If you want to check the motor's rotation direction, you have to set the parameter
1 Powering on the product: the display indicates the value
2
Check the motor's rotation direction using the " + " and " - " keys.
press and hold the " + " key to open the door.
press and hold down the " - " key to close the door.
If the operation is reversed, power off the product, and revert the motor's wiring
(terminals 7 and 9).
Refer to the motor's installation manual to set the end stop system.
Measure the motor operating time using permanent running (e.g. 20sec. for rising), then set the T0 parameter (motor operating time,
3
chapter 3.8) with a value slightly above the time observed (about +3 sec.).
3
Configuration
The Axroll control box is fully and easily configured to achieve optimum operation matching the types of accessories connected, as
well as the operation mode required by the user.
The various parameters proposed are not mandatory, and browsing the menus imposes no particular sequence.
1 sec.
Use the " " or " " keyrs to One second after releasing the key,
browse the menu and display
the screen indicates the parameter
the parameter required. value to change.
(display blinks)
To return to the menu, press the " " or " " keys to return to value C1 (or any other value indicating the pro-
duct's operation: see § 4) or after a one-minute waiting time.
1
Wiring
or
NS 2/4 RTS,
lighting or
signaling
chapter 3.7
230V - 50Hz
Fuse : 250V 5A with timeout
KΩ
bar : From 4 to 12
or 13W intermittent (orange light
10W + accessories 3W.)
Orange light : 24V, 10W max or 230V 40W max
lighting
500W max.
Ground
Phase
Neutral
3.1 Configuring the operating mode: parameter
(chapter 3.1)
=
Certain operating modes impose connecting safety accessories (european standards EN 12453). Non compliance with these rules can lead to a facility
hazardous for its users.
The Axroll has six operating modes:
Pressing the remote control opens and closes automatically
after timeout T1 (chapter 3.8).
During closing, pressing the remote control again or the
detection of an obstacle reopens the door.
Pressing the control triggers opening or closing. Pressing again
during opening has no effect.
Pressing during closing reopens the door.
Use the " + " or " - " keys to change the value of the
parameter.
The last value is recorded automatically (the display is
Cyclic operation (up / stop / down / stop...).
fixed when pressing the keys).
Pressing during opening or closing stops
without reversion.
Motor ( +safety break)
Keyswitch
MAINS
Orange light configuration
Lighting configuration
orange lights.
cf. PA parameter
: Automatic mode Mandatory installation of safety accessories
=
: Semi-automatic mode
=
: Sequence mode
= (default mode)
Motor
OSE SAFETY EDGE
(FRABA)
Safety (
cf. P5 parameter)
Break
Radio
Wall
Switch
230V - 50Hz
Ground
Phase
Neutral
1 2 1
24V 0V 24V
ac/dc ac/dc
Photocells. Ref: 9012763
(PLANT VALUE = 02)
: Sequential mode + Timeout
=
Similar to the sequential mode, but with automatic closing
after timeout T1 (chapter 3.8).
: 3-button mode
=
This mode is used to set a separate control
for opening, closing, and stopping the
door.
: Forced mode with + & - keys on
=
the keyboard
This mode is used to control the door using the " + " and
" - " keys on the Axroll box in the endstop adjustment phase.
Press and hold " + " to open.
Press and hold " - " to close.
Apply the electric installation stan-
dards, as well as the following points:
switch off the mains before any
intervention.
use flexible cables.
connect the ground cables.
after installation, no traction must be
applied to the terminal strips.
Pull the antenna wire
through the right-hand
wire grommet.
Keyswitch
Contact
Sensor
bar
Supply
Ampli
Test
2 3 4 5
0V C NC NO
Mandatory installation of safety accessories
in this mode, the safety devices are deactivated
