b I l l e t f o r k b r a c e
f o r 4 9 m m w I d e g l I d e
f I ts a l l h - d wI d e gl Id es w Ith 49mm fo rk t ubes
Parts Included
1
Fork Brace Assembly, including:
1
Center Bridge
2
Outer Clamp
2
Inner Clamp
4
1/4-20 x 7/8" BSCS Fastener, Stainless Steel
4
1/4-20 x 7/8" SHCS Fastener. Stainless Steel
1
Installation Instructions
Please read and understand entire instructions before starting installation.
thank you for choosIng küryakyn!
Please note
It is the installers' responsibility to make sure all fasteners (including pre-assembled) are
tightened before operation of motorcycle. Küryakyn will not warranty components that are
lost due to improper installation. Periodic maintenance may be required.
tools suggested
Allen wrenches.
Procedure

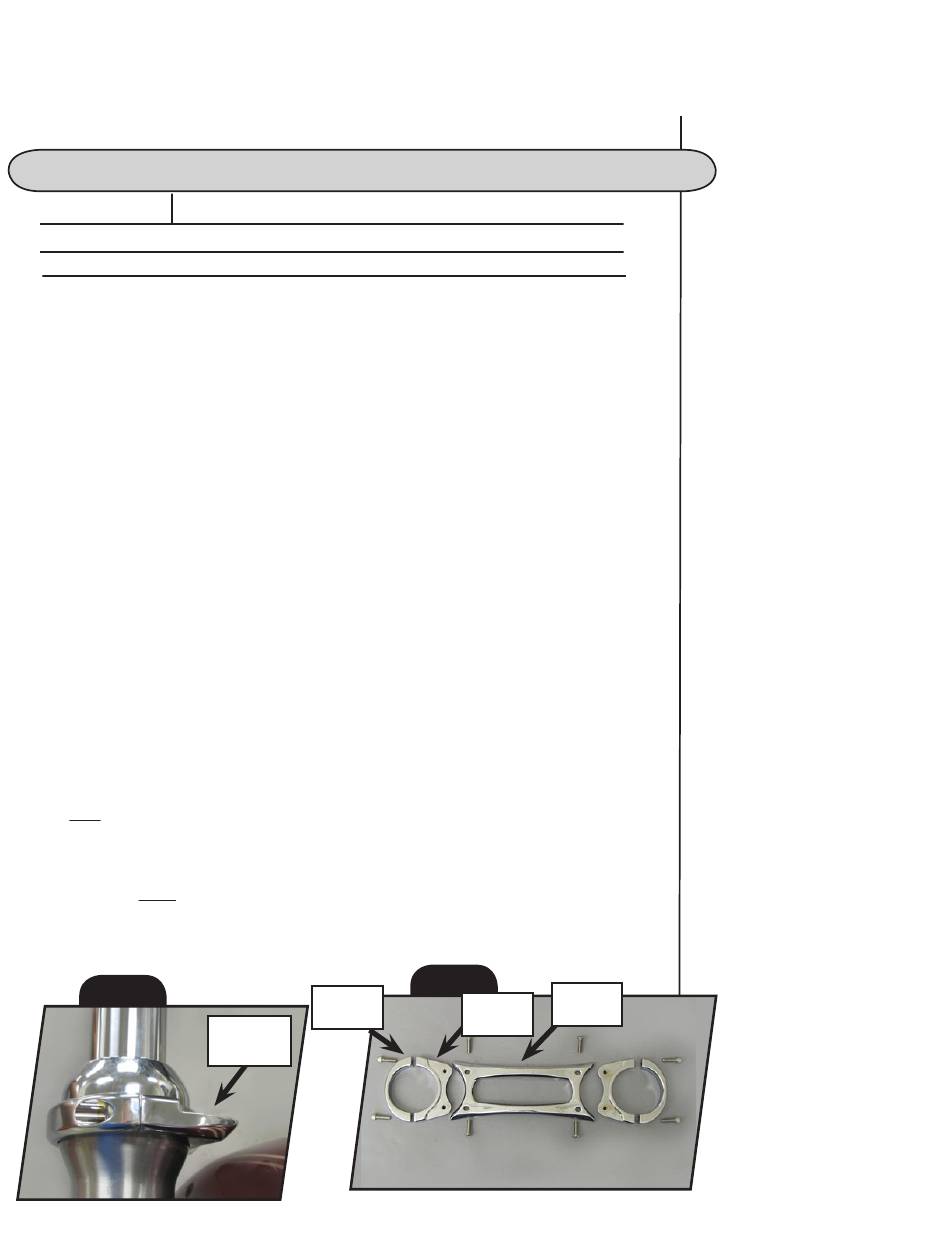

steP 1 Cover the front fender with a towel to prevent scratches.
steP 2 Remove the four fasteners securing the center bridge to the inner and outer clamp
assemblies. Remove the fasteners securing the inner and outer clamp assemblies together.
See PIC.1.
steP 3 Place an inner and outer clamp just below the dust cap on the right fork. Be sure
to orient the inner clamp with the "ears" on the bottom. Loosely secure with the provided
fasteners. See PIC.2. Repeat for the opposite side.
-cont.-
PIc.2
8617-11HD-0806
o uter
cl am P
"ears "
o f Inner
cl am P
8 6 1 7
PIc.1
ce n t e r
I n n e r
b rI d ge
c l a m P
