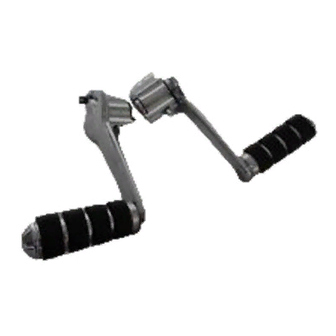

RETRACTABLE PASSENGER PEGS FOR SOFTAIL

PARTS INCLUDED

1
Left Retractable Passenger Peg Assembly
1
Right Retractable Passenger Peg Assembly
1
Hardware Kit Containing:
1
Left Saddlebag Relocation Bracket
1
Right Saddlebag Relocation Bracket
2
5/16"–18 x 1" Button Socket Cap Screw—B.S.C.S. — Chrome
2
5/16"–18 Low Crown Acorn Nuts — Chrome
4
5/16" I.D. Flat Washers — Chrome
2
Bolt Head Shims
2
Reducer Inserts
2
3/8"–16 NTE Hex Nut — Stainless Steel
2
3/8" I.D. Flat Washer — Zinc
1
Installation Instructions
Please read and understand entire instructions before starting installation.
THANK YOU FOR CHOOSING K
IN ORDER TO PROTECT YOU AND OTHERS FROM POSSIBLE INJURY AND/OR
PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION TO ALL
INSTRUCTIONS, WARNINGS, CAUTIONS AND ATTENTION NOTES REGARDING
THE USE AND CARE OF THIS PRODUCT.
WARNING! THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING
THE CONTENTS DESCRIBED HEREIN CAN RESULT IN
POTENTIAL DEATH OR SERIOUS INJURY.
ATTENTION!
This indication alerts you to the fact that ignoring the contents
described herein may negatively affect product performance and
functionality.
CAUTION!
This indication alerts you to the fact that ignoring the contents
described herein can result in potential injury or material
damage.

TOOLS SUGGESTED

Set of Hex Wrenches, Set of Combination Wrenches
STRICTLY OBSERVE THE FOLLOWING GUIDELINES IN ORDER TO USE THE
PRODUCT PROPERLY AND AVOID POTENTIALLY DANGEROUS ACCIDENTS.

STEP 1

Read and understand all steps in the instructions before starting the
installation. Park the motorcycle on a hard, level surface and turn off the
ignition. Let cool.
WARNING! YOU WILL BE WORKING AROUND THE ENGINE AND EXHAUST
SYSTEM DURING INSTALLATION. ENSURE THAT THE ENGINE
AND EXHAUST SYSTEM HAVE FULLY COOLED TO PREVENT
INJURY.
-cont.-
7925-21HD-0911
ϋ
RYAKYN!
INSTALLATION
7925
CUSTOMER SERVICE
877.370.3604 (toll free)
INSTALLATION QUESTIONS
techsupport@kuryakyn.com
or call 715.247.2983

LIMITED WARRANTY

Küryakyn warrants that any Küryakyn products
sold hereunder, shall be free of defects in
materials and workmanship for a period of one
(1) year from the date of purchase by the
consumer excepting the following provisions:
Küryakyn shall have no obligation in the event
the customer is unable to provide a receipt
showing the date the customer purchased the
●The product must be properly installed,
maintained and operated under
normal conditions.
●Küryakyn makes no warranty, expressed or
implied, with respect to any gold plated
●Küryakyn shall not be liable for any
consequential and incidental damages, including
labor and paint, resulting from failure of a
Küryakyn product, failure to deliver, delay in
delivery, delivery in nonconforming condition, or
for any breech of contract or duty between
Küryakyn and a customer.
●Küryakyn products are often intended for use in
specific applications. Küryakyn makes no
warranty if a Küryakyn product is used in
applications other than intended.
●Küryakyn electrical products are warranted for
one (1) year from the date of purchase by the
consumer. L.E.D.'S contained in components of
Küryakyn products will be warranted for defects
in materials and workmanship for 3 years from
the date of purchase where as all other
components shall be warranted for one(1) year.
This includes, but is not limited to; control
modules, wiring, chrome & other components.
●Küryakyn makes no warranty of any kind in
regard to other manufacturer¹s products
distributed by Küryakyn. Küryakyn will pass on
all warranties made by the manufacturer and
where possible, will expedite the claim on behalf
of the customer, but ultimately, responsibility for
disposition of the warranty claim lies
with the manufacturer.

ABOUT OUR CATALOG

For purchasing Küryakyn® products, you
can receive a complete catalog free of charge.
Send the Proof-of-Purchase below with
your address to: Küryakyn, P.O. Box 339,
Somerset, WI 54025.
Please indicate either Accessories Catalog for
Harley-Davidson® or GL & Metric Cruisers.
Be sure to ask your local dealer about other
Küryakyn® products, the motorcycle parts and
accessories designed for riders by riders.
©2005 Küryakyn USA® All Rights
reserved.
product(s).
products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7925 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kuryakyn 7925

  • Page 1 INSTALLATION RETRACTABLE PASSENGER PEGS FOR SOFTAIL 7925 CUSTOMER SERVICE PARTS INCLUDED 877.370.3604 (toll free) Left Retractable Passenger Peg Assembly INSTALLATION QUESTIONS Right Retractable Passenger Peg Assembly techsupport@kuryakyn.com Hardware Kit Containing: or call 715.247.2983 Left Saddlebag Relocation Bracket LIMITED WARRANTY Right Saddlebag Relocation Bracket Küryakyn warrants that any Küryakyn products...
  • Page 2 STEP 2 Remove the stock rear footpegs and mounting clevises. PIC 1 STEP 3 Determine the retractable peg assembly orientation. While the two sides appear identical, the difference is in the anti-rotation arm, or the “caps” that cover the ends of the bike’s swing arm pivot shaft. The thick or deep “cap” covers the pivot shaft NUT on the left side of the bike.
  • Page 3 PAGE Ride On! RETRACTABLE PASSENGER PEGS INSTALLATION...
