Merit Medical SCOUT Quick Setup Manual

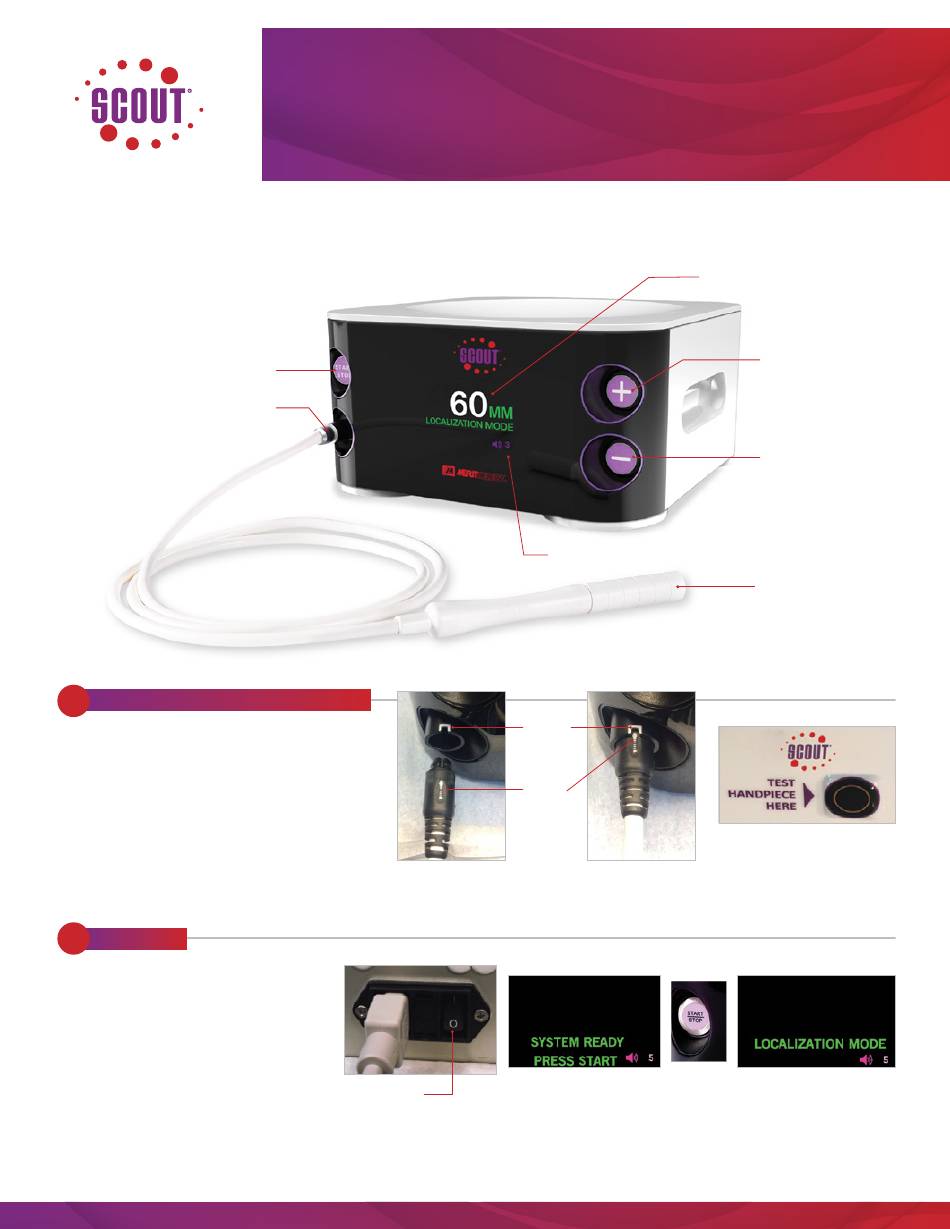

Console Overview
Start/Stop Button
Handpiece Cord Recepticle
1
ATTACH HANDPIECE TO CONSOLE
• From sterile field, pass off connector end
of Handpiece
• Align arrow on Handpiece connector with
alignment notch on console receptacle
• Press until secure connection made
between Handpiece and console
• Keep Handpiece Test Card from
Handpiece packaging on sterile field
2
POWER UP
• Turn on "Power" switch on
back of console
• Once "SYSTEM READY"
message appears
• Press "START/STOP" button
to activate Handpiece
• "LOCALIZATION MODE"
appears
OR Quick Setup Guide with
Single-Use Handpiece
Power On/Off Switch
Volume Indicator
Alignment
Notch
Alignment
Arrow
Distance Measurement
Volume Increase
Volume Decrease
Single-Use Handpiece
