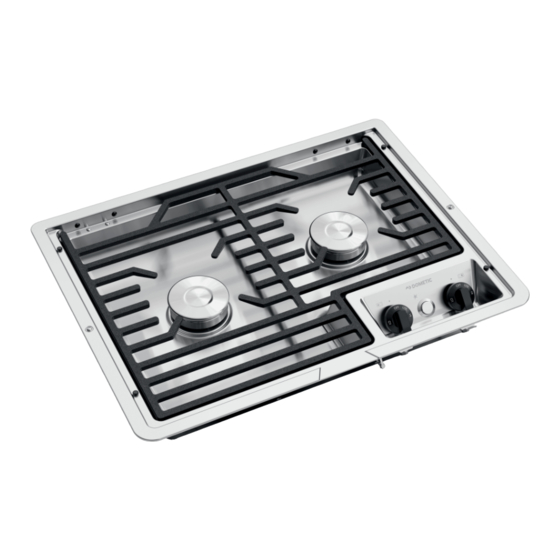

D21 Drop-in Cooktop
EN
Installation and Operating Manual . . . . . . . . . .2
Plaque de cuisson encastrable D21
FR
Manuel d'installation et d'utilisation . . . . . . . . 14
Recreational Vehicle
Gas Cooking Appliance
HOT PRODUCTS
COOKTOP
D21
WARNING: If the information in this manual is not followed exactly,
a fire or explosion may result, causing property damage, personal
injury, or death.
– Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your recreational vehicle.
• Clear the recreational vehicle of all occupants.
• Turn off the gas supply tank valve(s) or main gas supply.
• Immediately call your gas supplier for instructions.
• If you cannot reach your gas supplier, call the fire department.
– Have the gas system checked and leakage source corrected by a
qualified installer, service agency, manufacturer or dealer, or the gas
supplier.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D21 and is the answer not in the manual?

Questions and answers

Nick
April 11, 2025

My domestic RV LP gas model d21 drop in cook top. One burner operates well. Right burner had very small flame, like a dimmer setting. How do I adjust for higher flame?

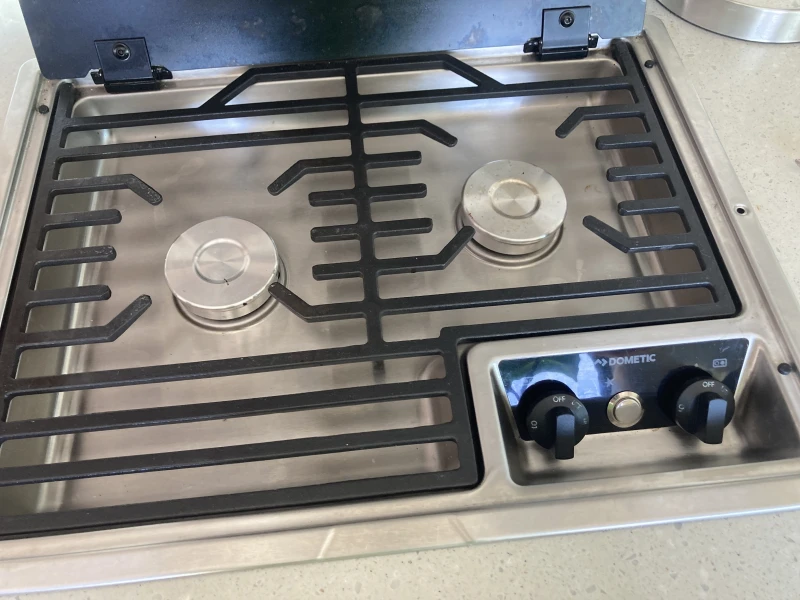

User image 67f9736d66f96
