Read these instructions carefully. These instructions MUST stay with this product.
Dometic Corporation reserves the right to modify product appearances and specifications without notice.
REVISION A
Form No. 3316719.000 12/17
©2017 Dometic Corporation
LaGrange, IN 46761

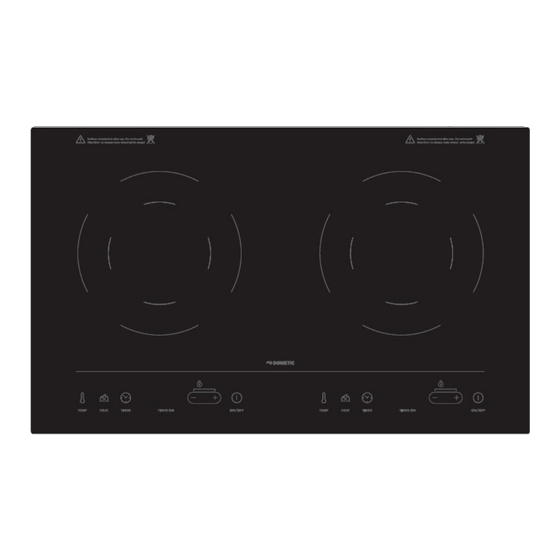

INDUCTION COOKTOP
MODEL CI-20
USA
SERVICE OFFICE
Dometic Corporation
1120 North Main Street
Elkhart, IN 46514
INSTALLATION & OPERATING
INSTRUCTIONS
SERVICE CENTER &
DEALER LOCATIONS
Visit:
www.dometic.com
Advertisement
Related Manuals for Dometic CI-20
Summary of Contents for Dometic CI-20
- Page 1 INSTALLATION & OPERATING INSTRUCTIONS INDUCTION COOKTOP MODEL CI-20 Read these instructions carefully. These instructions MUST stay with this product. Dometic Corporation reserves the right to modify product appearances and specifications without notice. SERVICE CENTER & REVISION A SERVICE OFFICE DEALER LOCATIONS Form No.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS........2-3 SAFETY INSTRUCTIONS........4-7 PRODUCT INTRODUCTION........8-9 OPERATION INSTRUCTIONS......10-11 INSTALLATION REQUIREMENTS......12 COMPATIBLE COOKWARE........13 CLEANING AND MAINTENANCE ......13 TROUBLE SHOOTING..........14... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Do not touch hot sur faces. To protect against electrical shock do not immerse cord/plugs in water or other liquid. Close supervision is necessary when any appliance is used by or near children. Unplug from outlet when not in use and before cleaning. A llow to cool before putting on or taking off parts. - Page 4 If a generator is used, it must have a Pure Sine Wave output and a minimum power rating of 2000W. The Dometic Induction Cooktop should not be used with inverting power supplies. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.
-
Page 5: Safety Instructions
SAFETY INSTRUCTIONS 1. For safety reasons and to avoid damage to the appliance or injuries to people, please abide by all the safety instructions below. 2. Ignoring safety warnings may result in injuries. 3. This appliance does not take into consideration the following situations: —... - Page 6 SAFETY INSTRUCTIONS To avoid injuries such as scalding, do not Unplug the power cord from the outlet after let children operate the appliance alone. use to avoi d fire and/o r dam age to the electronic c omponents, caused by To avoid danger, do not insert any foreign People with heart pacemake rs s hould object, such as iron wire, nor block the air...
- Page 7 SAFETY INSTRUCTIONS To avoid danger, if the power cord is Pleas e use a dedicated and high quality damaged, have it replaced by agents of the power outlet, with high power rating, equal manufacturer, its maintenance department to or above 15A. Do not us e poor quality or specialized personnel from a similar outlets.
- Page 8 SAFETY INSTRUCTIONS Always clean the induction cooker to When operati ng the appliance or after prevent mess from getting into the fan, moving the pot, the cooking area will remain Danger of scalding which could influence the normal operation hot for a period of time. Do not touch it. Be of the appliance.
-
Page 9: Product Introduction
PRODUCT INTRODUCTION The induction cooker is able to meet various kinds of cooking demands by electromagnetic heating. High thermal efficiency, is safe and reliable, and easy to clean. Performance Parameters Left Right Applied Weight Dimension Model voltage/frequency Rated power ( kg ) Rated power Rated power "... - Page 10 ON/OFF TEMP HEAT TIMER TIMER ON...
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Plug in After the power supply is connected, a beep will sound. The LED indicator flash 1 second. Turn on After pressing the " ON/ OFF" button, the buzzer will ring once. The induction cooker is ready for heating. After pressing the "... - Page 12 OPERATION INSTRUCTIONS Heating The default timer of each level are as follow: Level Default t ime Childproof Lock Press the " " and " " button at the same time to start childproof lock function, the " Lock" indicator lights up. Then only the " ON/ OFF" button can be used to switch off the induction cooker, all the other operations are forbidden.
-
Page 13: Installation Requirements
INSTALLATION REQUIREMENTS Minimum distance from cook- top any object above must be at least 30" Minimum distance from cook- top to any surface below must be at least 6" Cut- out width:14.3" Cut- out length:23.8" Ventilation cut- outs There must be at least 2" from the edge of the cook- top to any walls or cabinets Sealing strip around the... -
Page 14: Compatible Cookware
COMPATIBLE COOKWARE Stainless steel Iron pan Iron kettle Enamel stainless Enamel cooking Iron plate steel kettle utensil Induction-compatible cookware contains ferromagnetic materials. In other words, it contains iron, or has a layer with magnetic properties. Cookware must have a flat smooth bottom with the diamete more than 5"... -
Page 15: Trouble Shooting
TROUBLE SHOOTING Abnormalities Key checking points and trouble shooting * Is the power plug properly connected? Plug the power cord and press the “ON/OFF” key, * Is the switch, power outlet, fuse or power cord but the indicator and display do not light up. damaged? * Is the cookware compatible. - Page 16 (f) failure to follow Seller’s instructions for use of this Dometic Product; (g) any accident to, or misuse of, any part of the Dometic Product and any alteration by anyone other than the Seller or its authorized representative;...
