Summary of Contents for Dometic SKS101

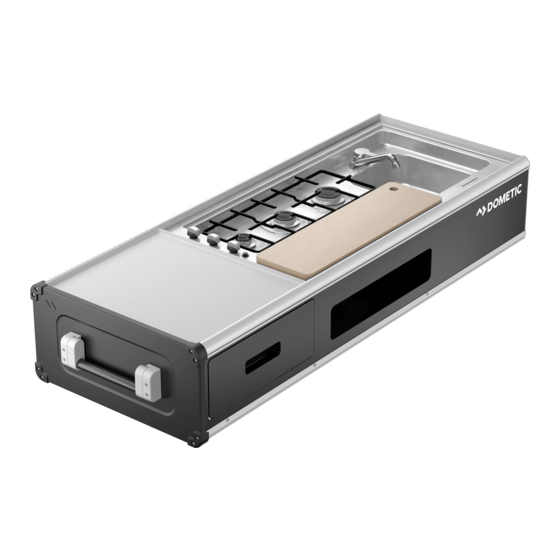

- Page 1 COOKING SLIDE OUT KITCHEN SKL101, SKS101 Slide out kitchen Installation Manual...
-
Page 2: Table Of Contents
SKL101, SKS101 Explanation of symbols Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. -
Page 3: Safety And Installation Instructions
Safety and installation instructions SKL101, SKS101 Safety and installation instructions Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops. The manufacturer accepts no liability for damage in the following cases: • Faulty assembly or connection •... -
Page 4: Scope Of Delivery
SKL101, SKS101 Scope of delivery Scope of delivery No. in fig. 1 Description Slide out kitchen Bottle opener Cup holder Cutting board Serving tray (only SKL101) Accessory adapter – Tap with flexible water hose – Installation manual – Operating manual –... -
Page 5: Intended Use
Intended use SKL101, SKS101 Intended use The slide out kitchen for the outside area is intended for installation in trailers and mobile homes. It is solely for the preparation of food in the outside area of the trailer or mobile home. - Page 6 SKL101, SKS101 Preparing the installation Installation ➤ Create a drilling template to mark-up and drill holes to suit M8 bolts (fig. 2 to fig. 3).
- Page 7 Preparing the installation SKL101, SKS101 ➤ Mount the device as shown (fig. 4). ➤ Fit M8 bolts with locking washers from underneath (not supplied) (fig. 4). The length of the bolts should be at least 30 mm longer than the floor thickness.
- Page 8 SKL101, SKS101 Preparing the installation ➤ Verify the smooth sliding of the slide out kitchen (fig. 6). Ensure that slider locks are fully engaged when kitchen is extended and locking release tabs (fig. 6 1) are releasing the slider locks correctly.
- Page 9 Preparing the installation SKL101, SKS101 Connecting the gas supply The gas supply may only be installed by a tested and certified gas plumber. WARNING! The female gas connection provided can only be connected to a rigid connection. For use with a flexible hose, install a copper pipe to the base plate of the slide out kitchen and fix it rigidly (fig.
- Page 10 SKL101, SKS101 Preparing the installation ➤ Connect the rigid pipe as shown (fig. 7 1, page 10). ➤ Connect the flexible hose as shown (fig. 7 2, page 10). Connecting the water supply NOTE The water supply can be permanently connected.
-
Page 11: Technical Data
Technical data SKL101, SKS101 Technical data SKL101 SKS101 Ref. no.: 9600006441 9600019015 Nominal gas consumption: 16 MJ/h Gas category: Category l , universal LPG Connection pressure: AT, DE, EE, LT, LV, MT, PL: 30 mbar BE, CH, ES, FR, GB, GR, IE, IT, LU: 28 –... - Page 12 SKL101, SKS101 Technical data Dimensions SKL101 No. in fig. 9 Description Slide out kitchen and sliding fore-rails (inner): 597 mm Including fixation brackets and nuts: 630 mm Slide out kitchen only: 1515 mm Including fixation bracket and rails (closed): 1667 mm...
- Page 13 Technical data SKL101, SKS101 SKS101 No. in fig. 0 Description Slide out kitchen and sliding fore-rails (inner): 597 mm Including fixation brackets and nuts: 630 mm Slide out kitchen only: 1075 mm Including fixation bracket and rails (closed): 1220 mm...
