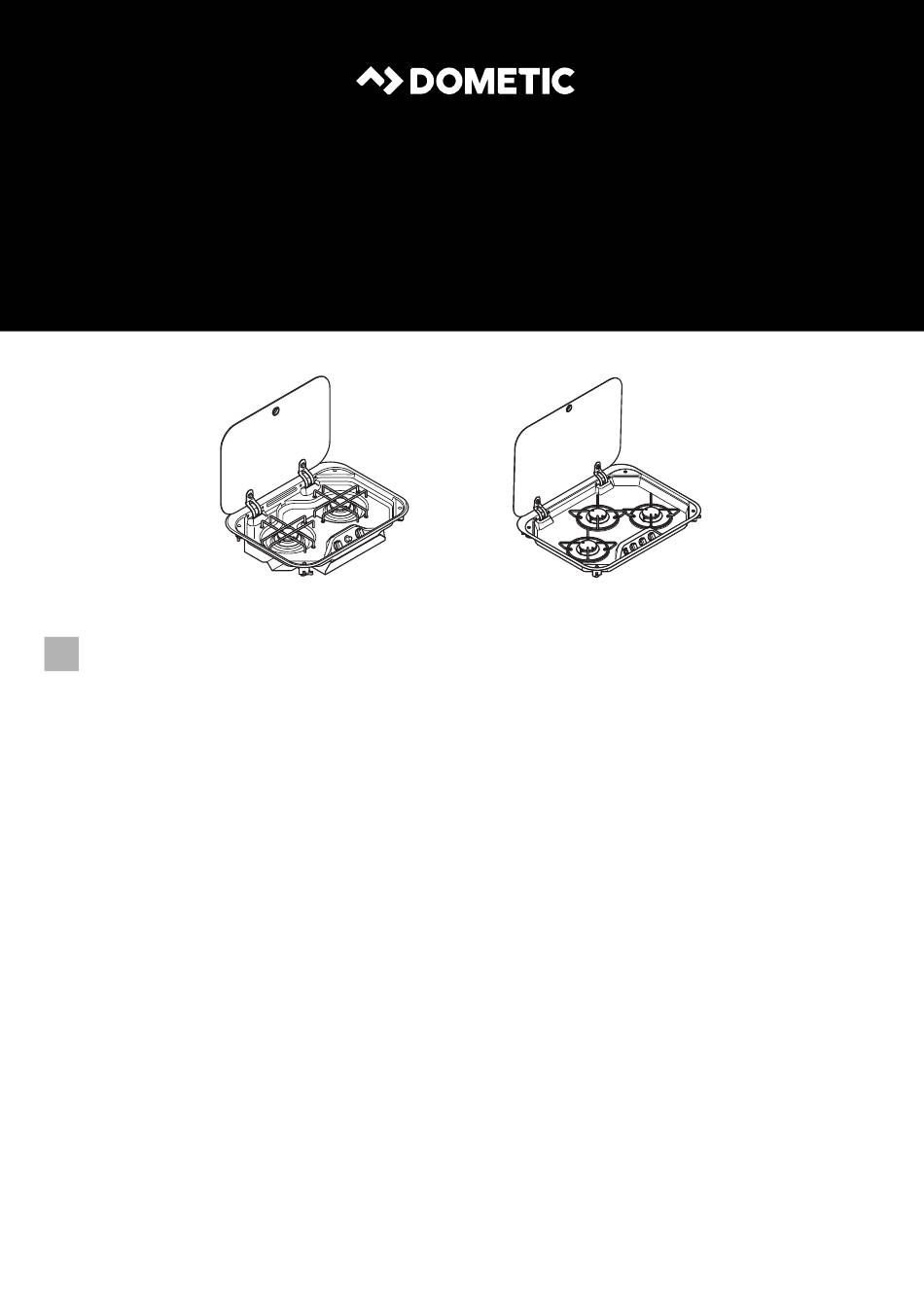

- Page 1 HOT AND COOKING HOBS AND COMBINATIONS PI8022, PI8023 Cooktops and combinations Installation and Operating Manual...
- Page 2 © 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
-
Page 3: Table Of Contents
PI8022, PI8023 Description of symbols Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product. -
Page 4: General Safety Instructions
General safety instructions PI8022, PI8023 NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. General safety instructions The manufacturer accepts no liability for damage in the following cases: • Faulty assembly or connection •... - Page 5 PI8022, PI8023 General safety instructions • This device is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with AS/NZS 5601 and all other relevant national and local regulations. Particular attention shall be given to the relevant requirements regard- ing ventilation.
- Page 6 General safety instructions PI8022, PI8023 Operating the device safely WARNING! • Use the integrated igniter (if available) or long matches or a suitable lighter. The complete ignition process must be visible from above and must not be hidden by pots placed on the stove.
-
Page 7: Scope Of Delivery
• Risk of breakage! If available close the glass cover before beginning a journey. Open the glass cover before igniting the burner. Scope of delivery • Cooktop PI8022, PI8023 • Fastening screws (depending on the model) • Installation and operating manual Intended use The liquefied gas cooktops in the following model series are intended for installation in a kitchen or worktop in caravans and motor caravans. -
Page 8: Technical Description
Specifications for the different models The devices are available in different versions: • PI8022: Cooktop with two to three burners and safety glass cover • PI8023: Cooktop with three burners and safety glass cover The safety glass cover can be used as a work surface when it is closed. - Page 9 PI8022, PI8023 Technical description Control panel Icon in fig. 2 Explanation Button for spark ignition Push button for spark ignition Low flame High flame...
-
Page 10: Installing The Device
Installing the device PI8022, PI8023 Installing the device WARNING! Assembly and installation of the device must only be carried out by licensed gasfitters. Incorrect assembly and installation can result in serious hazards due to the escape of gas. Selecting the installation location When selecting the installation location, observe the following instructions: •... - Page 11 PI8022, PI8023 Installing the device Installing the device ➤ Create a cutout according to the installation drawing: – PI8022: fig. 4 PI8022 – PI8023: fig. 5 PI8023...
- Page 12 Installing the device PI8022, PI8023 ➤ Affix the device to the worktop using the screws (fig. 6). h= t 21 mm d 25 mm PI8022 PI8023 h= t 16 mm d 21 mm Connecting the device to the gas supply...
- Page 13 PI8022, PI8023 Installing the device ➤ Connect the pipes as shown (fig. 7). The connection of the gas pipe to the appliance (1/4 BSPT female) must be made with a rigid metal pipe. The pipe work and fittings shall be free from defects and of an approved type.
- Page 14 Installing the device PI8022, PI8023 Connecting the device to the power supply (PI8023) ➤ Connect the device as shown (fig. 8). 200 cm 2 x 0,5 mm black 12 V ➤ Add a 1 A fuse in the plus line near the battery.
-
Page 15: Using The Device
PI8022, PI8023 Using the device Using the device Igniting a burner WARNING! Beware of injury! The complete ignition process must be visible from above and must not be hidden by pots placed on the stove. NOTICE! The flame must not extend beyond the edge of the pot. Centre the pot above the burner ensuring stability on the pot grid (see fig. - Page 16 Using the device PI8022, PI8023 ➤ Ignite a burner as shown (fig. 0). max. 10 s...
-
Page 17: Cleaning The Device
PI8022, PI8023 Cleaning the device Switching off the device ➤ Switch off the device as shown (fig. a). Replacing the gas cylinder WARNING! Beware of injury! Only replace the gas cylinder when there is good ventilation. Make sure that there is no source of ignition nearby. -
Page 18: Maintaining The Device
Maintaining the device PI8022, PI8023 NOTE When cleaning pay special attention to the burner to ensure there are no blockages. ➤ Clean the device as shown (fig. b). Maintaining the device Abnormal Operation Gas valves, which are difficult to turn are considered to be abnormal operation and may require servicing. - Page 19 PI8022, PI8023 Maintaining the device Replacing the nozzles WARNING! Beware of injury! The nozzles must only be replaced by authorised personnel. Incorrect assembly and installation can result in serious hazards due to the escape of gas. ➤ Replace the nozzles as shown:...
-
Page 20: Troubleshooting
Troubleshooting PI8022, PI8023 – Assembly: fig. d Troubleshooting WARNING! Beware of injury! Servicing of the cooktop must only be done by an authorised personnel and the cooktop must not be modified. Power must be disconnected before any servicing or maintenance is concluded. - Page 21 PI8022, PI8023 Troubleshooting ➤ Contact an authorised service representative if you observe one of the following abnormal conditions: – Excessively yellow or sooting flame type – Flame lifting off the burnerports – Flame lighting back into the burner (normally associated with a popping sound) –...
-
Page 22: Warranty
Warranty If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 3 year(s). For repair and warranty processing, please include the following documents when you send in the device: •... -
Page 23: Disposal
PI8022, PI8023 Disposal New Zealand only This warranty policy is subject to the conditions and guarantees which are mandatory as implied by the Consumer Guarantees Act 1993(NZ). Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. - Page 24 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
