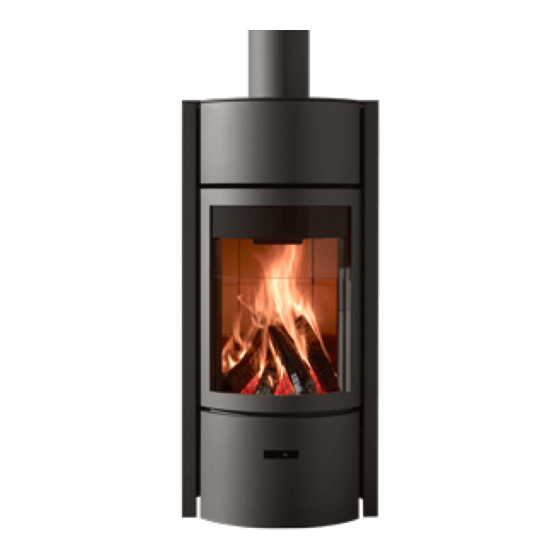

Stuv 30 Maintenance Manual

Hide thumbs Also See for 30:

Advertisement

Quick Links

maintenance
Replacement of refractories
of the door locking mechanism
of the panes
of the «anti-convection» seals and the pane on the solid door
of the door seals
List of spare parts
2
3
4
4
5
5
6
6
8
9
10
11
12
14

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stuv 30

Summary of Contents for Stuv 30

  • Page 1: Table Of Contents

    maintenance Replacement of refractories of the grate of the ashpan of the grate shaker of the bolt and the bolt spring of the drum of the drum positioner Rotation of the drum Replacement of the damper and its regulator of the upper tight seal between body and drum of the lower tight seal between body and drum of the door locking mechanism of the panes...
  • Page 2 Replacement of refractories Open the door using the cold General view of the Stûv 30 Tools needed : handgrip. - 1 flat screwdriver front panel - 1 3 mm and 1 4 mm Allen key «open fire» door - 1 8 mm open-end spanner...

  • Page 3: Of The Grate Of The Ashpan

    Replacement of the grate of the ashpan 1. Disassembly of the grate Grate mechanism Open a door. Remove the grate with its pin. Take out the 2 front refractories. black button of the grate shaker removable upper grate fixed lower grate fork 2.

  • Page 4: Of The Bolt And The Bolt Spring Of The Drum

    Replacement of the grate shaker Open a door. Take out the front Unscrew the 2 parts of the grate Unscrew the black button of the refractories. Remove the grate and shaker by holding the black button metal rod to allow the 2 parts of the grate holder.

  • Page 5: Of The Drum Positioner

    Replacement of the drum positioner The positioner is the fixed afemale component, which allows the bolt to immobilise the drum. 2’ 2’ To put the positioner back in place, insert the positioner and screw the 2 screws with the fan washers. Do not tighten.

  • Page 6: Replacement Of The Damper And Its Regulator

    Replacement of the damper and its regulator Remove the 2 front refractories. Take out the primary air deflector. Unscrew the screw holding the damper regulator, using the 8 mm spud wrench. Take out the damper through the inside of the fireplace and its regu- lator though the outside.
  • Page 7 Take out the stainless-steel seal Using an 8 mm open-end spanner Turn the drum 10 cm towards the retainer. and an 8 mm spud wrench, uns- right. Remove the upper cross- crew the bolt that holds the upper piece. crosspiece in place. Remove the 2 front refractories Take out the stainless-steel Remove the 2 vertical protective...

  • Page 8: Of The Lower Tight Seal Between Body And Drum

    13 Fit the new seal with the flexible part towards the front and the thin part against the surface of the fireplace. Fix the left vertical seal retainer first, tightening only the lower bolt, then pull the seal upwards while tightening the other 2.
  • Page 9 Position the drum in the solid Take out the seal. For installing Unscrew the Allen screws and M5 door position, and remove the the seal, work in the opposite nut holding the lower crosspiece. door by lifting it off its hinges. direction.
  • Page 10 Replacement of the panes The procedure is the same for the glass door and for the «open fire» door. Slightly half-open the door. Turn the drum 10 cm rightwards. Remove the door lock. Lift the door to take it off its Carefully observe its position ! hinges, then push it leftwards.
  • Page 11 Replacement of the «anti-convection» seals and the pane on the solid door Slightly half-open the door. Turn the drum 10 cm rightwards. Using the 8 mm spud wrench, Lift the door to take it off its unscrew the thermal shield on the hinges, then push it leftwards.
  • Page 12 Replacement of the door seals Slightly half-open the door. Turn the drum 10 cm rightwards. Remove the door seal – all you Lift the door to take it off its hin- have to do is pull it. ges, then push it leftwards. Rest it on a support to keep it steady.
  • Page 13 S30 maint. EN 10-06...
  • Page 14 15 photo 2 A 30KREFRP large curved pane 30 Neoceram (glass door) page 10 photo 1 VIT30 small curved pane 30 Neoceram (glazed strip door) page 15 photo 1 H VIT301 window Neoceram for solid door (with self-adhesive seal Ø 8mm)
  • Page 15 Take care ! Since Stûv fireplaces are constantly changing, do not forget to communicate the fireplace production no. when you order spare parts. In that way, you are certain to obtain the part that goes with your fireplace.
  • Page 16 Stûv fireplaces are designed and made in Belgium by : Concept & Forme sa - rue Jules Borbouse 4 - B-5170 Bois-de-Villers (Belgium) tél : +32 (0)81 43 47 96 - fax : +32 (0)81 43 48 74 info@stuv.eu - www.stuv.eu...
