Kuryakyn 7704 Installation

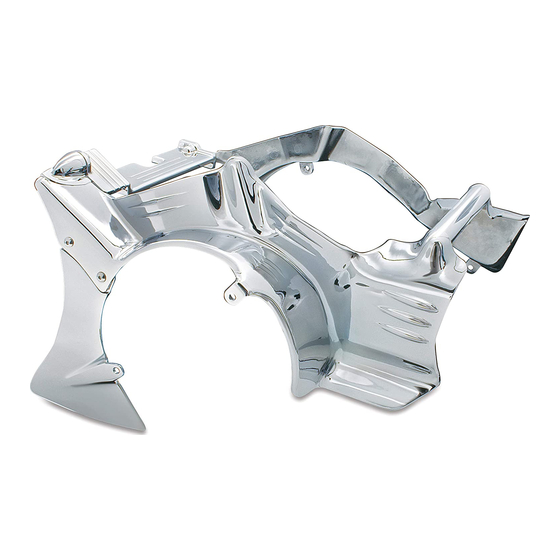

E N G I N E C A S E C O V E R S
FI TS: A LL H ON DA V TX 1800
PART # PART # INCLUDED INCLUDED
407704R 407704R 1 1
407704L 407704L 1 1
407704RL 407704RL 1 1
407704SF 407704SF 1 1
407704SR 407704SR 1 1
907704 907704 1 1
3 3
1 1
1 1
307704 307704 1 1
THANK YOU FOR CHOOSING KURYAKYN!
NOTE
For some models, loosening the exhaust where the pipes fasten to the heads and on lower
bracketry may be necessary to gain clearance to install the engine case covers.
TOOLS SUGGESTED
A set of Metric and Standard Allen Wrenches, and a Torque Wrench
PROCEDURE
STEP 1 Using a 5mm Allen wrench, remove the
fastener that secures the master cylinder to the
frame. The master cylinder is located under the
front exhaust pipe on the right side of the bike.
See PIC.1.
STEP 2 Using two of the supplied 10–24 X 1/2"
Button Socket Cap Screws, Secure the Right
Lower Cylinder Base Cover (labeled as C in FIG.1)
to the Right Cylinder Base Cover (labeled as D in
FIG.1).
STEP 3 Using the supplied
10–24 X 5/8" Phillips Head
Pan Screw, secure the Rear
Mount Spacer (labeled as
B in FIG.1) to the Right Cylin-
der Base Cover (labeled as D
in FIG.1).
-cont.-
7704-12MC-0705
Right Cylinder Base Cover — Chrome Right Cylinder Base Cover — Chrome
Left Cylinder Base Cover — Chrome Left Cylinder Base Cover — Chrome
Right Lower Cylinder Base Cover — Chrome Right Lower Cylinder Base Cover — Chrome
Front Mount Spacer — Chrome Front Mount Spacer — Chrome
Rear Mount Spacer — Chrome Rear Mount Spacer — Chrome
H/W Kit including the Following: H/W Kit including the Following:
10-24 X 1/2" Button Socket Cap Screw — Chrome 10-24 X 1/2" Button Socket Cap Screw — Chrome
1/4"–20 X 6" Socket Head Cap Screw — Chrome 1/4"–20 X 6" Socket Head Cap Screw — Chrome
10–24 X 5/8" Phillips Head Pan Screw 10–24 X 5/8" Phillips Head Pan Screw
Installation Instructions Installation Instructions
FIG.1
A
B
C
7 7 0 4
PIC.1
E
D
I N S TA L L AT I O N
