Strong SRT 24B3003 User Manual

With dvb-t2/c/s2
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

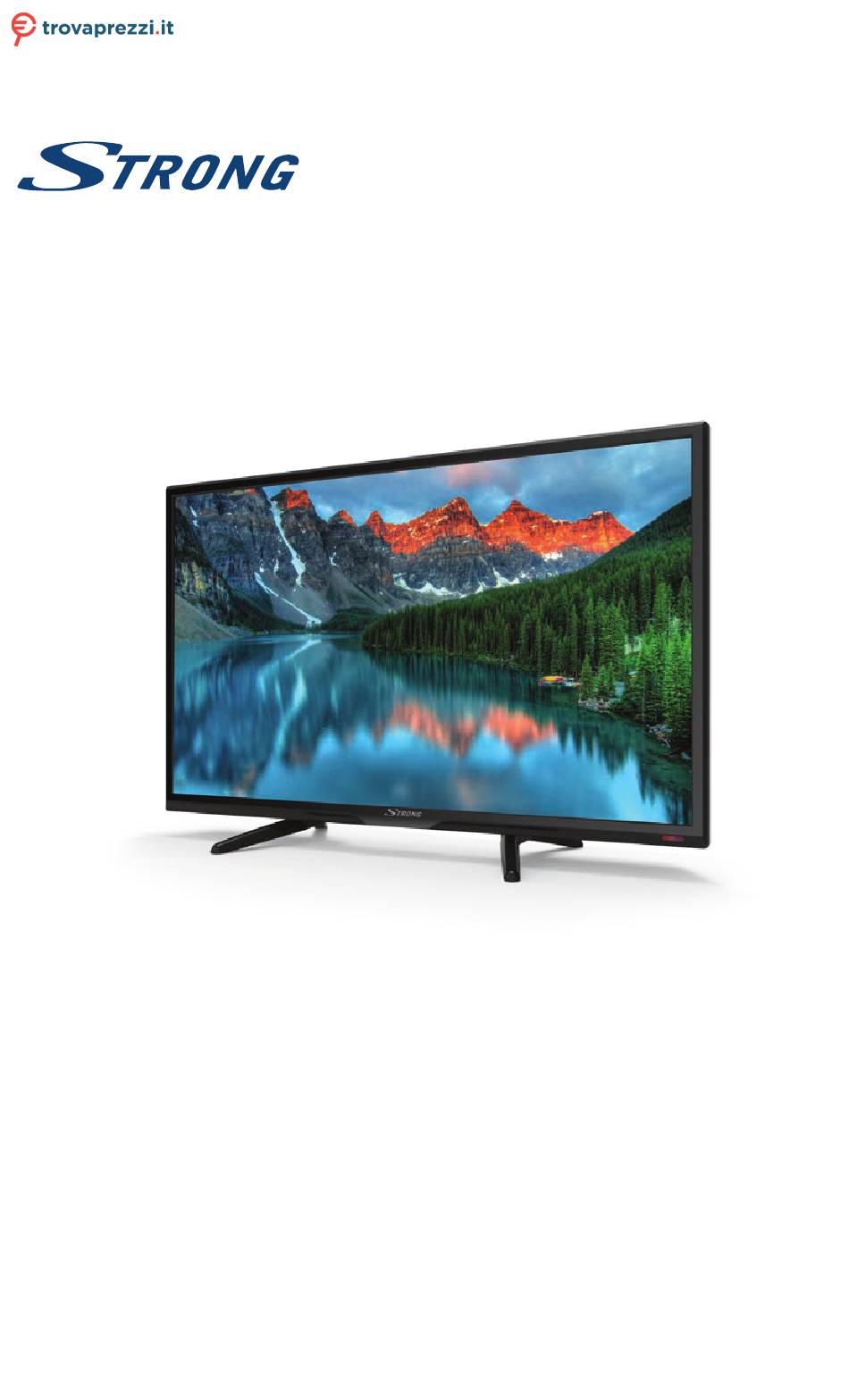

LED TV with DVB-T2/C/S2
SRT 24B3003
User Manual
Bedienungsanleitung
Manuel utilisateur
Manual del Usuario
Инструкции за употреба
Uživatelská příručka
Korisnički priručnik
Használati útmutató
Manuale utente
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
24HB3003
o cerca il tuo prodotto tra le
migliori offerte di Televisori
Gebruiksaanwijzing
Instrukcja obsługi
Manual do Utilizador
Manual de Utilizare
Uputsvo za upotrebu
Používateľská príručka
Navodila za uporabo
Посібник користувача
Руководство пользователя
Strong SRT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT 24B3003 and is the answer not in the manual?

Questions and answers

Related Manuals for Strong SRT 24B3003

Summary of Contents for Strong SRT 24B3003

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Strong SRT 24HB3003 o cerca il tuo prodotto tra le migliori offerte di Televisori LED TV with DVB-T2/C/S2 SRT 24B3003 User Manual Gebruiksaanwijzing Bedienungsanleitung Instrukcja obsługi Manuel utilisateur...
  • Page 4 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna, Austria Email: support_at@strong.tv 14 May 2019 17:46...
  • Page 5 Hereby, STRONG declares that the device SRT 24HB3003 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change.

  • Page 6: Table Of Contents

    To obtain the best performance and safety, please read this manual carefully. Please keep this manual for future reference. TABLE OF CONTENTS 1.0 INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Accessories 1.4 Equipment set-up 2.0 INSTALLATION 2.1 Default PIN code: 0000 2.2 Front panel/underside 2.3 Rear Panel 2.4 Remote control...

  • Page 7: Instruction

    1.0 INSTRUCTION 1.1 Safety Instructions Read all of the instructions before operating the set. Keep these instructions well for later use. Only use attachments/accessories specified or provided by the manufacturer (such as the „ „ exclusive supply adapter, battery etc.). Please refer to the information on the exterior back enclosure for electrical and safety „...

  • Page 8: Storage

    WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 9: Installation

    2.0 INSTALLATION 2.1 Default PIN code: 0000 2.2 Front panel/underside Fig. 2 NOTE: The graphics are for representation only. 1. Power indicator /remote sensor 2. Speakers 3. Buttons: Input source, Menu, V-/V+, CH-/CH+, Standby/ON. 2.3 Rear Panel NOTE: The graphics are for representation only. Fig.

  • Page 10: Installing The Batteries

    7. 0 ~ 9 Choose channel directly. 8. DIGIT_IMG Change the maxium input programme digit 9. 9 Press to go back to previous viewed channel. 10. INFO Display information about the current source. 11. FREEZE Press to hold the picture 12.

  • Page 11: Using The Remote Control

    Do not place the remote control under direct sunlight which will cause deformation of the unit „ „ by heat. When the remote sensor is under direct sunlight or strong lighting, the remote control will not „ „ work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor.

  • Page 12: Dvb-T/T2 Installation

    Select All to search DTV channels and Radio. Select RADIO to search radio Service Type channels only or DTV for only Digital TV channels. It is recommended to use the default settings. 3.2 DVB-T/T2 installation Terrestrial Setting Press ENTER to start directly searching for digital channels. Optional you can search also for analogue channels.

  • Page 13: Menu Settings

    GREEN Set a reminded to event or set even Timer function. YELLOW Overview of previous day BLUE Overview of next day 5.0 MENU SETTINGS Below items depend if they are available of select input source. Use SOURCE to select other source. Selections are Satellite, DTV, ATV, AV, PC, SCART, Component, HDMI and Media.

  • Page 14: Picture Menu

    Select the Sound system Sound System Fine-Tune Adjust the frequency of the channel Search Start the channel search 5.2.5 Channel extra settings Edit the programmes. You can press the COLOUR BUTTONS on the remote Programme Edit control to skip programmes, rename and delete programmes or move programmes, and add programmes to the favourite list by pressing FAV.

  • Page 15: Sound Menu

    5.3.2 Colour Temperature In this menu you can change the overall colour cast of the picture. Press pq to select Colour Temperature, then press ENTER to enter a sub-menu. Press pq to select the relevant picture effect (DEFAULT: Cold Normal Warm). lncrease the blue tone for the white.

  • Page 16: Lock

    This function allows you to set the automatic shutdown of your TV. Choose Auto Standby between 3H, 4H, 5H or Off to disable this function. OSD Timer This function allows you to choose how long the channellist banner is displayed. Choose between 5s, 15s or 30s. 5.6 Lock Press MENU to display the main menu.

  • Page 17: Setup Menu

    Press ENTER to Import the Database from a compatible TV. Import Database Press ENTER to Export the Database to a compatible TV. Export Database Press ENTER to reset all functions set in this menu. Clear Lock NOTE: For the Import Database and Export Database functions you need to connect a USB device formatted in FAT32.

  • Page 18: Media

    2. Back up all of the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.
  • Page 19 NOTE: By choosing one of the three media types, for example Movie, the folders inside will display only video files and no other formats. 6.2.1 Play movies Fig. 6 During playback, press INFO or ENTER to display/exit the menu bar (Fig. 6). Press the USB control buttons on the remote control to do relevant operations.
  • Page 20 NOTE: If one (or more) file(s) of the play list is selected, the buttons 7 8 will „ „ play only selected files. This menu only shows supported files. „ „ Files with other file extensions are not displayed, even if they are saved on „...

  • Page 21: Troubleshooting

    Service Hotline, or send an email to our support via www.strong.tv. DO NOT try to open or disassemble your TV set. It may cause a dangerous situation and the warranty will be void.
  • Page 22 3. DVB-S/S2: Satellite dish is too small. Trees or buildings are in path. Ask a local satellite specialist for advice. 4. DVB-S/S2: Signal is too strong, maybe need to be atennuated. Ask a local satellite specialist for advice. No colour 1.

  • Page 23: Specifications

    8.0 SPECIFICATIONS Audio Audio Output: 3 W + 3 W Video Channel coverage: DVB-T2: 174 MHz-230 MHz; 470 MHz-860 MHz DVB-C: 50-858 MHz DVB-S2: 950 MHz-2150 MHz System: DTV: DVB-T2, DVB-S2, DVB-C ATV: PAL/SECAM (BG/DK/1) AV: PAL, NTSC Connectors 1x ANT/CABLE IN 1x PC audio in 1x SAT IN 1x HDMI...
