Strong SRT 24HZ4003N User Manual

With dvb-t2/c/s2
Hide thumbs Also See for SRT 24HZ4003N:
Table of Contents

Advertisement

Quick Links

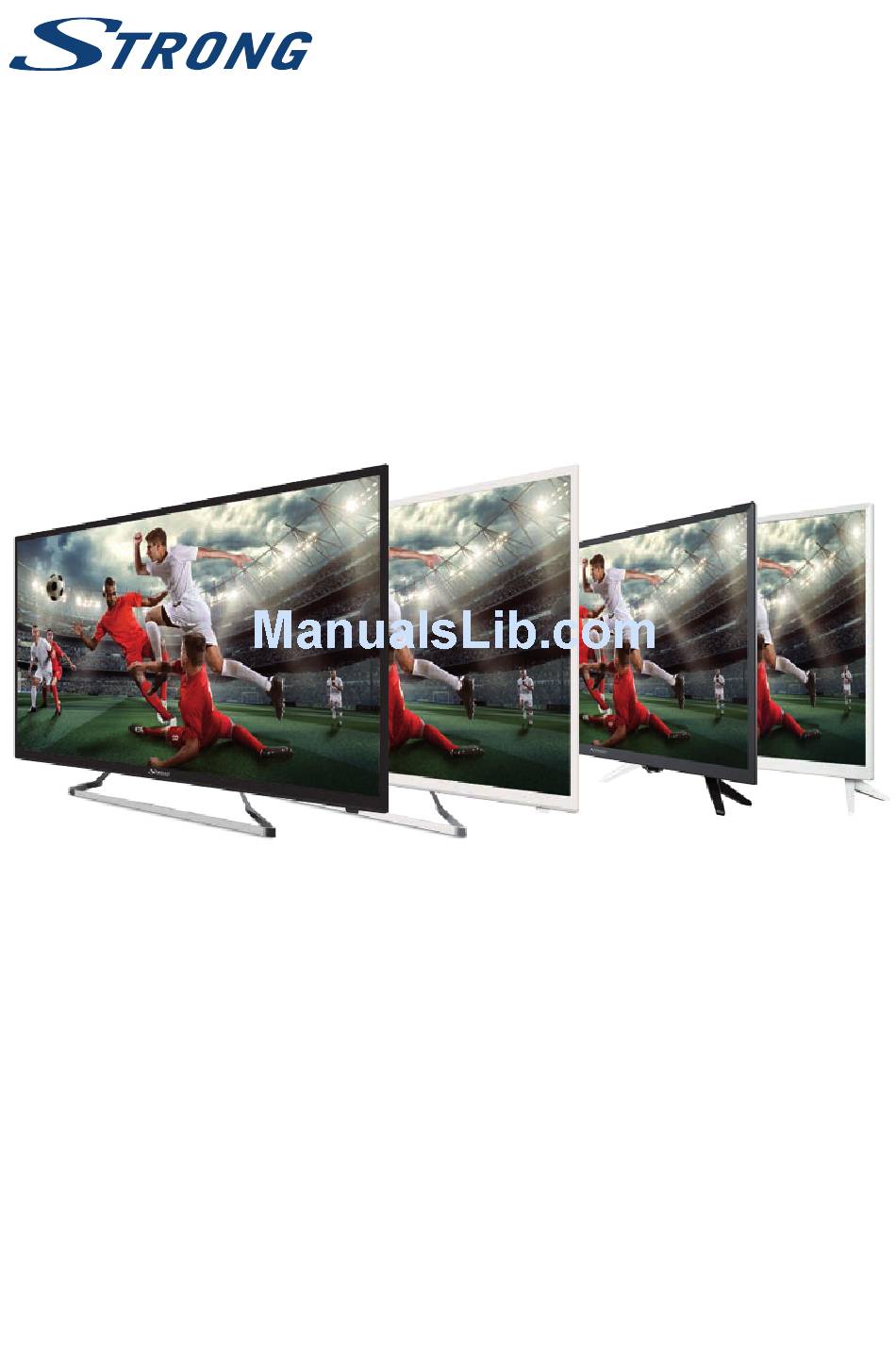

LED TV with DVB-T2/C/S2
SRT 24HZ4003N
SRT 32HZ4003N
SRT 39HZ4003N
SRT 40FZ4003N
User Manual
Bedienungsanleitung
Manuel utilisateur
Manuale utente
Manual do Utilizador
Инструкции за употреба
Руководство пользователя
Посібник користувача
Användar Manual
Uživatelská příručka
Navodila za uporabo
SRT 24HZ4003NW
SRT 32HZ4003NW
SRT 39HZ4003NW
SRT 40FZ4003NW
Korisnički priručnik
Uputsvo za rukovanje
Používateľská príručka
Használati útmutató
Manual del Usuario
Gebruiksaanwijzing
Manual de Utilizare
Brukermanual
Brugervejledning
Instrukcja obsługi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT 24HZ4003N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Strong SRT 24HZ4003N

Summary of Contents for Strong SRT 24HZ4003N

  • Page 1 LED TV with DVB-T2/C/S2 SRT 24HZ4003N SRT 24HZ4003NW SRT 32HZ4003N SRT 32HZ4003NW SRT 39HZ4003N SRT 39HZ4003NW SRT 40FZ4003N SRT 40FZ4003NW User Manual Korisnički priručnik Bedienungsanleitung Uputsvo za rukovanje Manuel utilisateur Používateľská príručka Manuale utente Használati útmutató Manual do Utilizador Brukermanual Инструкции...
  • Page 4 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna, Austria Email: support_at@strong.tv 04 Oct 2017 14:59...
  • Page 5 Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved. STRONG declares that the equipment complies with the European Directive 2014/30/EU (EMC) and the Low Voltage Directive 2014/35/ EU (LVD) and the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU in accordance with the following technical standards: ELECTROMAGNETIC COMPATIBILITY EN55013:2013;...

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1.0 INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Accessories 1.4 Equipment set-up 2.0 INSTALLATION 2.1 Default PIN code: 0000 2.2 Front panel/underside 2.3 Rear panel 2.4 Side panel 2.5 Remote control 2.6 Installing the batteries 2.7 Using the remote control 3.0 FIRST TIME INSTALLATION 3.1 DVB-S/S2 installation 3.2 DVB-T/T2 installation...

  • Page 7: Instruction

    1.0 INSTRUCTION 1.1 Safety Instructions Read all of the instructions before operating the set. Keep these instructions well for later use. Only use attachments/accessories specified or provided by the manufacturer (such as the „ „ exclusive supply adapter, battery etc.). Please refer to the information on the exterior back enclosure for electrical and safety „...

  • Page 8: Storage

    WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 9: Rear Panel

    1. Power indicator /remote sensor 2. Speakers 3. Buttons: Input source, Menu, V-/V+, CH-/CH+, Standby/ON. 4. Power switch ON/OFF* * Except 24” 2.3 Rear panel NOTE: The graphics are for representation only. 2.3.1 24 inch Fig. 3a 1. USB Connect a USB device for playback of multimedia files 2.

  • Page 10: Side Panel

    2.3.4 40 inch 1. AC INPUT (FIXED CABLE) Main power cable (100 - 240 V ~ 50/60 Hz) 2. S/PDIF (coax. output) Use an RCA cable to connect your TV to a compatible digital amplifier or Home theatre set. 3. VIDEO/AUDIO L/R Connect AUDIO and VIDEO input signals from a signal source such as DVD.

  • Page 11: Remote Control

    2.5 Remote control Fig. 4 1. ! Press to mute or restore the volume. 2. q Press to turn the TV on or standby. 3. ASPECT Change aspect ratio. 4. SOUND Change sound mode. 5. EPG Press to display the current EPG information in DTV mode. 6.

  • Page 12: Installing The Batteries

    Do not place the remote control under direct sunlight which will cause deformation of the unit „ „ by heat. When the remote sensor is under direct sunlight or strong lighting, the remote control will not „ „ work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor.

  • Page 13: Dvb-S/S2 Installation

    3.1 DVB-S/S2 installation Satellite Setting Select firstly the region where you are using the TV. This important to set time zone correct. Use the t upq and confirm with OK. Press pq to highlight the satellite your dish is aimed at. Confirm with OK to mark the satellite. Use the t upq buttons to change settings for your satellite installation for each specific satellite.

  • Page 14: Electronic Programme Guide (Epg)

    Select FTA Channels to search Free-To-Air channels only or All Channels to Crypted search FTA and encrypted channels Press pq t u to highlight the country that you want to install, then press OK to start searching. 4.0 ELECTRONIC PROGRAMME GUIDE (EPG) EPG stands for Digital Electronic Programme Guide.

  • Page 15: Sound Menu

    Adjust the optical fiber output of the entire picture, it will effect the dark Brightness region of the picture. Adjust the saturation of the colour based on your own preference. Colour Tint No function Sharpness Adjust the peaking in the detail of the picture. 5.2.2 Colour Temperature In this menu you can change the overall colour cast of the picture.

  • Page 16: Channel

    5.4 Channel Press MENU to display the main menu. Press t u to select Channel in the main menu. Press pq to select the option you wish to adjust in the Channel menu. Press OK to adjust. After finish your adjustment, press OK to save and return to the previous menu. Below items depend if they are available of select input source.

  • Page 17: Time Menu

    Press pq in the Channel. Select Schedule List, then press OK to enter the sub- Schedule List menu. Use the COLOUR BUTTONS to modify your settings. Press OK and use t u to select Yes if you want to update the software or No Software Update (USB) to go back to the main menu.

  • Page 18: Usb

    2. Back up all of the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.

  • Page 19: Usb Menu

    6.2 USB menu Press SOURCE and select USB. You can view movie, music and photo files from your USB storage devices. Connect a USB storage device to the USB input terminal and select the types of media on the home page: Movie, Music, Photo and text.

  • Page 20: Browse Photos

    Highlight the icon and press OK. You can select 3 different modes: None to Repeat disable the function, 1 to repeat one track only and All to repeat the entire list once it is finished. Highlight the icon and press OK to check the information of the playing Information music.

  • Page 21: Troubleshooting

    Before calling a service technician, review following information for possible causes and solutions for the problem you are experiencing. If the TV does not work properly after checking it, please contact your local service line or STRONG dealer. Alternatively you can send a support mail via our website www. strong.tv.
  • Page 22 Make sure your dish installation is up to standards to minimize rain effects. When in doubt, ask a local satellite specialist for advice. NOTE: If the problem persists after these solutions, please contact your local support centre or send a support mail via our website www.strong.tv.

  • Page 23: Specifications

    8.0 SPECIFICATIONS Audio Audio Output: 6 W + 6 W Video Channel coverage: DVB-T2: 174 MHz-230 MHz; 470 MHz-860 MHz DVB-C: 50-858 MHz DVB-S2: 950 MHz-2150 MHz System: DTV: DVB-T2, DVB-S2, DVB-C ATV: PAL/SECAM (BG/DK/1) AV: PAL, NTSC Connectors 24 inch, 39 inch 1 x ANT/CABLE IN 1 x SAT IN 1 x CI+...

  • Page 24: Appendix

    General Data Operating voltage: 100 ~ 240 V AC 50/60 Hz Power consumption: 24”: max. 33 W, typ. 19 W 32” max. 53 W, typ. 33 W 39”: max. 68 W, typ. 53 W 40”: max. 76 W, typ. 50 W 24”, 32”, 39”, 40”: <0.5 W Power consumption in standby: 24”, 32”, 39”, 40”: <0.5 W...
  • Page 25 File Type/(Ext Name) File Extension Version support Remark Ogg Media .ogg, .ogm, .oga, .ogv, .ogx Photo File Type File Extension Version support Remark JPEG/ BASELINE JPEG/ jpg/jpeg HD JPEG support all modes support interlace does not support animation mode...
