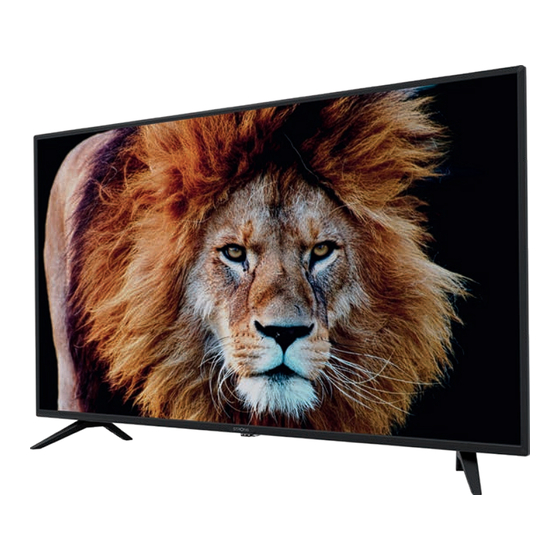

LED TV with DVB-T2/C/S2
SRT 43FD4003
User Manual
Instrukcja obsługi
Bedienungsanleitung
Manual do Utilizador
Manuel utilisateur
Manual de Utilizare
Manual del Usuario
Uputsvo za upotrebu
Инструкции за употреба
Používateľská príručka Navodila
Uživatelská příručka
za uporabo
Korisnički priručnik
Посібник користувача
Használati útmutató
Руководство пользователя
Manuale utente
Οδηγίες χρήσης για τον
Gebruiksaanwijzing
καταναλωτή
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Strong SRT 43FD4003
Summary of Contents for Strong SRT 43FD4003

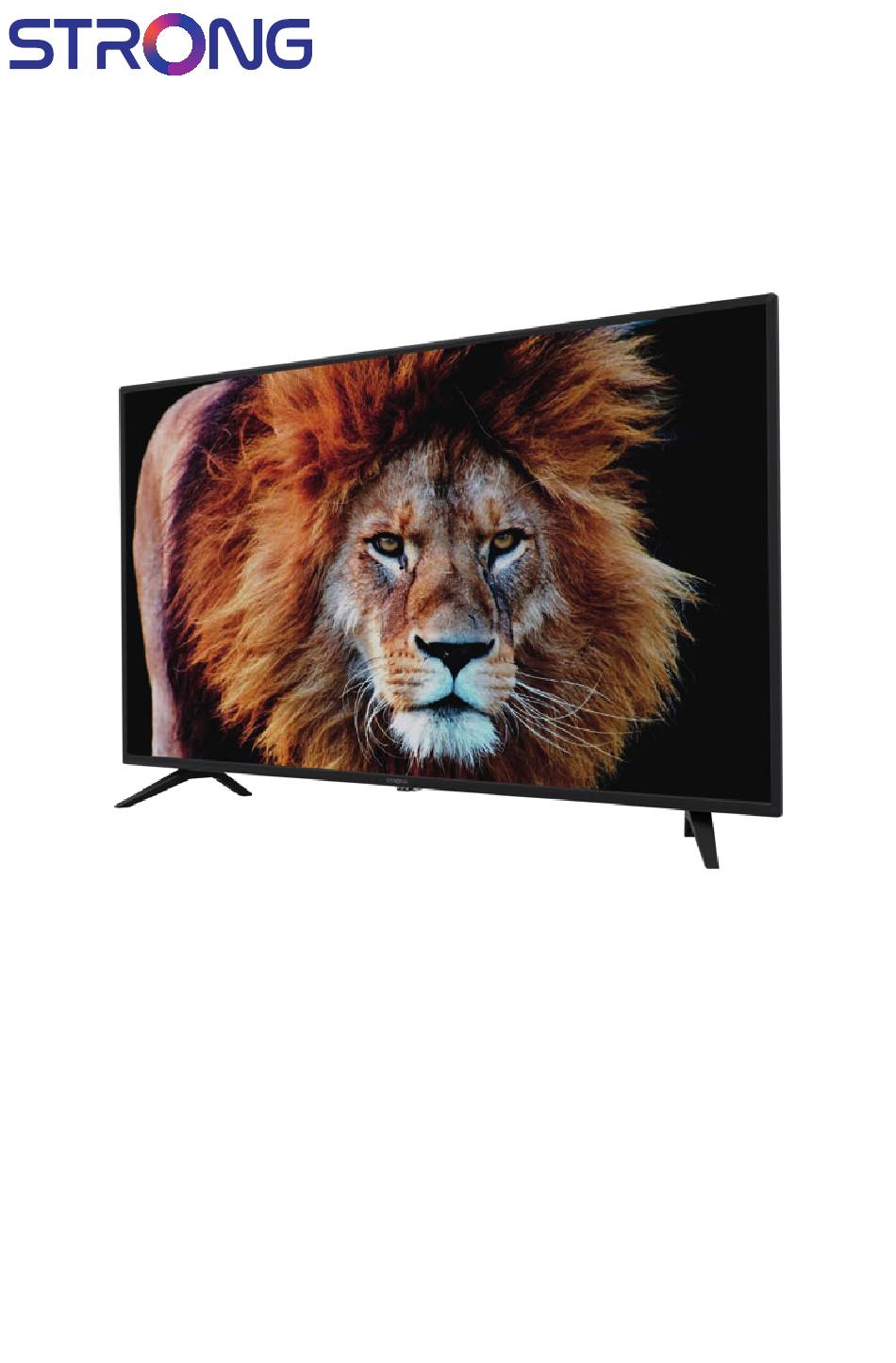

- Page 1 LED TV with DVB-T2/C/S2 SRT 43FD4003 User Manual Instrukcja obsługi Bedienungsanleitung Manual do Utilizador Manuel utilisateur Manual de Utilizare Manual del Usuario Uputsvo za upotrebu Инструкции за употреба Používateľská príručka Navodila Uživatelská příručka za uporabo Korisnički priručnik Посібник користувача Használati útmutató...
- Page 4 Supplied by STRONG Austria Represented by STRONG Ges.m.b.H. Franz-Josefs-Kai 1 1010 Vienna, Austria Email: support_at@strong.tv 02 Mar 2022 20:38...
- Page 5 Hereby, STRONG declares that the device SRT 43FD4003 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change.
-
Page 6: Table Of Contents
To obtain the best performance and safety, please read this manual carefully. Please keep this manual for future reference. TABLE OF CONTENTS 1.0 INSTRUCTION 1.1 Safety Instructions 1.2 Storage 1.3 Accessories 1.4 Equipment set-up 2.0 INSTALLATION 2.1 Default PIN code: 1234 2.2 Front panel/underside 2.3 Rear Panel 2.4 Remote control... -
Page 7: Instruction
1.0 INSTRUCTION 1.1 Safety Instructions Read all of the instructions before operating the set. Keep these instructions well for later use. Only use attachments/accessories specified or provided by the manufacturer (such as the „ exclusive supply adapter, battery etc.). Please refer to the information on the exterior back enclosure for electrical and safety „... -
Page 8: Storage
WEEE Directive Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. -
Page 9: Installation 2.1 Default Pin Code: 1234
2.0 INSTALLATION 2.1 Default PIN code: 1234 2.2 Front panel/underside Fig. 2 NOTE: The graphics are for representation only. 1. Power indicator /remote sensor 2. Speakers 3. Buttons: Standby/ON. 2.3 Rear Panel Fig. 3 NOTE: The graphics are for representation only. 1. SCART Connect devices like DVD or VCR using SCART cable. -
Page 10: Installing The Batteries
7. 0 ~ 9 Choose channel directly. 8. -/-- Change the maximum input programme digit. 9. 9 Press to go back to previous viewed channel. 10. INFO Display information about the current source. 11. FREEZE Press to hold the picture. 12. -
Page 11: Using The Remote Control
Do not place the remote control under direct sunlight which will cause deformation of the unit „ by heat. When the remote sensor is under direct sunlight or strong lighting, the remote control will not „ work. If so, please change the lighting or TV's position, or operate the remote control closer to the remote sensor. -
Page 12: Dvb-T/T2 Installation
Satellite Press t u to choose the satellite your dish is aimed at. Scan Mode Choose between Default (recommended), Blind Scan, Network and Fast Scan. Channel type Select Free to search Free-To-Air channels only Free + Scrambled to search FTA and Encrypted channels or Scramble to search Encrypted channels only. Service Type Select All to search DTV channels and Radio. -
Page 13: Electronic Programme Guide (Epg)
Press ENTER to start searching for digital channels. 4.0 ELECTRONIC PROGRAMME GUIDE (EPG) EPG stands for Digital Electronic Programme Guide. It is supplied by the programme providers and offers information on broadcasted programmes. You can access it in digital mode by pressing EPG on the remote control. -
Page 14: Colour Temperature
5.2.1 Picture Mode If Picture Mode is set to Personal you can change the following settings. Press pq to select an option, then press t u to adjust. Backlight Adjust the brightness of the screen backlight. Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable. -
Page 15: Sound Mode
Enjoy Music The available options are ON and OFF. Auto Volume Adjust the volume corresponding to the input audio level. Options are On and Off. S/PDIF Type If you have connected S/PDIF output to digital home audio system. You can select Auto to output Dolby audio automatically. -
Page 16: Programme Edit
Current CH Set the channel number. Colour System Select the colour system (Available: AUTO, PAL, NTSC and SECAM). Sound System Select the Sound system. Fine-Tune Adjust the frequency of the channel. Search Start the channel search. 5.4.3 DTV Manual Tuning (in DVB-T and DVB-C mode only) Search and store programmes manually. -
Page 17: Dish Setup
5.4.8 Dish Setup If you use Satellite as input source, and you use an DiSEqC device or a motor to manage the movement of the dish, the Dish Setup menu allows you to set all the parameters necessary for an optimal attitude. When a satellite is selected (on the left side of the screen), the color buttons described at the bottom of the screen, allow you to Edit GREEN, Add YELLOW or Delete RED one or more satellite in the list. -
Page 18: Setup
NOTE: the difference between the Sleep Timer and Auto Standby functions are that the first turns off the TV regardless of the user's reactions, while the second turns off the TV after the preset time but the count starts from the last reaction made by the user. -
Page 19: Lock
5.7 Lock Press MENU to display the main menu. Press pq to select the Lock menu settings, and ENTER to access the sub-menu. To unblock this menu, it is necessary to enter the PIN code (default:1234) and set the selection to On. Then press pq to select the options. The following options are available: System Lock This option allows you to enable or disable the password protection. -
Page 20: Media
1. Some USB storage devices may not be compatible to operate smoothly with this TV. 2. Back up all the data in the USB storage device in case data is lost due to an unexpected accident. STRONG does not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility. -
Page 21: Play Music
Play & Pause/Stop/Prev./Next Press PLAY 2 to play or pause the playback. Press 3 to stop playing. Press 7 8 to play the previous or the next video file. Press INFO and use t u to highlight the corresponding icon on the control bar, then press ENTER. The TV will response accordingly. -
Page 22: Browse Photos
Service Hotline, or send an email to our support via www.strong.tv. DO NOT try to open or disassemble your TV set. It may cause a dangerous situation and the warranty will be void. - Page 23 4. DVB-S/S2: Satellite dish is too small. Trees or buildings are in path. Ask a local satellite specialist for advice. 5. DVB-S/S2: Signal is too strong, maybe need to be attenuated. 6. Ask a local satellite specialist for advice. No colour 1.
-
Page 24: Specifications
TV switches OFF after 4 hours to fulfil European low power regulations and help you to save energy. NOTE: If the problem persists after these solutions, please contact your local support centre or send a support mail via our website www.strong.tv. 8.0 SPECIFICATIONS Audio: Audio Output:... - Page 25 Connectors: 1x HDMI 1.4 (CEC) 1x HDMI 1.4 (ARC) 1x USB 2.0 1x Mini AV IN 1x Mini YPbPr 1x COMMON INTERFACE (CI) 1x HEADPHONES 1x SCART 1x S/PDIF (coax.) 1x SAT IN 1x ANT/CABLE IN General Data: Operating voltage: 110 ~ 240 V AC 50/60 Hz Power consumption: max.
