TWO IN ONE MAGNETIC

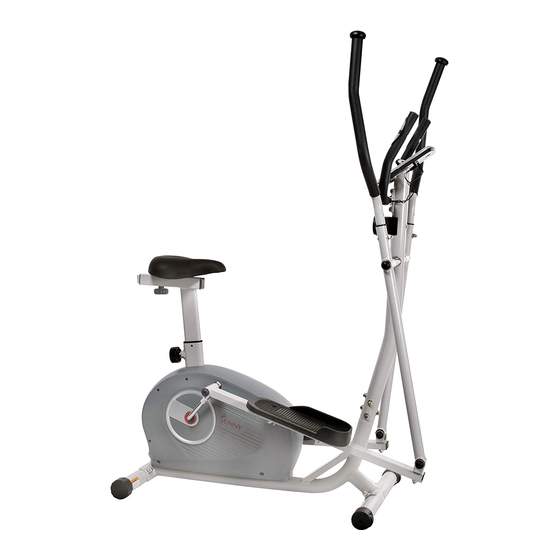

ELLIPTICAL UPRIGHT BIKE
SF-E3903
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment
instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL
YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY
(877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-E3903
Summary of Contents for Sunny Health & Fitness SF-E3903
- Page 1 TWO IN ONE MAGNETIC ELLIPTICAL UPRIGHT BIKE SF-E3903 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION 安全使用须知 We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1 产品分解图及零件目录表... - Page 4 EXPLODED DIAGRAM 2...
-
Page 5: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Rear Stabilizer Left Swing Rod Rear End Cap Right Swing Rod Square Neck Bolt M10*57 Hex Bolt M8*16 Front Stabilizer Spring Washer Φ8.5*Φ32*2 Front End Cap Washer Φ10*Φ20*2 Φ32 Curve Washer Shaft Sleeve Cap Nut Hex Bolt M8*35... - Page 6 Description Spec. Qty. Description Spec. Qty. Tension Control Belt Wire Screw M5*40 Spring Washer Curve Washer Snap Ring Square End Cap Magnetic Board Axis Crank Magnetic Board Main Frame Magnetic Tension Control Magnetic Support Down Wire Pin Knob Tension Spring Square End Cap Screw ST3*10...
-
Page 7: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed. The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 8 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: 产品装配方式 Attach the Front & Rear Stabilizer (No. 4 & No. 1) to the Main Frame (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: Remove 1 Screw (No. 55) and 1 Curve Washer (No. 56) from the Tension Control Knob (No.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Attach 2 Sleeves (No. 43) and 2 Corrugated Washers (No. 44) onto Handlebar Post (No. 42). Attach Left Swing Rod (No.
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Attach Left & Right Pedals (No. 17L/R) and Pedal Plate（115）to Left Connecting Rod (No. 15L) and Right Connecting Rod (No.
- Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Attach Small Handlebar (No. 50) to Handlebar Post (No. 42) with 2 Bolts (No. 41) and 2 Curve Washers (No.
- Page 13 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Attach Left Handlebar (No. 37L) and Right Handlebar (No. 37R) into Left Swing Rod (No. 28L) and Right Swing Rod (No.
- Page 14 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 8: Attach the Seat Post (No. 69) to Main Frame (No. 59). Loosen and pull out Pin Knob (No.
- Page 15 ADJUSTMENTS & USAGE GUIDE HOW TO MOVE THE ELLIPTICAL The Front End Caps (No. 5) on the Front Stabilizer (No. 4) is movable. Hold the Left /Right Handlebars (No. 37L/R) and pull forward to lift the rear of the elliptical off the floor. Now you can move the elliptical bike.
-
Page 16: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AAA batteries from meter box. 2. Press the buckle of battery cover on the Computer (No. 45), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 45). Pay attention to the battery + and –... -
Page 17: Function Buttons
EXERCISE METER FUNCTION BUTTONS MODE: Press to display different function selections on LCD. Press and hold for 2 seconds to reset all values except odometer to zero. SET: To set up the target value for TIME, DISTANCE, and CAL. Press and hold for 2 seconds to speed up the increment. RESET: Press to reset function value during setting. - Page 18 6. CALORIES: Accumulates calories burned during training from 0.0 to 9999 calories. Press SET & MODE button to set your target calorie and it will automatically count down from target value once you start exercise. Each increment is 1 Cal. NOTE: This data was designed to be the guide for exercise use only and should not be used for medical purpose.
-
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from computer properly connected to the wire that comes from the handlebar post. There is no display on the computer. Check if the batteries are correctly positioned and battery springs are in proper contact with batteries.
