- Page 1 Cod.006.0001.1880 22/11/2016 v2.2 ENGLISH WECO srl Via S. Antonio, 22 - BELVEDERE 36056 TEZZE SUL BRENTA (VICENZA) ITALY Tel.+39 0424 561943 - Fax +39 0424 561944 www.weco.it - E-mail info@weco.it CU-12 CU-12-HP Instruction manual 1/12...
- Page 2 Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH 2/12...
-
Page 3: Table Of Contents
Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH CONTENTS INTRODUCTION ............................4 INSTALLATION ............................4 FRONT PANEL ............................4 REAR PANEL ............................. 4 ASSEMBLY WITH THE WELDING POWER SOURCE ................5 TECHNICAL DATA ............................ 6 SPARE PARTS ............................7 ELECTRICAL DIAGRAM ......................... 10... -
Page 4: Introduction

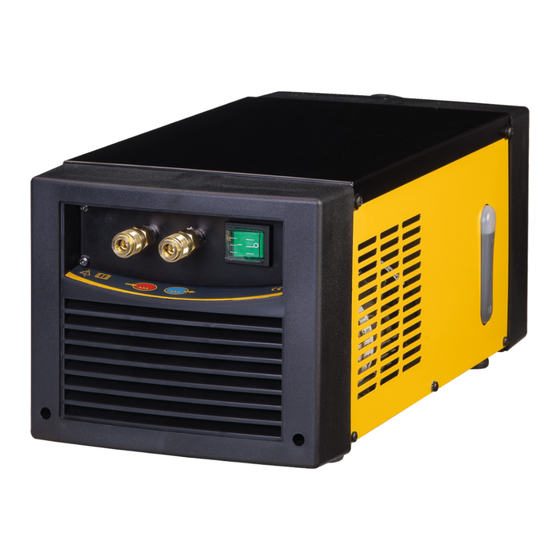

The figures in this manual are purely guideline and the images may contain differences with respect to the actual equipment to which they refer. INTRODUCTION The cooling unit CU-12/CU-12-HP can be connected to the generator, allowing the liquid cooling of the TIG torch. 1. Fuse. Type: Delayed acting (T) Amperage: 2.5 A... -
Page 5: Assembly With The Welding Power Source
Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH 5. Secure the cooler brackets to the power source using the 2. Power cable. previously removed screws. Total length (including internal part): 0,95 m Number and cross section of wires: 5 x 1 mm Power plug type: ILME 16 A 230 / 400 Va.c. -
Page 6: Technical Data
Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH TECHNICAL DATA Model CU-12 EN 60974-2 Construction standards EN 60974-10 Class A Supply voltage 1 x 230 V~ ± 15 % / 50-60 Hz Dimensions ( L x D x H ) 530 x 230 x 210 mm Weight 12.0 kg (15.8 kg with liquid) -
Page 7: Spare Parts
Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH SPARE PARTS 7/12... - Page 8 UPPER COVER 017.0003.0022 DOUBLE HOLLOW BOLT M= 1/4 003.0003.0003 RADIATOR 011.0000.1001 RIGHT SIDE COVER 017.0003.0021 HOLLOW BOLT M= 1/4 003.0004.0027 PUMP CU-12 003.0004.0031 PUMP CU-12-HP 011.0012.0018 TANK FIXING PLATE 003.0003.0012 TANK 003.0003.0016 GASKET 016.5001.3042 SLEEVE HOSE ADAPTER FOR RUBBER HOSE d= 10 mm F= 1/4 M 017.0003.0024...
- Page 9 Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH COUPLINGS KIT ALREADY ASSEMBLED 010.0000.0068 PRESSURE SWITCH CONNECTOR KIT 010.0000.0071 PUMP CONNECTION KIT (B) 010.0000.0072 PUMP CONNECTION KIT (C) 9/12...
-
Page 10: Electrical Diagram
Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH ELECTRICAL DIAGRAM 10/12... - Page 11 Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH 11/12...
- Page 12 Cod.006.0001.1880 CU-12 22/11/2016 v2.2 CU-12-HP ENGLISH 12/12...
