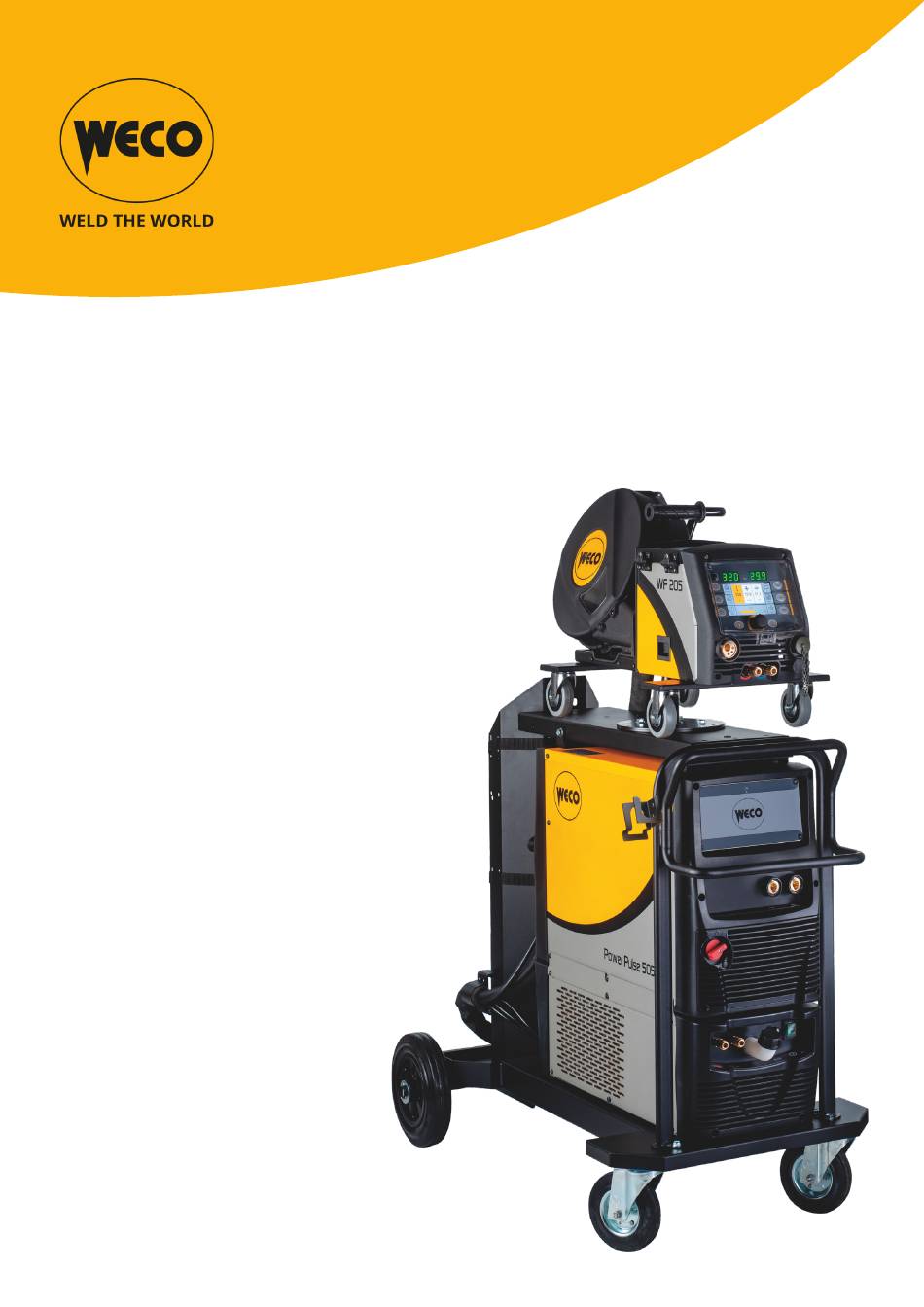

- Page 1 POWER PULSE DIGITAL 405d POWER PULSE DIGITAL 505d Instruction manual ENGLISH Translation of original instructions Cod. 006.0001.2140 15/09/2021 V.2.2...
- Page 2 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD...
-
Page 3: Table Of Contents
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD INDEX INTRODUCTION ............................4 INTRODUCTION ............................5 INSTALLATION ............................6 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK ..............6 FRONT PANEL ............................. 6 REAR PANEL ............................... 7 USER INTERFACE ............................ -
Page 4: Introduction
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD INTRODUCTION IMPORTANT! This handbook must be consigned to the user prior to installation and commissioning of the unit. Read the "General prescriptions for use" handbook supplied separately from this handbook before installing and commissioning the unit. -
Page 5: Introduction

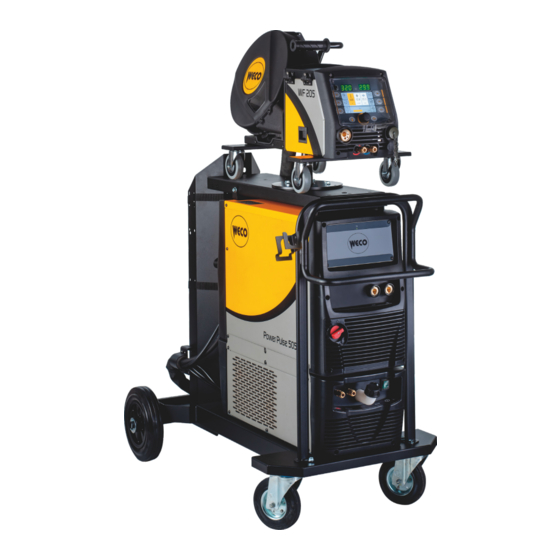

Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD 1.1 INTRODUCTION Power Pulse 405d-505d is a power source for welding. When combined with a wire feeder it can be used for MIG/MAG welding. Fan. The fan is turned on only during welding, at the end of the welding process it remains on for a fixed period of time according to welding conditions. The fan is nonetheless controlled by specific thermal sensors that guarantee a correct cooling of the machine. Accessories/ancillary devices that can be connected to the unit: - Power source trolley for multi-function configuration (MIG/MAG). - Liquid cooler for MIG/MAG torches. - Wire feeder. -
Page 6: Installation
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD INSTALLATION DANGER! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. 2.1 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK The mains power supply features to which the equipment should be connected are given in chapter “TECHNICAL DATA”. -
Page 7: Rear Panel
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD 2.3 REAR PANEL ○ Cooler group power feeding connector [Item 1]. • Voltage: 400 V a.c. • Current output: 1.0 A • IP protection rating: IP20 (cap open) / IP66 (cap closed) DANGER! High voltage! If the socket is not connected to any devices always close cap ○... -
Page 8: User Interface
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD USER INTERFACE Power Pulse 405d - Power Pulse 505d CODE SYMBOL DESCRIPTION This LED illuminates to confirm the presence of power on the output sockets. -
Page 9: Technical Data
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD TECHNICAL DATA Waste electrical and electronic equipment (WEEE) Electromagnetic compatibility (EMC) Directives applied Low voltage (LVD) Restriction of the use of certain hazardous substances (RoHS) Construction standards EN 60974-1; EN 60974-10 Class A Equipment compliant with European directives in force Equipment suitable in an environment with increased hazard of electric shock Conformity markings Equipment compliant with WEEE directive Equipment compliant with RoHS directive 3 x 400 Va.c. ± 15 % / 50-60 Hz Supply voltage 3 x 230 Va.c. ± 15 % / 50-60 Hz Mains protection 30 A 500 V Delayed This equipment complies with IEC 61000-3-12 provided that the maximum permis- sible system impedance is less than or equal to 25 mΩ at the interface point between... - Page 10 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD Power Pulse 405d Falling characteristic Static characteristic TIG Falling characteristic MIG/MAG Flat characteristic MIG/MAG Welding mode 400 Va.c. 400 Va.c. 400 Va.c. (230 Va.c.) (230 Va.c.) (230 Va.c.)
- Page 11 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD Power Pulse 505d Falling characteristic Static characteristic TIG Falling characteristic MIG/MAG Flat characteristic MIG/MAG Welding mode 400 Va.c. 400 Va.c. 400 Va.c. (230 Va.c.) (230 Va.c.) (230 Va.c.)
-
Page 12: Electrical Diagram
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD ELECTRICAL DIAGRAM 5.1 POWER PULSE 405d/505d→WF-205 CABLE... -
Page 13: Power Pulse 405D/505D
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD 5.2 POWER PULSE 405d/505d... - Page 14 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD...
- Page 15 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD...
- Page 16 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD...
- Page 17 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD...
-
Page 18: Spare Parts
Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD SPARE PARTS... - Page 19 Power Pulse DIGITAL 405d Cod. 006.0001.2140 15/09/2021 V.2.2 Power Pulse DIGITAL 505d ENGLISH WELD THE WORLD N° CODE DESCRIPTION N° CODE DESCRIPTION 013.0023.0701 FRONT PANEL LABEL 45 011.0013.0152 TUNNEL SUPPORT PLATE 013.0000.8044 FRONTAL PANEL PLATE 46 015.0001.0022 HEAT SINK 17X37.3X162 050.0002.0096 LED BOARD 47 011.0013.0151...
- Page 20 WECO srl www.weco.it Cod. 006.0001.2140 15/09/2021 V.2.2...
