- Page 1 Cod.006.0001.1900 17/03/2017 v2.3 ENGLISH WECO srl Via S. Antonio, 22 - BELVEDERE 36056 TEZZE SUL BRENTA (VICENZA) ITALY Tel.+39 0424 561943 - Fax +39 0424 561944 www.weco.it - E-mail info@weco.it Pioneer Pulse 321MSR Instruction manual...
- Page 2 Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH 2/14...
-
Page 3: Table Of Contents
UNIT ASSEMBLY ..............6 CONNECTIONS TO THE ELECTRICAL MAINS NETWORK . 6 USER INTERFACE ..............7 TECHNICAL DATA ..............8 SPARE PARTS ............... 9 PIONEER PULSE 321MSR ............. 9 ELECTRICAL DIAGRAM ............11 PIONEER PULSE 321MSR→WF-104 CABLE ..... 13 3/14... -
Page 4: Introduction

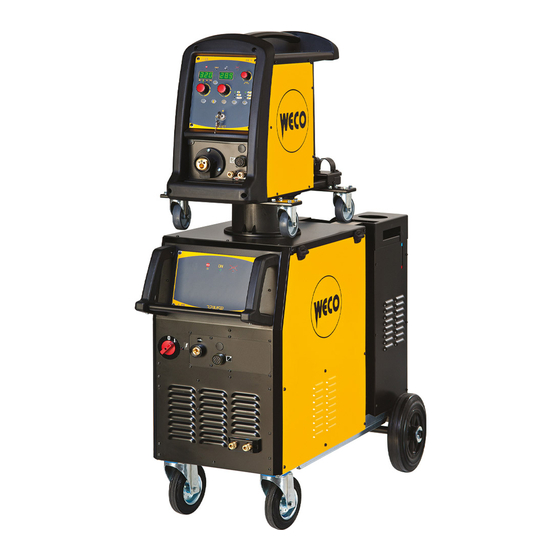

This symbol identifies a reference to a chapter of the manual. This symbol accompanies important information concerning the execution of the relevant operations. Pioneer Pulse 321MSR is a power source for welding. When combined with a wire feeder it can be used for MIG/MAG welding. -
Page 5: Rear Panel
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH REAR PANEL 1: Cooler power feeding connector. Voltage 230 V~ Current Output 0.8 A IP20 (cap open) IP protection rating IP66 (cap closed) WARNING! High voltage! If the socket is not connected to any devices always close the cap: presence of hazardous voltage levels! 2: Power supply transformer fuse. -
Page 6: Installation
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH INSTALLATION WARNING! Lifting and positioning Read the warnings highlighted by the following symbols in the “General prescriptions for use”. UNIT ASSEMBLY 1. Fit the front swivel wheels with the supplied screws. 2. Screw the fixed rear wheels to the studs in the base of the unit and secure them with the supplied nuts. -
Page 7: User Interface
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH USER INTERFACE CODE SYMBOL DESCRIPTION This LED illuminates to show an anomaly in the operating conditions. For information on alarm management, please refer to the relevant section in the manual of the wire feeder. -
Page 8: Technical Data
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH TECHNICAL DATA Model Pioneer Pulse 321MSR Construction EN 60974-1 standards EN 60974-10 Class A Supply voltage 3 x 400 V~± 15 %/ 50-60 Hz This equipment complies with IEC 61000-3-12 provided that the maximum permissible system impedance is less than or equal to 35 mΩ at the interface point between the user's supply and the public system. -
Page 9: Spare Parts
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH SPARE PARTS PIONEER PULSE 321MSR 9/14... - Page 10 Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH N° CODE DESCRIPTION 011.0006.0030 RIGHT HANDLE 011.0016.0128 FRONT HANDLE 021.0001.0259 FIXED SOCKET 400 A 011.0006.0029 LEFT HANDLE 013.0022.0301 FRONT PANEL LABEL 013.0000.8013 LOGIC BOARD PLATE 050.0001.0096 LED BOARD 050.5129.0000 COMPLETE FRONT PANEL 011.0016.0134 FRONT PLATE (1) 040.0001.0017...
-
Page 11: Electrical Diagram
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH ELECTRICAL DIAGRAM 11/14... - Page 12 Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH 12/14...
-
Page 13: Pioneer Pulse 321Msr→Wf-104 Cable
Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH PIONEER PULSE 321MSR→WF-104 CABLE 13/14... - Page 14 Cod.006.0001.1900 Pioneer Pulse 321MSR 17/03/2017 v2.3 ENGLISH 14/14...
