- Page 1 Cod.006.0001.1660 12/12/2019 v2.7 ENGLISH WECO srl Via S. Antonio, 22 - BELVEDERE 36056 TEZZE SUL BRENTA (VICENZA) ITALY Tel.+39 0424 561943 - Fax +39 0424 561944 www.weco.it - E-mail info@weco.it CU-09 CU-09-HP CU-09F Instruction manual 1/16...
- Page 2 CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F 2/16...
-
Page 3: Table Of Contents
FRONT PANEL ............................4 REAR PANEL ............................. 4 ASSEMBLY WITH THE WELDING POWER SOURCE ................5 CU-09F BYPASS ............................6 TECHNICAL DATA ............................ 6 SPARE PARTS ............................7 CU-09 / CU-09-HP ............................7 CU-09F ..............................9 ELECTRICAL DIAGRAM ......................... 13 3/16... -
Page 4: Introduction

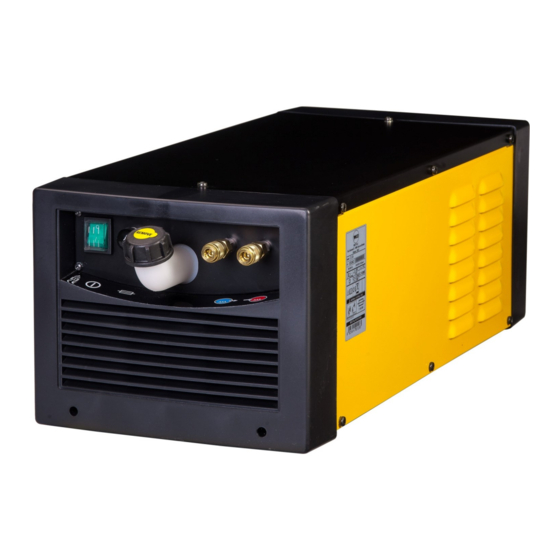

The cooling unit CU-09/ CU-09-HP can be connected to the generator, allowing the liquid cooling of the TIG torch. The CU-09 cooling unit is fitted with a pressure switch provided to detect fluid in the cooling circuit. The CU-09F cooling unit is fitted with a pressure switch provided to detect fluid flowing in the cooling circuit. -
Page 5: Assembly With The Welding Power Source
CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F 2. Connector for coolant hose: CLAMPING PLATE cooler power source CODE: 011.0012.0107 3. Power cable. Total length (including internal part): 1,5 m Number and cross section of wires: 5 x 1 mm Power plug type: ILME 16 A 230 / 400 Va.c. -
Page 6: 2.4 Cu-09F Bypass
TECHNICAL DATA 7. Plug the power cable plug into a mains socket outlet. 8. Set the welding power source ON/OFF switch to “I” to switch on Model CU-09/ CU-09F the unit. EN 60974-2 Construction standards 9. Set the cooler ON/OFF switch to “I” (unit powered). -
Page 7: Spare Parts
CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F SPARE PARTS 4.1 CU-09 / CU-09-HP 7/16... -
Page 8: Cu-09-Hp
017.0006.0007 PRESSURE SWITCH 016.5001.3042 SLEEVE HOSE ADAPTER FOR RUBBER HOSE d= 10 mm F= 1/4 M 010.0000.0094 "T" SLEEVE HOSE ADAPTER FOR RUBBER HOSE d= 8 mm 003.0004.0026 PUMP CU-09 003.0004.0030 PUMP CU-09-HP 041.0006.0008 AUXILIARY TRANSFORMER 011.0012.0106 TANK FIXING PLATE 016.0201.0624... -
Page 9: Cu-09F
CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F 4.2 CU-09F 9/16... - Page 10 KIT RACCORDO POMPA (A) 017.0006.0008 FLUXMETER FLUSSOSTATO 040.0007.1160 FUSE 1,6A 500V FUSIBILE 1,6A 500V 011.0012.0107 CLAMPING PLATE LAMIERA LATERALE FISSAGGIO 003.0004.0026 PUMP CU-09 POMPA CU-09 041.0006.0008 AUXILIARY TRANSFORMER TRASFORMATORE AUSILIARIO 011.0012.0106 TANK FIXING PLATE LAMIERA FISSAGGIO TANICA 016.0201.0624 FOOT PIEDE 011.0012.0100...
- Page 11 CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F N° CODE DESCRIPTION 003.0004.0017 PUMP BODY ¼ GAS 003.0004.0018 IMPELLER 003.0004.0019 SEAL BODY 003.0004.0020 SEAL SEEGER 003.0004.0008 COVER FAN 003.0004.0007 003.0004.0021 MECHANICAL COMPLETE SEAL 003.0004.0023 BODY O-RING 003.0004.0022 SHAFT KEY 11/16...
- Page 12 CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F COUPLINGS KIT ALREADY ASSEMBLED 010.0000.0067 PRESSURE SWITCH CONNECTOR KIT 010.0000.0069 PRESSURE SWITCH PIPE DOUBLE CONNECTOR KIT 010.0000.0070 PUMP UPPER CONNECTION KIT (A) 010.0000.0071 PUMP LOWER CONNECTION KIT (B) 12/16...
-
Page 13: Electrical Diagram
CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F ELECTRICAL DIAGRAM 13/16... - Page 14 CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F 14/16...
- Page 15 CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F 15/16...
- Page 16 CU-09 Cod.006.0001.1660 CU-09-HP 12/12/2019 v2.7 ENGLISH CU-09F 16/16...
